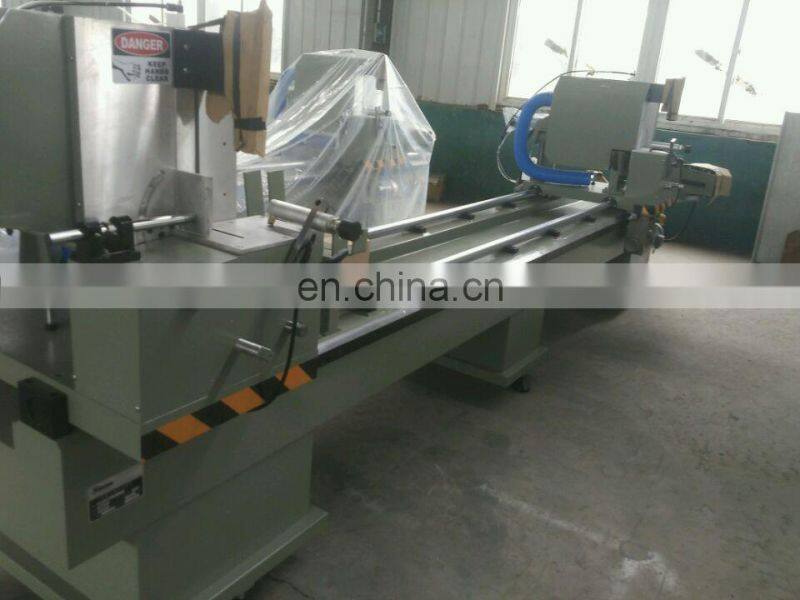

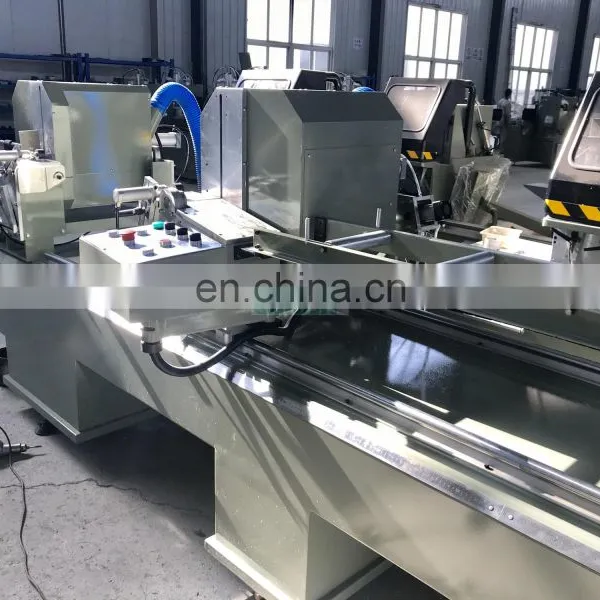

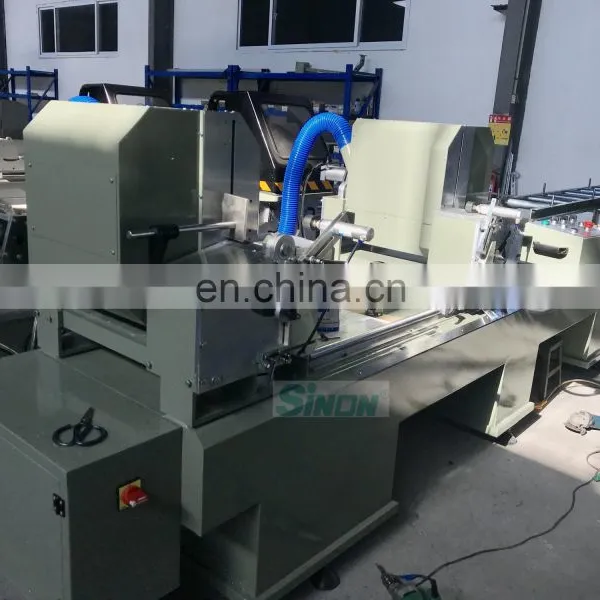

SSJ06-450X3700 China Good Quality UPVC Cutting Machine Double Head Cutting Saw
SSJ06-450x3700
Main purpose and scope:
SSJ06-450X3700 China Good Quality UPVC Cutting Machine Double Head Cutting Saw is suitable for cutting PVC and Aluminum profiles.
Features:
- Angle range :45º,90º,135º,angle adjusting roted by manual.
- The movable saw head is moved by motor drive,easy and convenient operation.
- Saw blade rotates smoothly due to high accurate main spindle box,steady running with high precision.
- Install the mullion cutting device,more convenient and accurate.
- Dust collector is optional according to customer's requirement.
Optional:
- PVC Window Door Middle Mullion Cutting Saw.SJT03-420
- Double-head Cuting Saw for Aluminum Profile.SSJ07-450x3600
Technical Specifications
Power supply |
380V 50Hz |
Total power for motor |
2x1.5Mpa |
Motor rotary speed |
2800r/min |
Air working pressure |
0.5~0.8MPa |
Cutter feeding speed |
0~3m/min |
Cutting profile surface roughness |
Ra12.5μm |
Contour dimension(LxHxW) |
4500x1200x1500mm |
Weight |
1000kg |
Blade specification |
Φ450mmxΦ30mm |
Cutting lenght |
Max 3700mm Min 450mm |
|
Cutting height |
45ºMax 165mm 90ºMax 200mm |
|
Cutting angle |
45º 90º |
|
Cutting profile surface plane |
≤0.15mm |

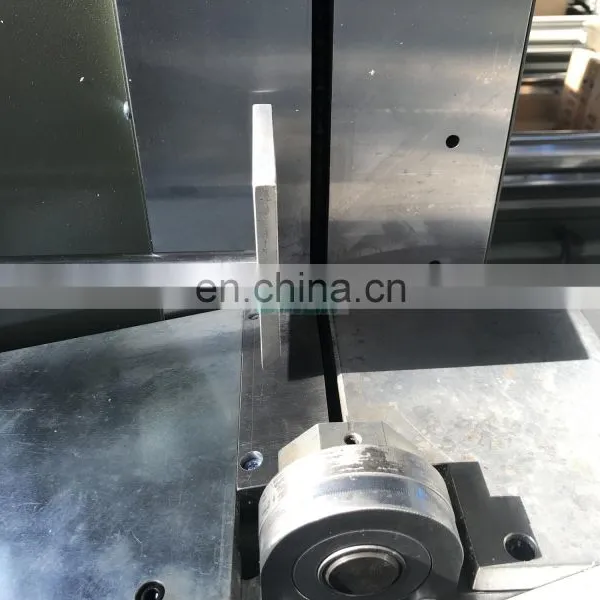

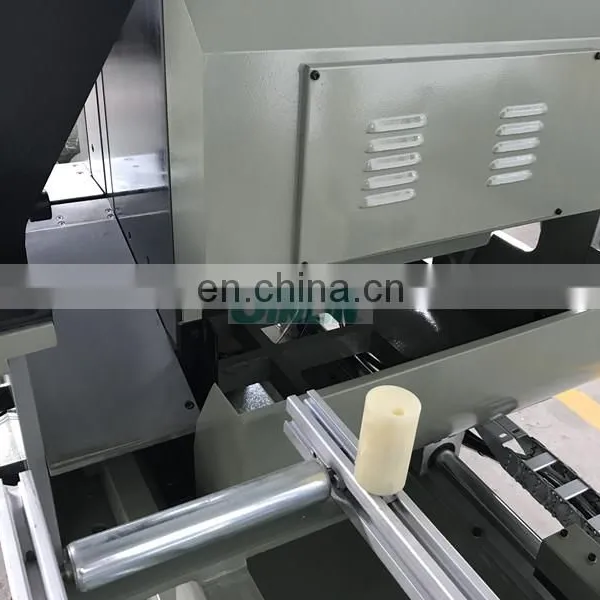

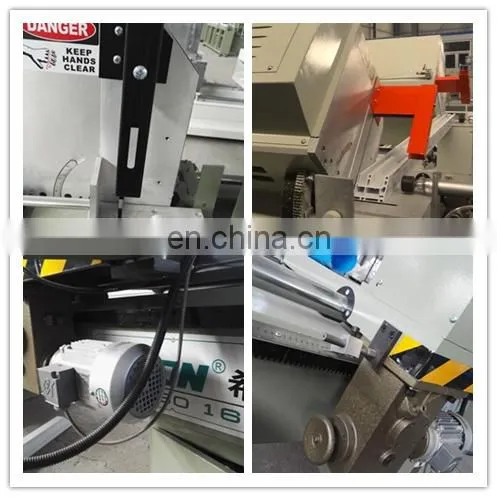

Detail Display:
Equipment Layout:
1. Sinon SSJ07-450*3600 (SSJ06-3700) Double-head cutting saw
2. Sinon LJVW-60 PVC window V-cutting machine (End milling machine)
3. Sinon SJT02-350 PVC window mid-mullion cutting saw
4. Sinon SCX03-3*60 Automatic 3-axis water slot milling machine
5. Sinon SSK02-100 (LSKC03-120) Lock-hole processing machine
6. Sinon HJ02-4500*4/4*A 4-head welding machine
7. Sinon JQK04-CNC-120 PVC corner cleaning machine
8. Sinon SQJ05-120 PVC window V-corner cleaning machine
The Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United Safety certification,the products are exported to Russia.Romania.the Czech republic,Australia,Britain,India and other 20 countries and regions .Export turnover accounted for the proportion of company in the future development direction,we warmly welcome all customers come to jinan,can come to sinon company to visit,negotiate and cooperate.
- Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
. Free Factory electrical Road layout and site installation instructions
- Middle-sales Service:
. Free installation, commissioning equipment
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
- After-sales Service:
. Equipment 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Key areas provide 24-hour instant service
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
FAQ
-
Q1: Are you trading company or manufacturer ?
A1: We are factory . We are a leader in aluminum window machine manufacturing for 20 years in China. -
Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. -
Q3: How does your factory do regarding quality control?
A3:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out. -
Q4. What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment. -
Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Deposit must be TT ,balance could accept 100% irrevocable L/C at sight . -
Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need. Q7: If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner crimping machine
6).Punching machine-
Q8:If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2).Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V cutting machine / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
