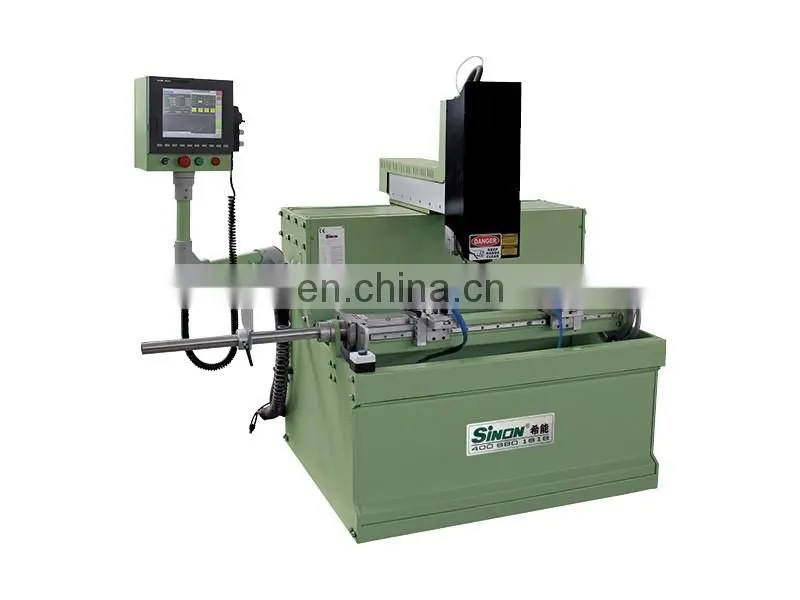

Small Type CNC Center Aluminum PVC Profile Window Milling Machine
CNC Milling Center
Equipment Features
1.The machine can mill and engrave all kinds of aluminum profiles hole, slot and notch.
2. Intelligent control system, system settings, graphics libraries and "fool" the user interface, easy to learn. After only need to select the shape of the hole during the milling process input processing size can be.
3. Aircraft configuration on the knife, the length of the replacement tool cutter knife through the system automatically interpolated correction tool saves time, but also improve work efficiency.
4. Italian high-power high-speed HSD-Spindle, reliable, stable rotation, low noise, high milling capacity.
5. Enables three-axis interpolation and two axes.
6. Table can be rotated -90 degrees, 0 degrees, 90 degrees positions conversion, a fixture can be completed in three surface milling.
7. High-precision linear guides, ball screw, rack and pinion and imported servo motor to ensure smooth motion, with high positioning and machining accuracy.
8. Japan imported spray cooling system for cooling the tool to improve tool life and the roughness of the workpiece.
9. Phase sequence protection devices: phase failure, which can effectively protect the device when connected to the wrong phase sequence.
10. electric device from famous world brands.
11.Optional : Automatic tool changing with Tool magazine
12.Optional : Servo motor for turning table, achieve arbitrary degrees position between + 90 ~ -90 degrees.
Technical Specifications of CNC Center Aluminum PVC Profile Window Milling Machine | |
X-way range |
1000mm |
Y-way range |
300mm |
Z-way range |
300MM |
X-way speed |
0-90m/min |
Y-way speed |
0-60m/min |
Z-way speed |
0-60m/min |
Motor rotary speed |
24000 r/min |
worktable work position |
-90, 0,+90 degree |
Input power source |
380V/50Hz (customer required ) |
Total power |
5.0kw |
Spindle power |
3.0kw |
dimension |
1500*1000*1800mm |
Weight |
800kg |
Main Accessory | |
Spindle |
HSD, Italy |
AC Contacter and Breaker |
Schneider, France |

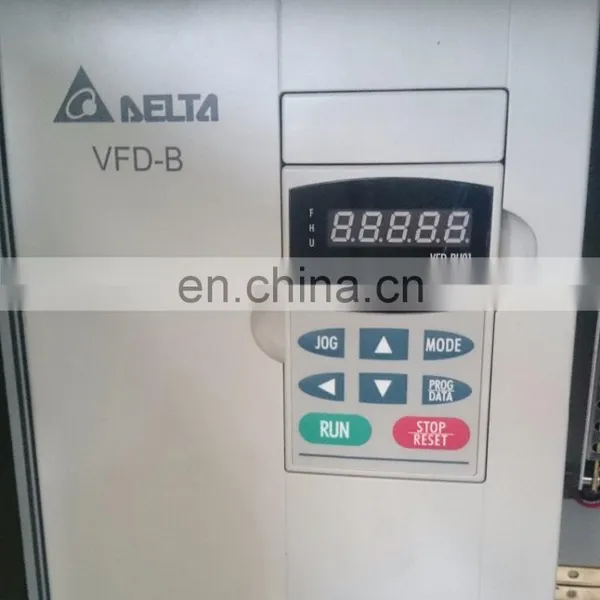

Variable Frequency Drive |
Delta ,Taiwan |
PLC control system |
SYNTEC, Taiwan |
Linear guide and Ball Screw |
HIWIN, Taiwan |
Pneumatic component |
Festo, Germany |
Related Machines for PVC Window Making
Double Head Cutting Saw Four Head Welding Machine CNC Vertical Four Corner Welding
CNC Corner Cleaning Machine Lock Hole Milling Machine CNC Precision Cutting Saw
Small Type CNC Center Aluminum PVC Profile Window Milling Machine
1. detailed and professional User Manual and operation video
2. one year warranty since B/L issued,lifetime maintenance
3. our engineers could provide service overseas for installation,test and training
4. 24h service online by E-mail, calling ,social media ,video call
5. broken parts can be changed quickly, some parts can sent FREE within one year
6. Return visit for free maintenance.
Jinan SINON CNC Machine Co., LTD
is China's well-known UPVC/Aluminum Window Door equipment manufacturer. is one of the most professional company in the industry. SINON was founded in 2003, has more than 10 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,
around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china’s first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.
Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,
Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.
Small Type CNC Center Aluminum PVC Profile Window Milling Machine
1. Are you a trading company or a factory?
Factory and Trade ( integration)
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2). Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner combining machine
6).Punching hole machine
5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
