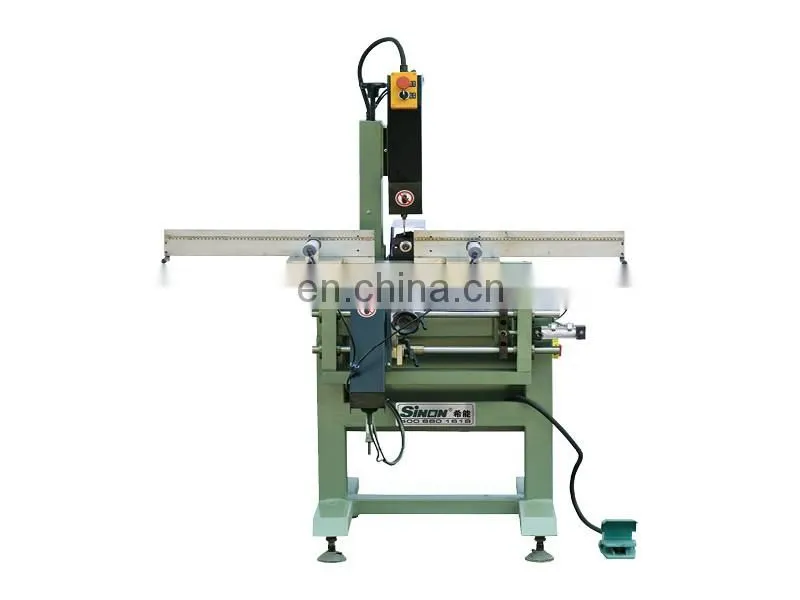

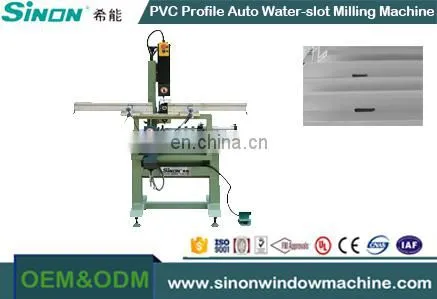

PVC window water slot routing machine PVC window door making machine
Product Features
1. Professional use in milling the water slot and the balanced holes of air pressure of win-door in PVC profile.
2. Adopt the modularization structure design, there are three milling heads which can be freely selected working in individually or combinatively, is easy to operate.
3. The adjustment up and down/front and back of No. 1 and 2 machine head via by the screw. The adjustment easy and convenience.
4. The No. 3 machine head not only can adjust the angle, but also can moves left and right. It not only can process the water slot holes in 45 degree, but also can ensure the position of the water slot is symmetrical.
5. It can processing symmetrical water slots and air pressure holes at the two ends of one piece of profile via by 1, 2 machine head work with 3 head combining working.
Technical Specifications
| Power supply | 380V 50Hz |
| Total power for motor | 2.2KW |
| Motor's rotation speed | 25000r/min |
| Air working pressure | 0.5-0.8MPa |
| Diameter of milling cutter | 5*50mm/5*75mm |
| Cutter feeding speed | 0-3m/min |
| Max. milling depth | 30mm |
| Milling Width | 4-5mm |
| Milling length | 0-60mm |
| Weight | 200kg |
Details display
