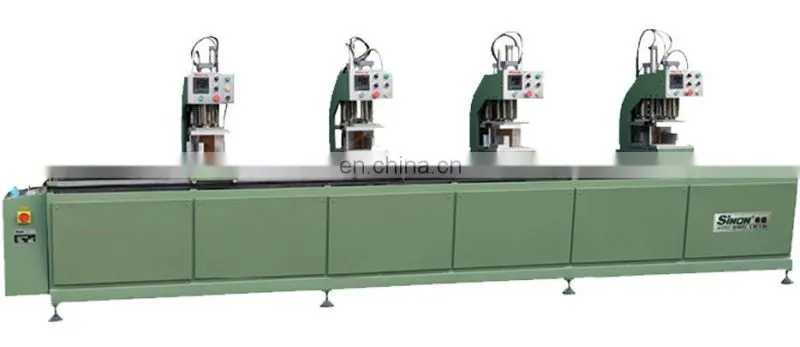

PVC Window Machine Four Head Welding Machine Window Making Machine
US$ 3,885 - 4,591
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINON
Model Number:
HJ02-4500*4/4*A
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdoao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Four Head UPVC Windows and Door Welding EquipmentUS$ 2,900 - 4,600MOQ: 1 Set -
Production of 20 Upvc Windows per Day Upvc Profiles Cutting MachineUS$ 3,100 - 4,600MOQ: 1 Set
-
Single Head Variable Angle Welding Machine UPVC Window Manufacturing MachineUS$ 2,600 - 4,300MOQ: 1 Set
-
Double Head High Efficiency Welding Machine for PVC Window Frames UsedUS$ 2,600 - 4,300MOQ: 1 Set
-
Four Head UPVC Colorful Windows and Door Welding EquipmentUS$ 4,600 - 8,900MOQ: 1 Set
Brand Name
SINON
Model Number
HJ02-4500*4/4*A
Details
Features:
- Suitable for welding PVC profile. It also can weld normal white profile by change the special clamper
- Adopt programmable controller (PLC) ensures the machine running more steady and reliable.
- Double pressing function ensures higher welding strength.
- The pressure of front and back clamer is adjustable separately, so as to improve the planeness of the welding corner
- The heads can be used individually, combinatively or jointly as well as be combined as will.
- No. 2,3,4 head can horizontal moving so that realized all kinds of welding combination.
- The fourth head can be used for welding variable angle with the special mold and the angle range from 30°~180°.
- Professional mold configuration, can provide the design for different profiles ensure the welding quality. (optional)
- Welding seam is about 0.10-0.15mm. The welding effect much better for the laminate layer thickness>0.25mm color pvc profile (seamless model)
Optional:
- 3-head (HJ02-3500*3*3*A) 2-head (HJ020-3500*2/2*A)
- Seamless model 4-head(HJ06-4500*4/4*A) 3-head(HJ063500*3*3*A) 2-head (HJ06-3500*2/2*A)
- Higher welding plate type
- Round guide type
Technical Specifications
Model |
Four-head |
Three-head |
Two-head |
Input power source |
380V/50Hz |
220V/50Hz |
|
Total power |
4.5Kw |
3.5Kw |
2.5Kw |
Working air pressure |
0.5~0.8MPa |
||
Air consumption |
200L/min |
150 L/min |
100 L/min |
Height of welded profile |
20-120mm 20-170mm(optional) |
||
Width of welded profile |
0-120mm |
||
Welded range |
400-4500mm |
400-3500mm |
|
Dimension |
5400×1100×1650mm |
4400*1100*1650mm |
|
Weight |
1500kg |
1300Kg |
1100Kg |
