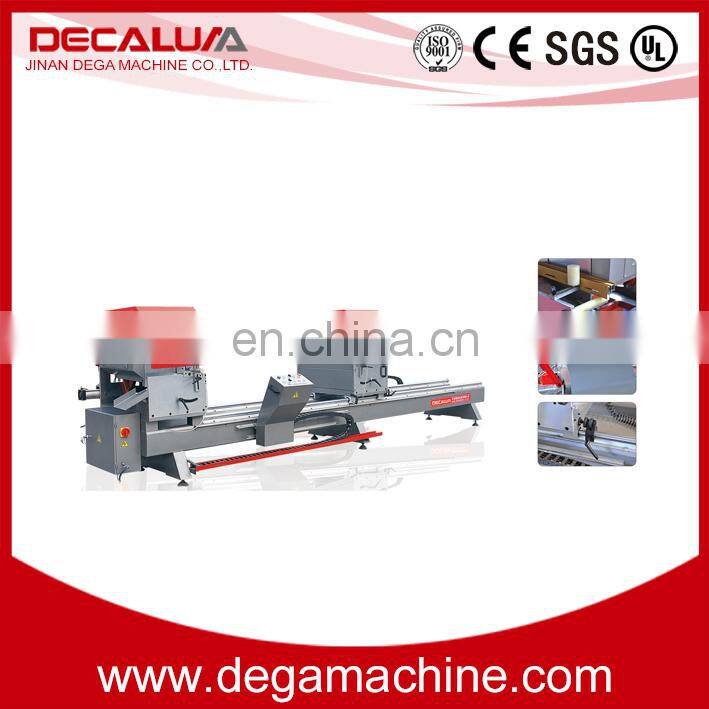

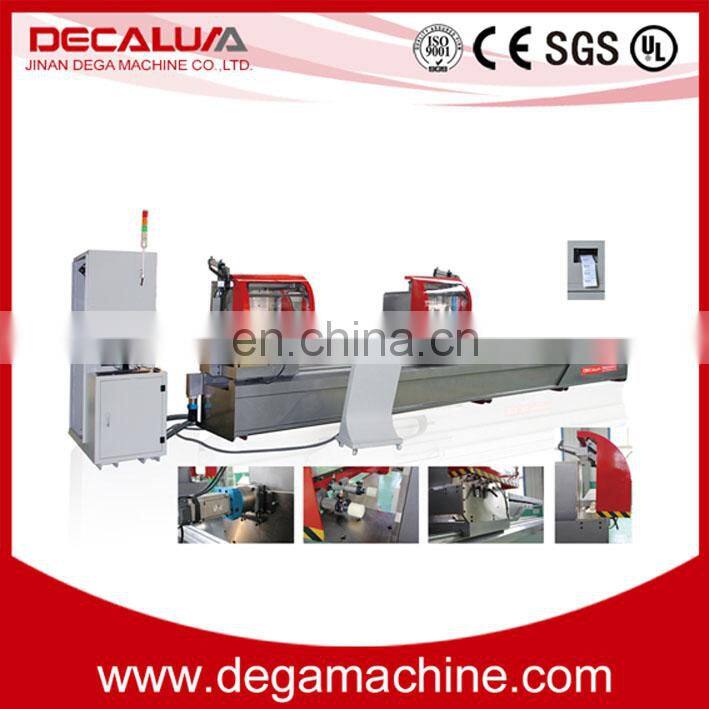

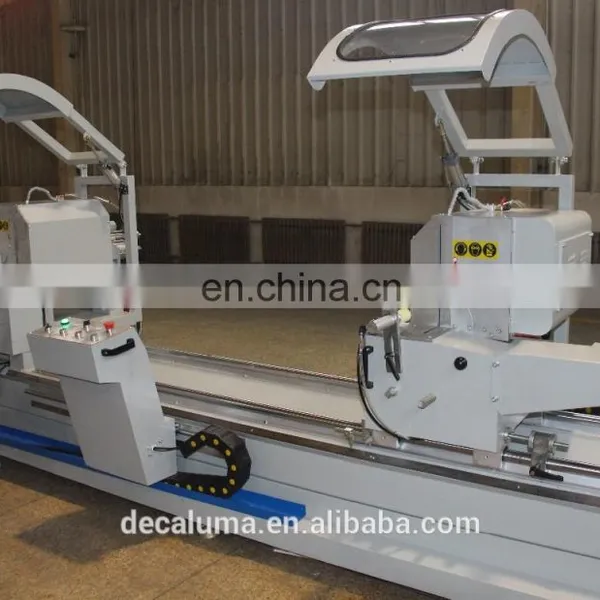

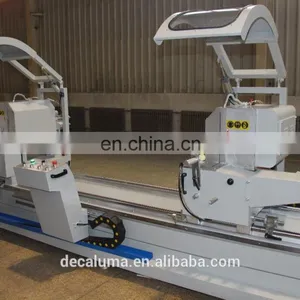

Fast Speed Aluminum Window Cutting Machine Double Head Cut off Saw
LJZ2-450X3700
Main Function >> DECALUMA
1. This machine is applicable for cutting aluminum and PVC profile
2. at the angles of -45°, +45°, 90°.

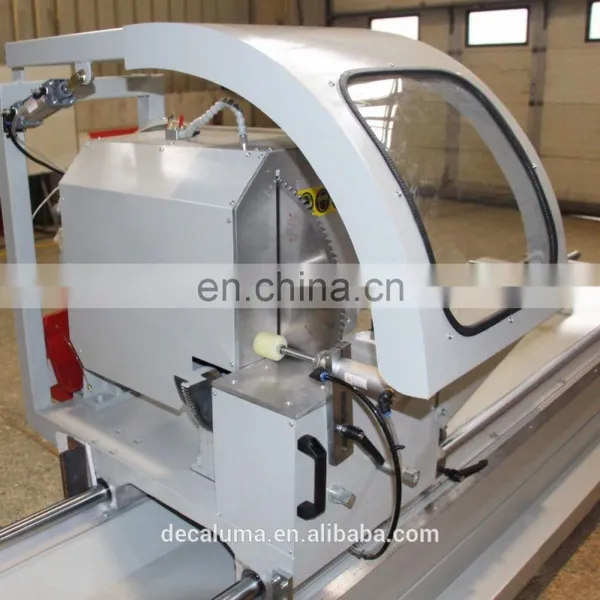

3. Its carbide cutters are directly fixed on motor shafts and can swing freely to meet processing demand, which give the machine high cutting speed and accuracy.
4. The two sawing units can cut profiles simultaneously and separately,the saw blade can swing to required angle.
Technical Parameter >> DECALUMA
Power supply |
Made to order |
motor power |
3kW(1.5kW*2) |
Spindle Rotary Speed |
2800 r/min |
Operation air pressure |
0.5~0.8MPa |
Air consumption |
200L/min |
Max.Cutting length |
3700mm |
Min.Cutting length |
580mm(double-head) |
Cutting width |
120mm |
Cutting height |
150mm |
Cutting angle |
22.5° 45°And 90° |
Cutter feeding speed |
0~3 m/min Stepless speed regulating |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Saw blade specification |
φ450mm×3.2mm×φ40mm Z=80 |
Dimension |
4500*1300*1450mm |
Weight |
1600kg |
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
Packaging and Shipping >> DECALUMA
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
Our Service >> DECALUMA
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Profile >> DECALUMA
JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
Certificate >> DECALUMA
Quality Check >> DECALUMA
On the Exhibition >> DECALUMA
Cooperative Partner >> DECALUMA
imported qualified accessories:
Simens
Omron
AieTEC
Seimec
NSK
ABBA
Schneider
FAQ >> DECALUMA
1 Which equipment does a new door and window factory need?
1).double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
manufacturer(OEM)
