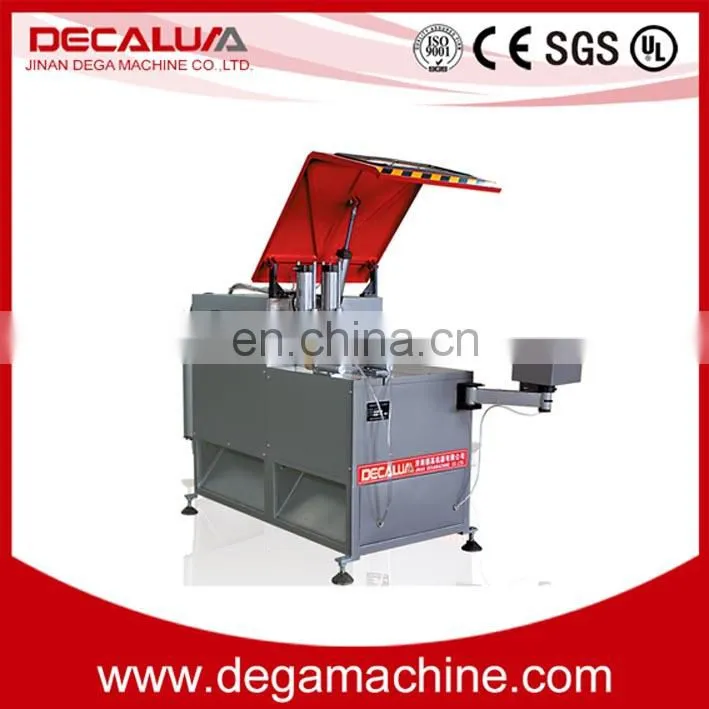

Welcomed Aluminum Curtain Wall Single Head Arbitrary Angle Cutting Saw Machine
LJZB-400
Main Function >> DECALUMA
l Used for curtain wall and window of aluminum accurate cutting ,also for UPVC profile.
l Single head any angle cutting saw with the carbide saw blade, which make sure the high speed and accurate cutting.
l This machine can be installed the size positioning frame, also can add digital display device according to your requirement, thus can make the locating size more accurate.
l The workbench rotating between the left (-15 °)~90°~(+15°). after the plate retrocession, the workbench can be 0°positioning, then raise and fix the saw blade thus this machine can be used as Routing saw.
Technical Parameter >> DECALUMA
Power supply |
380V 50Hz,three phase |
Motor power |
1.5Kw |
Air pressure |
0.5~0.8MPa |
Air consumption |
30L/min |
Motor rotation speed |
2840r/min |
Blade feeding speed |
stepless timing 0~3m/min |
Cutting angle |
(-15°) ~90°~(+15°) |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Cutting width |
165mm,90°MAX |
Cutting height |
120mm,90°,MAX |
Saw blade specification |
φ400mm×3.5mm×φ30mm Z=80 |
Overall dimension |
850*1100*1500mm |
Weight |
300Kg |
Processing Accuracy >> DECALUMA
Repeat locating ≤0.2mm
Cutting angle allowance ±5'
Cutting profile surface planeness ≤0.10mm
Cutting profile surface roughness Ra12.5µm
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).

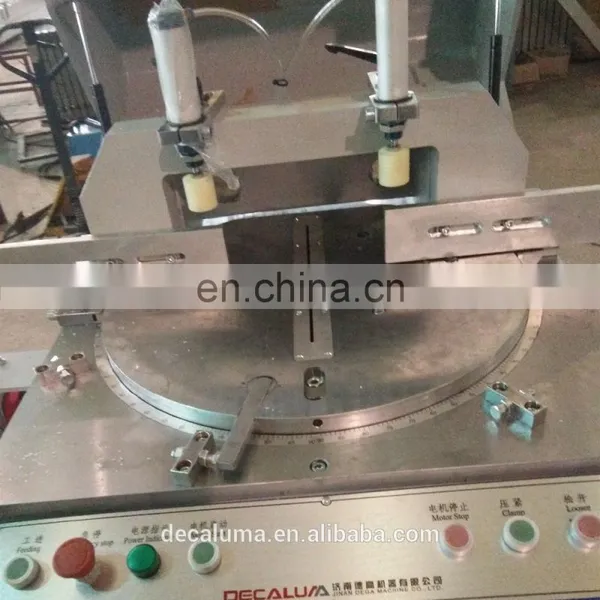

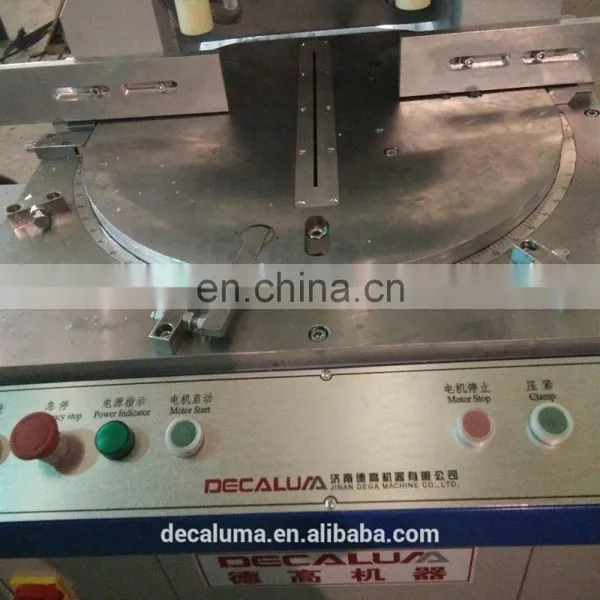

Detailed Product Images:
Packaging and Shipping >> DECALUMA
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
Our Service >> DECALUMA
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Profile >> DECALUMA
JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
Certificate >> DECALUMA
Quality Check >> DECALUMA
On the Exhibition >> DECALUMA
Cooperative Partner >> DECALUMA
imported qualified accessories:
Simens
Omron
AieTEC
Seimec
NSK
ABBA
Schneider
FAQ >> DECALUMA
1 Which equipment does a new door and window factory need?
1).double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
manufacturer(OEM)
