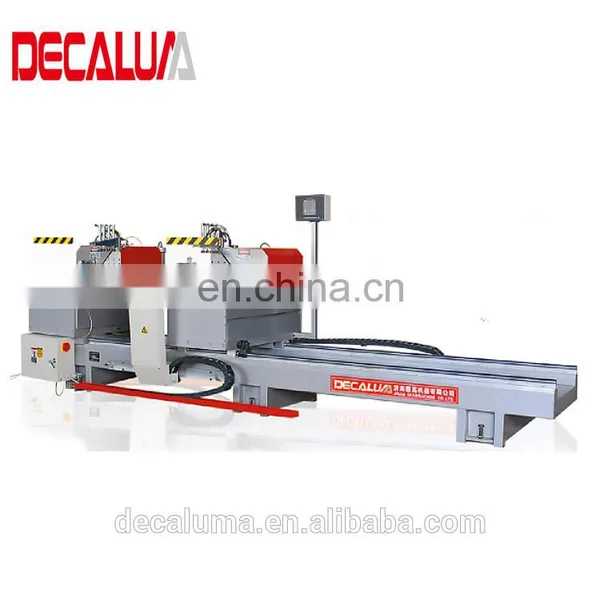

Made in China 45 Degrees Aluminum Profile Cutting Machine
LJZ2C-450*3600
Main Function >> DECALUMA
1. Used for aluminum profile 45° angle cutting.
2. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing moving parts ensure a smooth cutting head moving.
4. Imported carbide saw ensures Stable and high quality cutting.
5. Right head moving is driven by motor.
6. Hydro-pneumatic driving system gives stable feeding.
7. Especially for 45° angle cutting and large capacity of 4 profiles cut in one cycle.
8. It has the features of easy operation,reliable performance,advanced technique and convenient maintenance.
Technical Parameter >> DECALUMA
Power supply |
Made to order |
Motor power |
2*1.5KW |
Motor rotary speed |
3400r/min |
Operation air pressure |
0.5~0.8Mpa |
Air consumption |
200L/min |
Cutting length |
450~3600mm |
Cutting width |
Max 95mm |
Cutting Height |
Max. 480mm |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Cutting angle |
45° |
Feeding speed |
Stepless timing 0~3m/min |
Saw blade specification |
Φ450mm×3.5mm×φ30mm Z=80 |
Dimension |
4600*1500*1500mm |
Weight |
1700kg |
Processing Accuracy >> DECALUMA
Repeat locating ≤0.2mm
Cutting angle allowance ±5'
Cutting profile surface planeness ≤0.10mm
Cutting profile surface roughness Ra12.5µm
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).

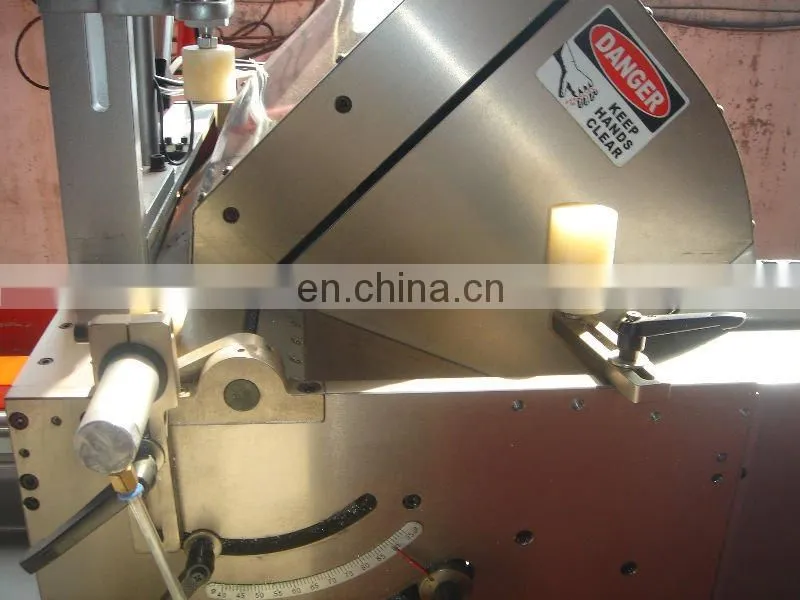

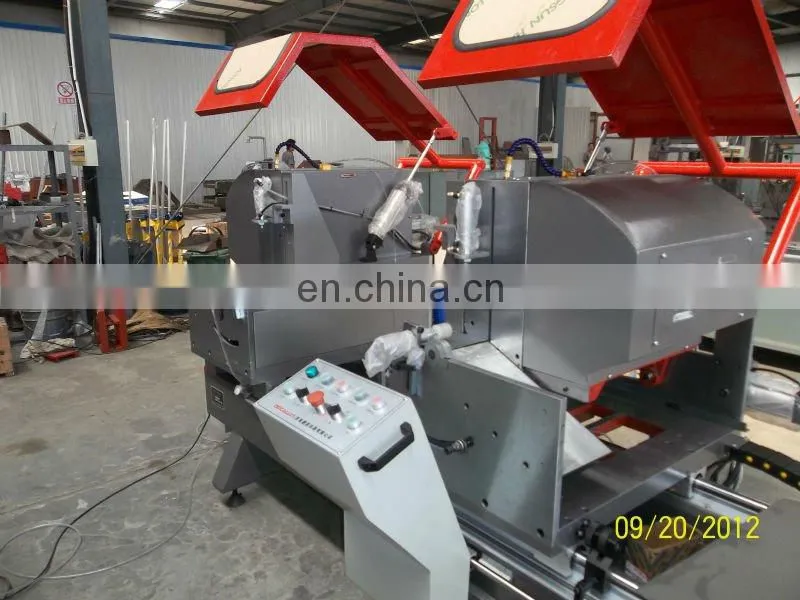

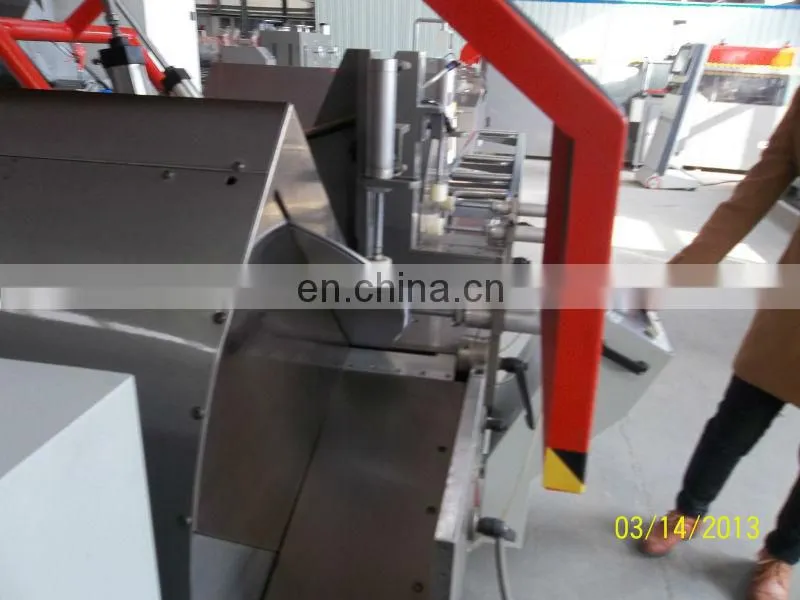

Detailed Product Pictures:
Packaging and Shipping >> DECALUMA
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
Our Service >> DECALUMA
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Profile >> DECALUMA
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
Certificate >> DECALUMA
Quality Check >> DECALUMA

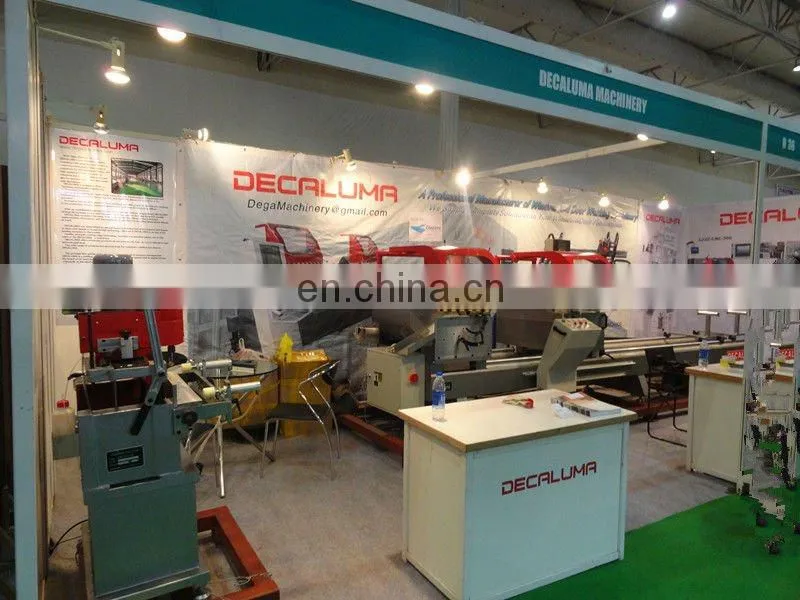

On the Exhibition >> DECALUMA
Customer Visit DECALUMA
Cooperative Partner >> DECALUMA
FAQ >> DECALUMA
1 Which equipment does a new door and window factory need?
1).Double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
MOQ |
1 Set |
Payment |
TT or L/C |
Supply capacity |
40 set/month |
Production time |
5 days after confirm order |
Packing |
As request |
Shipment |
By sea |
