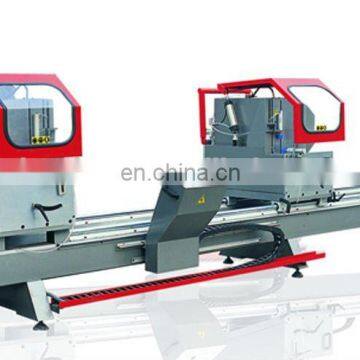

2016 China Rigid Aluminum Window Machine Angle Saw Cutting Machines
LJZ2-500*4200A
Main Function >> DECALUMA
1. Used for Aluminum window and door and Curtain-wall accurate Cutting
2. Accurate cutting ensures a high accurate re-load position and convenient man operation work.
3. Moving motor head and carbide saw blade all adopt linear bearing system , which ensures accurate machine running and cutting, and stable performance.
4. High Precision Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
5. Automatic angle cutting can be changed in 22.5°(alternative) 45° and 90°.
6. Carbide saw blade for a high quality cutting and life.
7. Safety system of shield can ensure the safe operation of man working.
Technical Parameter >> DECALUMA
Power supply |
Made to order |
Motor power |
2*2.2KW |
Motor rotary speed |
3400r/min |
Operation air pressure |
0.5~0.8Mpa |
Cutting length |
400~4200mm |
Air consumption |
200L/min |
Cutting height max |
300mm*90°;200mm*45° |
Cutting width |
max 125mm |
Cutting angle |
90°,45° |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Feeding speed |
Stepless timing 0~3m/min |
Saw blade specification |
φ500mm×4.4mm×φ30mm Z=120 |
Dimension |
5530*1750*1950mm |
Weight |
1850kg |
Processing Accuracy >> DECALUMA
Repeat locating ≤0.2mm
Cutting angle allowance ±5'
Cutting profile surface planeness ≤0.10mm
Cutting profile surface roughness Ra12.5µm
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
Packaging and Shipping >> DECALUMA
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
Our Service >> DECALUMA
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Profile >> DECALUMA

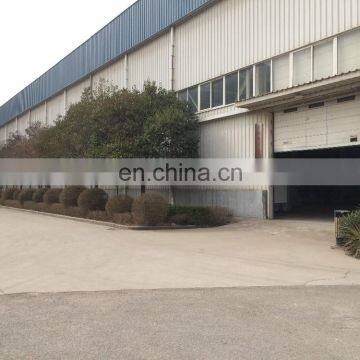

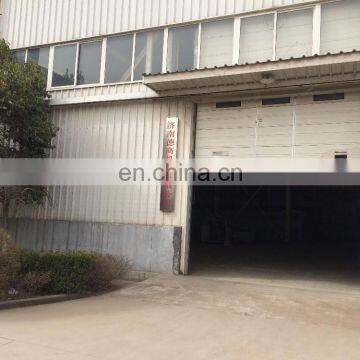

JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
Certificate >> DECALUMA
Quality Check >> DECALUMA
On the Exhibition >> DECALUMA
Cooperative Partner >> DECALUMA
imported qualified accessories:
Simens
Omron
AieTEC
Seimec
NSK
ABBA
Schneider
Company Name |
JINAN DEGA MACHINE CO.,LTD |
Year established |
2006 |
Address |
West end of Century Avenue, High-tech Zone,Jinan city 250101, China |
Business type |
Manufacturer |
|
Product range |
CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage |
Using advanced solidworks design platform |
Management certificate |
ISO9001,national patent |
Fair we attend |
Shanghai and Beijing international windows show |
E-catalog |
available |
MOQ |
1 set |
Payment terms |
TT or L/C |
Shipping port |
Qingdao port |
FAQ >> DECALUMA
1 Which equipment does a new door and window factory need?
1).double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
manufacturer(OEM)
