Window Machine Aluminum CNC 3 axis Double Head Mitre Saw
- 30 Set / Sets per Month
- Qingdao port
- T/T Credit Card
- DECALUMA Aluminum Profile Display Double Head Cutting Saw Machine
- Aluminum CNC Double Mitre Saw
- Made in China 45 Degrees Aluminum Profile Cutting Machine
- Quick Cut Saw Aluminum Any Angle Saw Cutting Machine
- Aluminum Saws Machine Digital Cutting Saw Machine
- 45 Degrees Aluminum Frame Quick Cut off Saw
Product Details
Brand Name: | decaluma | Model Number: | LJZ3J-CNC-500x5000 |
Product Description

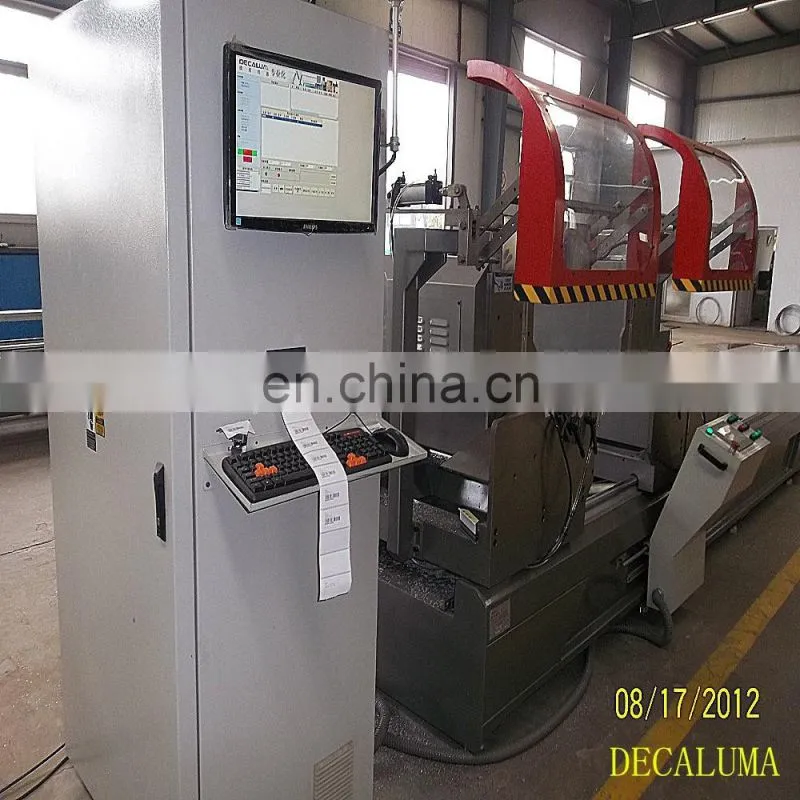

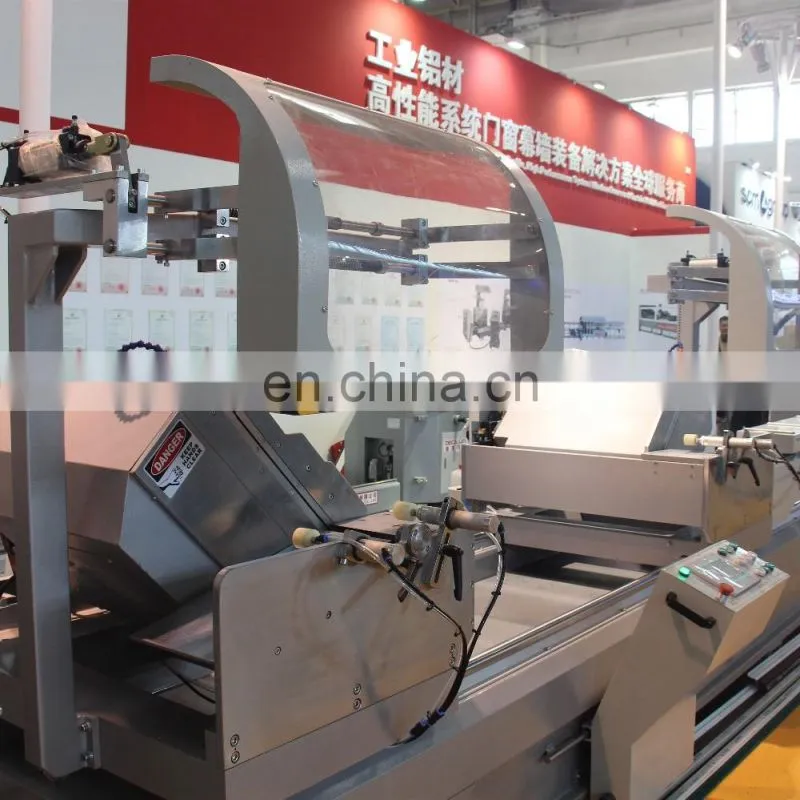

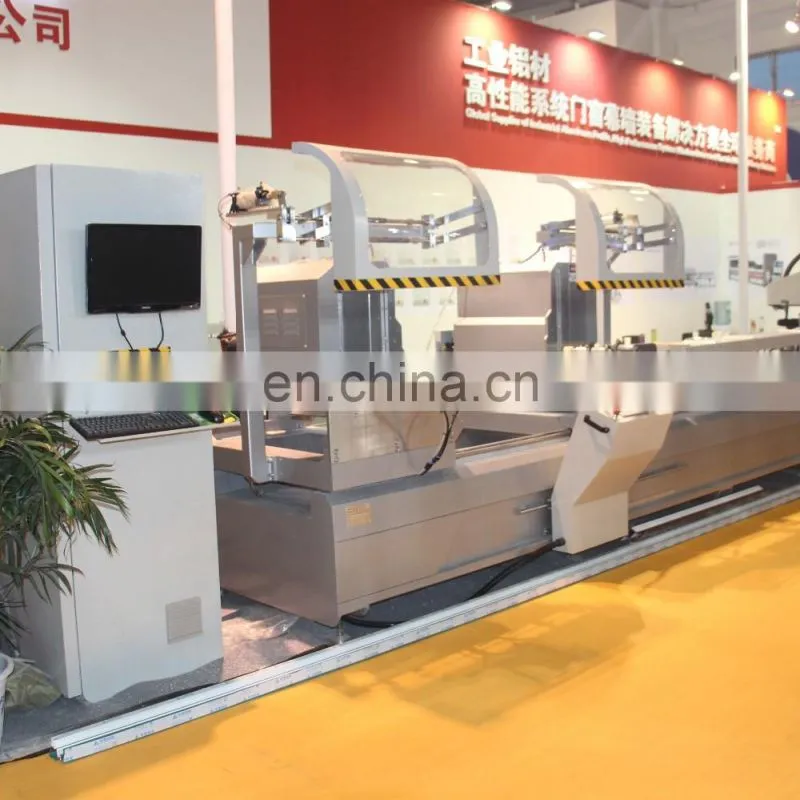

Best Aluminum Extrusion and Curtain wall CNC 3 axis Double Head Mitre Saw
LJZ3J-CNC-500x5000
1. Computer Integrated cutting saw, Used for Aluminum and Curtain-wall profile accurate and efficient cutting.
2. Accurate cutting ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
4. Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
5. Cutting length is controlled by computer control system to locate fast and precisely.
6. The machine connected with computer, downloaded software to create processing digital, finished CAD/CAPP/CAM.
7. Short profile cutting device apply, min. cutting size 150mm and Auto profile supporter available.
8. Automatic angle cutting can be changed in 45° and 90°.
9. Carbide saw blade for a high quality cutting and life.
10.Safety system of shield can ensure the safe operation of man working.
Power supply | Made to order |
Motor power | 2*2.2KW+3KW |
Motor rotary speed | 3400r/min |
Operation air pressure | 0.5~0.8Mpa |
Air consumption | 200L/min |
Cutting length | 200~4200mm |
Cutting height max | 300mm×90°;200mm×45° |
Cutting width | max 125mm |
Cutting angle | 90°,45°, arbitrary adjusting available |
Feeding speed | Stepless timing 0~3m/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Dimension | 5530mm×1750mm×1950mm |
Weight | 1850kg |
Note:
If you want to know more about our machine video and operation process, welcome to log in YOUTUBE and search DECALUMA (our brand logo).
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
