Product Details
Brand Name: | DECALUMA | Model Number: | LJZ2-450X3700 |
Product Description

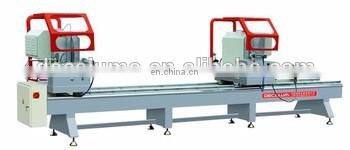

PVC and Aluminum Window Door Cutting Machine
Main Function:
1. This machine is applicable for cutting aluminum and PVC profile
2. at the angles of -45°, +45°, 90°.
3. Its carbide cutters are directly fixed on motor shafts and can swing freely to meet processing demand, which give the machine high cutting speed and accuracy.
4. The two sawing units can cut profiles simultaneously and separately,the saw blade can swing to required angle.
Technical parameter:
Made to order | |
motor power | 3kW(1.5kW*2) |
Spindle Rotary Speed | 2800 r/min |
Operation air pressure | 0.5~0.8MPa |
Air consumption | 200L/min |
Max.Cutting length | 3700mm |
Min.Cutting length | 580mm(double-head) |
Cutting width | 120mm |
Cutting height | 150mm |
Cutting angle | 22.5° 45°And 90° |
Cutter feeding speed | 0~3 m/min Stepless speed regulating |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |

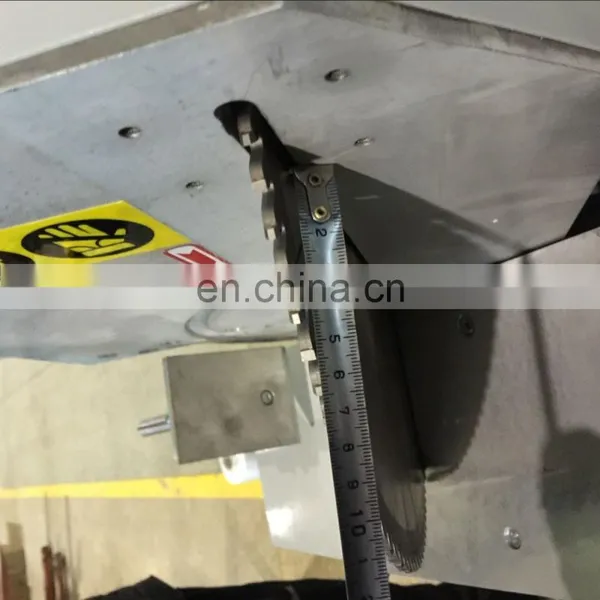

Saw blade specification | φ450mm×3.2mm×φ30mm Z=80 |
Dimension | 4500*1300*1450mm |
Weight | 1600kg |
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
