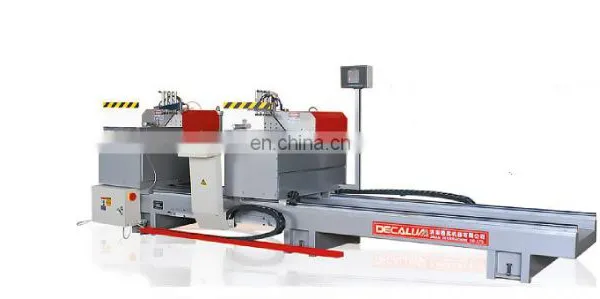

Aluminum Window Machine Double Head cutting Machine for 45 degree
LJZ2C-450*3600
Specification:
1. Used for aluminum profile 45° angle cutting.
2. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing moving parts ensure a smooth cutting head moving.
4. Imported carbide saw ensures Stable and high quality cutting.
5. Right head moving is driven by motor.
6. Hydro-pneumatic driving system gives stable feeding.
7. Especially for 45° angle cutting and large capacity of 4 profiles cut in one cycle.
8. It has the features of easy operation,reliable performance,advanced technique and convenient maintenance.
Technical parameter:
Power supply |
Made to order |
Motor power |
2*1.5KW |
Motor rotary speed |
3400r/min |
Operation air pressure |
0.5~0.8Mpa |
Air consumption |
200L/min |
Cutting length |
450~3600mm |
Cutting width |
Max 95mm |
Cutting Height |
Max. 480mm |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Cutting angle |
45° |
Feeding speed |
Stepless timing 0~3m/min |
Saw blade specification |
Φ450mm*3.5mm*φ30mm Z=80 |
Dimension |
4600*1500*1500mm |
Weight |
1700kg |
1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely.
2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.
1 Which equipment does a new door and window factory need?d
1).double head cutting saw,model:LJZ2-500*4200A
2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200
4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
