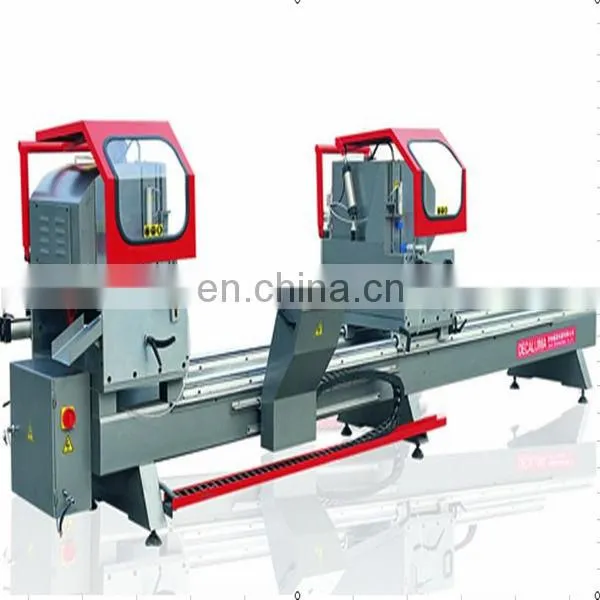

Double Head Angle Cut 45 degree Band Saw Machine for Aluminum Profile
Specification:
1. Used for aluminum profile 45° angle cutting.
2. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
3. Linear bearing moving parts ensure a smooth cutting head moving.
4. Imported carbide saw ensures Stable and high quality cutting.
5. Right head moving is driven by motor.
6. Hydro-pneumatic driving system gives stable feeding.
7. Especially for 45° angle cutting and large capacity of 4 profiles cut in one cycle.
8. It has the features of easy operation,reliable performance,advanced technique and convenient maintenance.
Technical parameter:
Power supply |
Made to order |
Motor power |
2*1.5KW |
Motor rotary speed |
3400r/min |
Operation air pressure |
0.5~0.8Mpa |
Air consumption |
200L/min |
Cutting length |
450~3600mm |
Cutting width |
Max 95mm |
Cutting Height |
Max. 480mm |
Cutting profile surface plane |
≤0.10mm |
Cutting angle tolerance |
Ra12.5 μm |
Cutting angle |
45° |
Feeding speed |
Stepless timing 0~3m/min |
Saw blade specification |
Φ450mm×3.5mm×φ30mm Z=80 |
Dimension |
4600*1500*1500mm |
Weight |
1700kg |
1.sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Objective: Meticulous design+ Precise processing+ Perfect assembly+ Accurate inspection+Excellent equipment-----Fine Quality Aluminum Window
JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province,China,which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine ,we have Export &Import right.
The company using advanced Solid Works design platform, we cooperate with the advanced company all around world to develop and design new products, and won the many of national patent. Jump out the Chinese equipment low-end image and get into high-end doors and windows market like Europe and America market, Now we are exporting to more than 20 countries and regions.
Certificates:
Company culture:
1 Which equipment does a new door and window factory need?

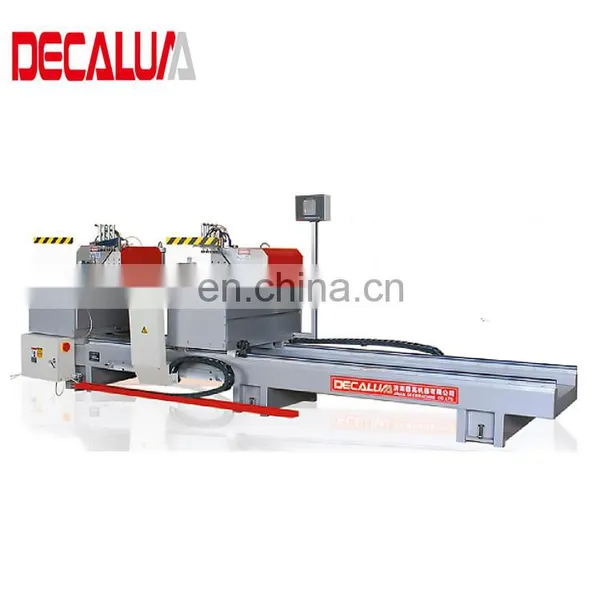

1).double head cutting saw,model:LJZ2-500*4200A

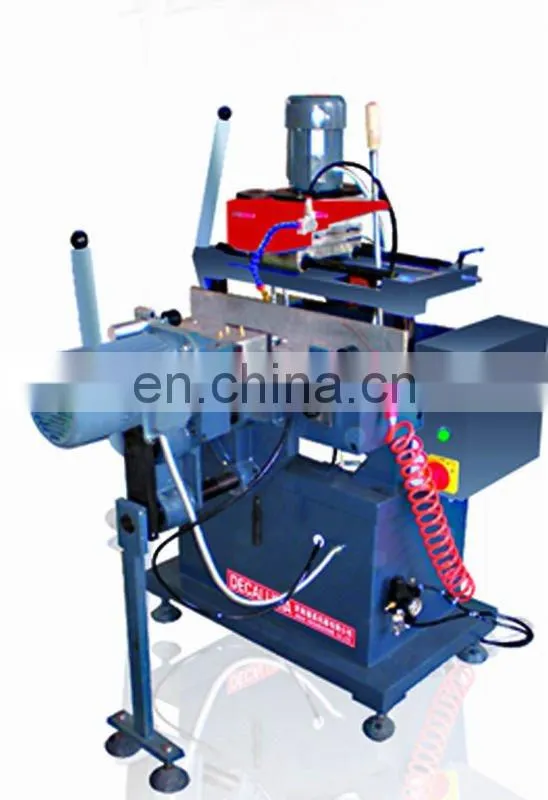

2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200

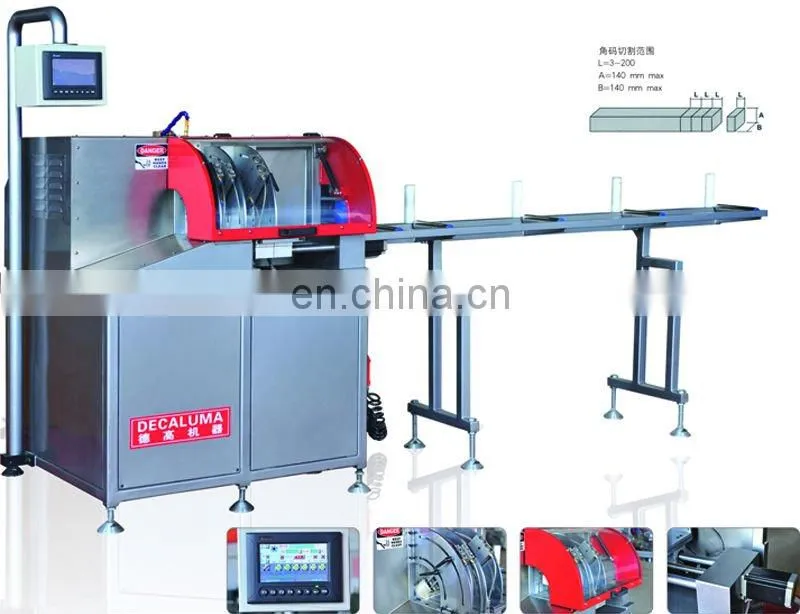

4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C

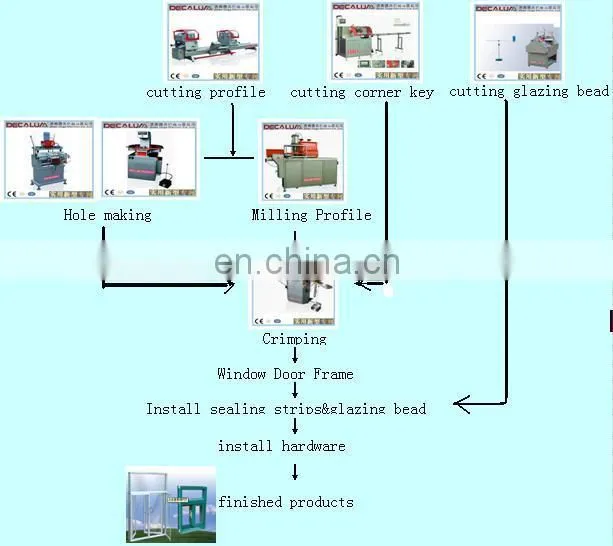

2 How to place an order and the production process?
