6 Heads High Speed Steel Pipe Polishing Machine
US$ 5.00 - 15.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chine Chern
Model Number:
JC-6LI2
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P-100 Stainless Steel Round Tube Polishing Machine With Auto Feeding FacilityUS$ 7,000 - 9,000MOQ: 1 Set -
P-100 Stainless Steel Elbow Polishing Machine With Sand Belt GrindingUS$ 7,000 - 9,000MOQ: 1 Set
-
P-100 Automatic Sand Belt Stainless Steel Pipe Tube Polishing MachineUS$ 9,000 - 9,000MOQ: 1
-
P-100 Automatic Grinding Belt Curved Pipe Polishing Machine for Max Stainless Steel Pipe 110mmUS$ 8,200 - 8,500MOQ: 1
-
P-100 Abrasive Belt Stainless Steel Curved Pipe Surface Sanding Polishing MachineUS$ 8,200 - 8,500MOQ: 1
Brand Name
Chine Chern
Model Number
JC-6LI2
6 Heads High Speed Steel Pipe Polishing Machine
Characteristics:
- Multiple stage round pipe polishing machine applied in stainless steel,carbon steel pipe,,aluminum , Iron pipe/bar for getting rid of rust on the surface.
- Competitive price with superior quality
- Equipped with dust cover,the security,the environmental protection.
- Flap wheel,Cloth wheel, Sisal wheel,Woolen wheel available .
parameters:
| Item | J-6LI2(Six -groups vertical polishing machine) | ||||||
| Input voltage | 3-phase 380V 50HZ | ||||||
| Input power | 14.7KW | ||||||
| Motor (4Groups) | 5.5KW | ||||||
| Fan motor | 2.5KW, 2800RPM | ||||||
| Feeding motor | 3KW | ||||||
| Polishing wheel bore diameter | 32mm | ||||||
| Grinding wheel O.D(mm) | 250mm-300mm | ||||||
| Guiding wheel O.D(mm) | 120mm | ||||||
| Grinding wheel speed(RPM) | 3200 | ||||||
| Guiding wheel speed(RPM) | adjustable | ||||||
| Process O.D(mm) | 10mm-200mm | ||||||
| Process length(mm) | 400mm-not limited | ||||||
| Coolant system | Optional | ||||||
| Work efficiency | 6000-180000mm/min | ||||||
| Weight(kg) | 1400 | ||||||
| Machine dimension | 2800×1100×1100mm | ||||||
| Finish | Ra 0.1 | ||||||
| Function: | Multiple stage round pipe polishing machine applied in stainless steel,carbon steel,aluminum , | ||||||
| Iron pipe/bar for getting rid of rust on the surface. | |||||||
| Specification:300×300×32mm | Diameter:300mm,Thickness:300mm,Bore diameter: 32mm | ||||||
Wheels:

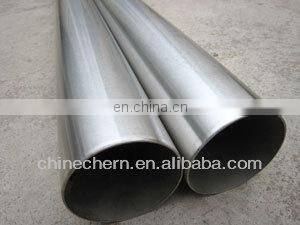

Samples:
