JC-38NC Hydraulic Single Head Stainless Steel Pipe Bending Machine
- 30 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
Product Details
Brand Name: | Chine Chern | Place of Origin: | Guangdong, China |
Product Description
1. Uses the microcomputer control, automatic bending
2. Safety: the emergency stop button on the bending arm
3. Personalized operation panel, easy to set up and operate
4. High pipe-bending precision up to ±0.15°
5. 1000 groups pipe-bending information storage, all angles work forms a coherent whole.
6. The mandrel automatically in and out, saving much time
7. Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc.
8. Can install auxiliary push die, low returning-core function, can bend thin pipes
9. Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc.
10.Minmum bending radius according to the tuber diameter
11.Maximum bending radius can be increased according to customers' option
12.Maximum core lenghth of wear can be increased according to customers' option
Parameters:
Model | JC-25/JC-25NC | JC-38/JC-38NC | JC-50/JC-50NC | JC-75/JC-75NC | JC-115NC |
Max Carbon steel tube O.D | 25×1.6t | 38.1×1.9t 31.75×2.5t | 50.8×3.0t 44.45×4.8t | 72.6×2.1t 69.85×3.0t | 115×6.0t |
Max stainless steel tube O.D | 25.4×0.8t | 31.75×2.2t | 44.45×2.2t | 69.85×1.9t | 101.6×3.1t |
Max effective distance (mm) | 1300 | 1700 | 2210 | 2700 | 4250 |
Max bending radius(mm) | 100 | 200 180 | 250 | 300 250 | 500 |
Max bending angle(°) | 185° | 185° | 185° | 185° | 185° |
Bending pipe quantity once | 2/9 | 2/9 | 2/9 | 2/9 | 9 |
Max Hydraulic pressure | 12MPa | 12MPa | 14MPa | 14MPa | 14MPa |
Motor power | 4KW | 4KW | 5.5KW | 11KW | 22KW |
Machine weight(KG) | 600/680 | 750/830 | 1200/1280 | 2300/2380 | 7500 |
Machine Size(L×W×H)cm | 220×65×102 | 250×73×102 | 320×85×103 | 420×110×115 | 590×180×135 |

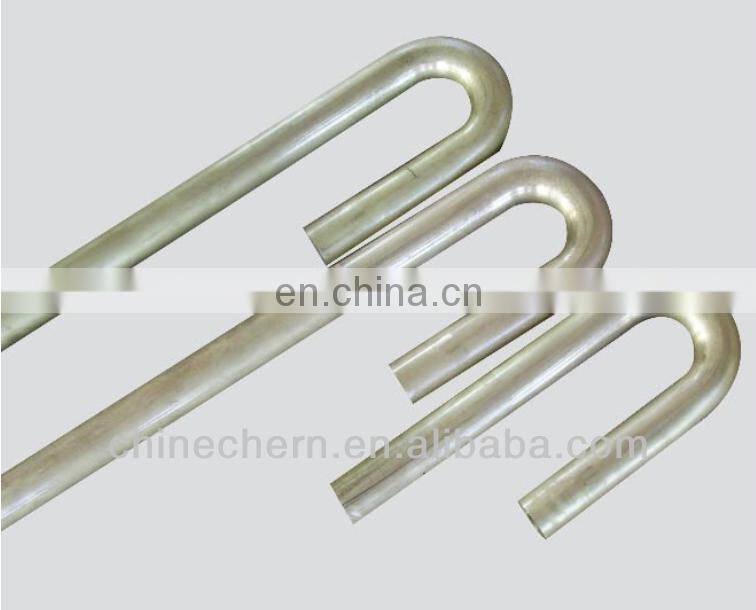

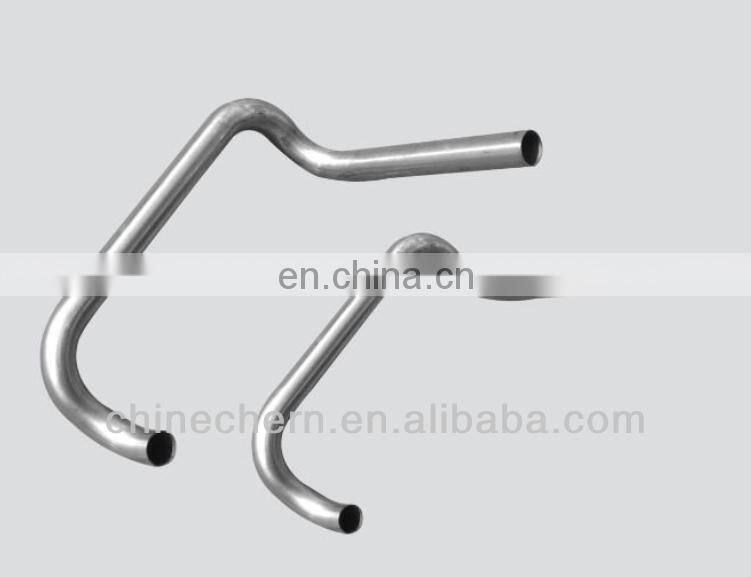

Pipe bending samples :
Machine Picture :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
