TCT Saw Blade Sharpening Machine
US$ 5.00 - 15.00
/ Set
1 Set(Min. Order)
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | Chine chern | Place of Origin | Taiwan, China | |
| Model Number | CNC-023 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
TCT Saw blade sharpening machine
Features:
1.CNC control,friendly interface.
2.It is used for sharpening Tungsten steel circular saw blade .
3. 8.1'' TFT Colorful monitor
The automatic carbide saw grinder machine is suitable for grinding various carbide saws
used in woodworking,steel,Plastic industries etc.
- User friendly interface
With the computer controlled parameter setup you only need to input the tooth type classification,number of teeth,amount to grind and grind angles,the automatic system does the rest.
- Duplicate sawblade and new sawblade repeat
If you have just finished a blade with the same diameter blade as the next one to process ,just press "duplicate" and it will grind to the same specification on the next blade.
- 8.1 TFT Color Monitor and Graph input
With an 8.1 TFT color monitor with graphic display,you only need to input parameters for easy grinding.
- Grinding all kinds of teeth in one single pass
This item offers all kinds of tooth grinding in one single pass and includes: Trapezoid teeth,woodworking teeth,metalworking teeth,other teeth.
Technical parameters:
| Diameter of saw blade | 100-810mm/4-32'' | ||
| Saw bore diameter | 10-120mm | ||
| Saw blade thickness | 8mm | ||
| Tooth pitch | 8-70mm | ||
| High-low difference | 3mm | ||
| Speed | 25m/s | ||
| Grinding speed | 0.5-10mm/s | ||
| Grinding capacity | 20teeth | ||
| Clearance angle | 6°-45° | ||
| Rake or hook angle | -30°-40° | ||
| Bevel grinding at the tooth top | 0°-45° | ||
| Bevel grinding at the tooth face | 0°-30° | ||
| Drive power | 3.7/4.2KW | ||
| Wheel O.D* Bore O.D | 125mm*32mm | ||
| Machine dimension(L*W*H) | 1650*1300*2000/1900*1300*2100 | ||
| Packing dimension(L*W*H) | 1800*1450*2100/2020*1450*2200 | ||
| Net/Gross weight | 1050kg/1200kg | ||

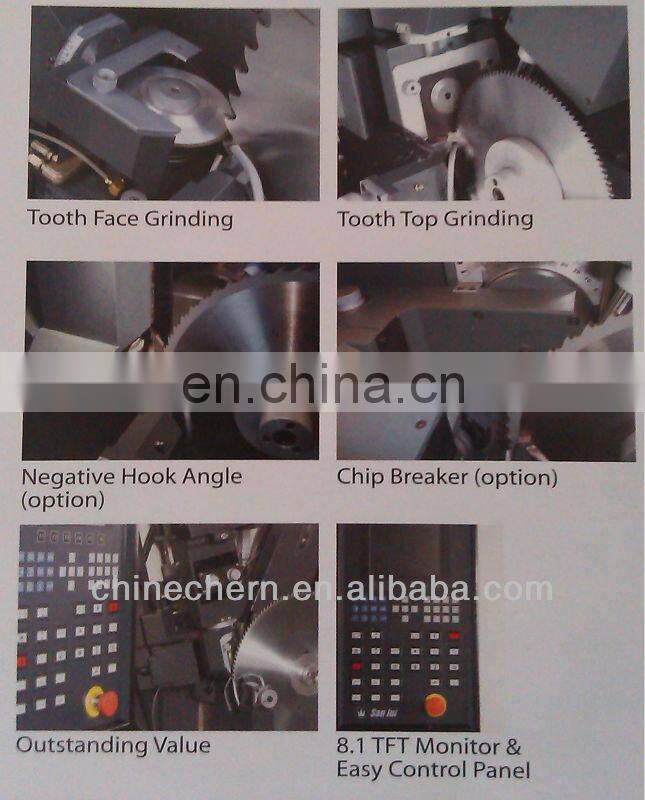

Tooth Top & Face sharpening :

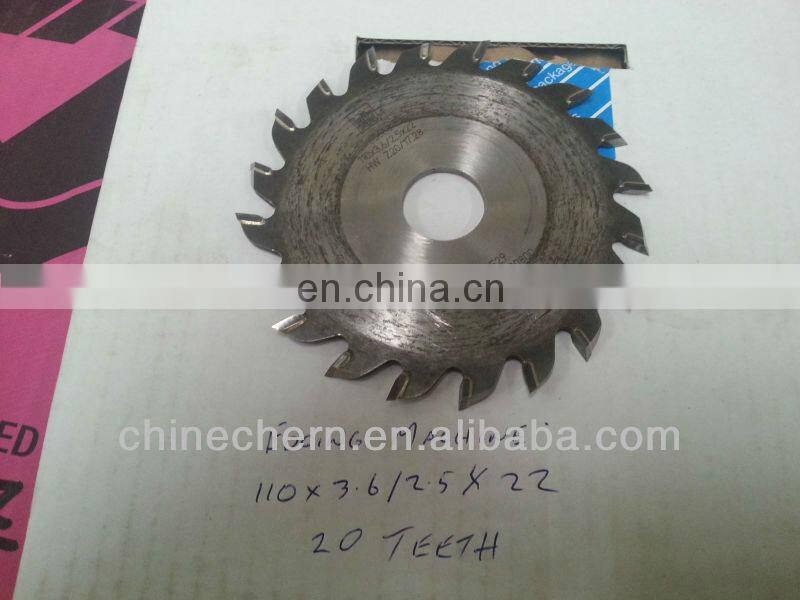

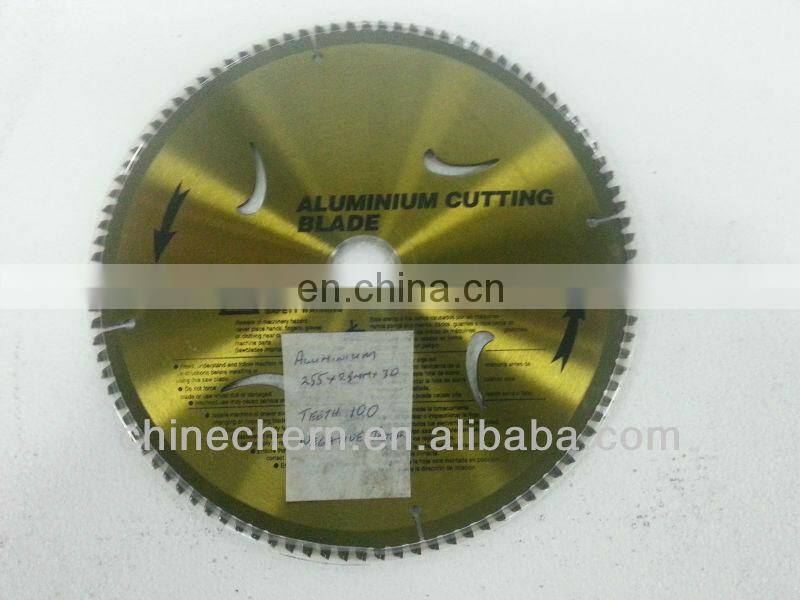

Tungsten Carbide Saw Blade

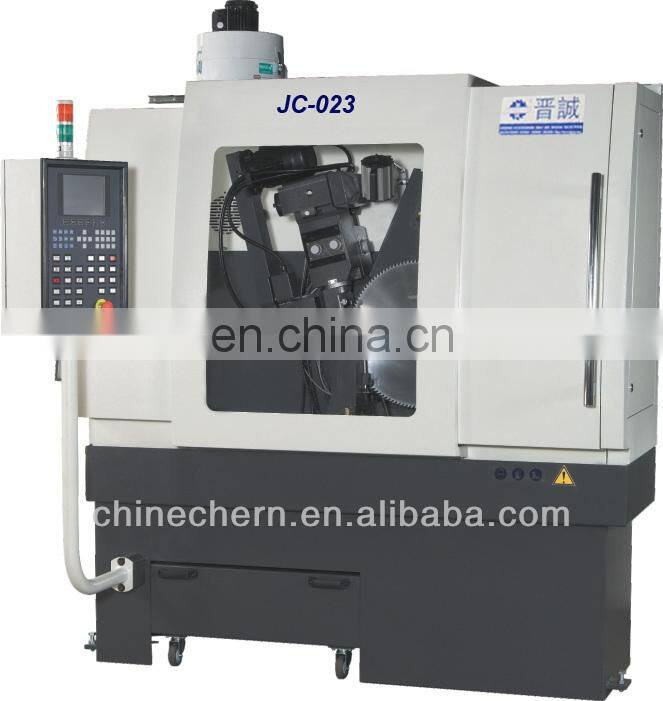

Machine Picture :
