Flying Saw Blade Grinding Machine
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | Chine Chern | Place of Origin | Taiwan, China | |
| Model Number | JC-500 | After-sales Service Provided | Overseas service center available |
Product Description
Flying saw blade grinding machine features:
1. Max diameter of saw blade: 500mm
2. Thickness: 8mm Under.
Stepless Change (Continuous Variable Speeds)
It uses the frequency inverter to control the grinding speed. Therefore, the grinding speed can be adjusted easily following the changes of the teeth pilch according to the requirement. It doesn't use the step pulley so there is no pulley consuming problem.
The Adjustment Of Saw Blade Thickness
The saw blade thickness is adjusted by a precision graduator,which can accurately adjust the center point of the saw blade.
Sharpening Capabifity Of High-low Teeth
The difference of high-low teeth is adjusted by a control dial. The C type teeth with high-low difference can be ground out once.
Tooth Shape Cam
The industrial and professional tooth shape cam is designed through anaccurately calculated mimic process of the computer. It makes your saw blade grinding jobs simpler, faster and more accurate.
The grinding head can be adjusted up-and-down, so the chamfer angle can be ground out without changing the cam.
Technical parameters:
| Model | JC-500 | |||||
| Diameter of saw blade | 65mm-500mm | |||||
| Tooth pitch | Max 25mm | |||||
| Thickness of saw blade | 8mm Under | |||||
| Sharpening speed | 45-140teeth/min | |||||
| Cutting angle | 0°-30° | |||||
| Diameter of grinding wheel | 70~150 mm | |||||
| Grinding wheel motor | 1/4HP | |||||
| Transmission motor | 1/2HP | |||||
| Grinding wheel speed 50HZ/60HZ | 422 rpm | |||||
| Package size (L*W*H) | 102*85*172 cm | |||||
| Net Weight / Gross Weight | 308 kg | |||||
| Voltage | 3- phase 380V 50HZ | |||||
| Standard fittings | 1. 1pc Magnified work lamp 2. 1 set tool box 3.1 copy operation manual 4. 2pcs guide plate 5. 5pcs grinding wheels | |||||

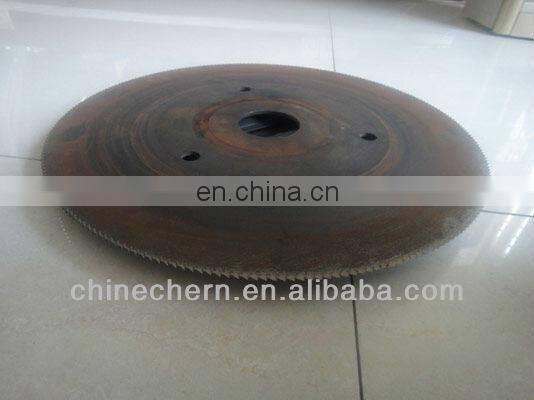

Saw Blade:
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
