Product Details
| Brand Name | Chine Chern | Model Number | JC-400-2AH(3#) |
Product Description

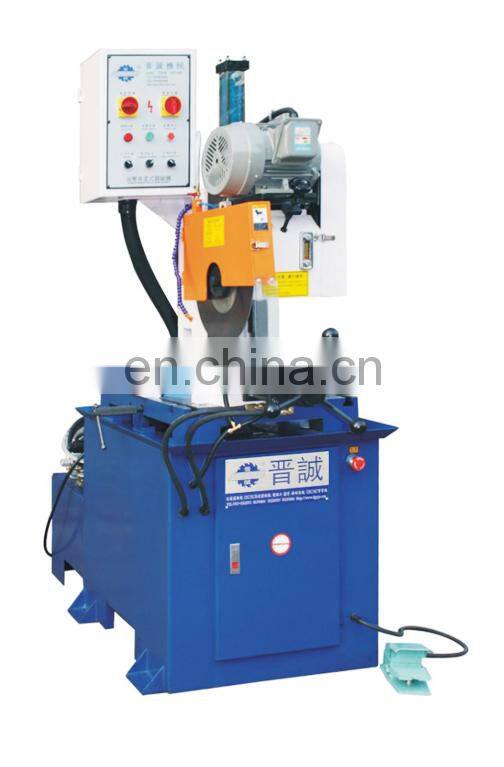

JC-400-2AH(3#) -Oil semi-automatic metal circular saw machine
Patent No.:201130224504.9
It's suitable for cutting thick pipe and soild bar.
Characteristics:
- Vertical slideway for advance and retreat blade up and down cutting feed steady and cutting tools are of long use life. High precision of saw cutting.
- European design. Multiple group of gear transmission is suitable for heavy cutting with steady precision.
- Elaborate design of material feed system. The length of feed material can be set as 6-640m/mz(material feed can be divided into 3 times)
- Elaborate design of material feed floating system so as not to damaged the surface of work piece and with high precision of material feed.
- Main clamp design specially, the strength is solid.
- Slide way automatically add oil for lubricating, long use life of machine.
- PLC controller, no connected point, no fault and easy to maintenance.
- Cooling liquid automatic circulation to secure the cutting surface smoothness
- Equipped with electric saw protection device. Equipped with electric saw cutting number setting and total number.
- Stop automatically when no material.
- Saw piece are centralized for disposal which is convenient and clean.
Technical parameters:
| Model | JC-400-2AH(3#) | |
| Head rotating angle | 90° | 45° |
| Round tube | 130mm | 110mm |
| Square tube | 120*120mm | 100*100mm |
| Rectangular tube | 160*80mm | 110*100mm |
| Solid round bar | 70mm | 60mm |
| Solid square bar | 75*75mm | 60*60mm |
| Host motor | 3P/6HP 2.2KW | |
| Spindle speed(RPM) | 72/36 55/22 | |
| Cooling pump | 1/8HP Automatic circulation cooling | |
| Hydraulic motor | 2.2LW/4 Pole work pressure 25-35kg/cm2 | |
| Suitable saw blade diameter | 250mm-400mm,bore 32mm | |
| Machine size | L1200*W900*H1980mm | |
| Machine weight | 680kg | |

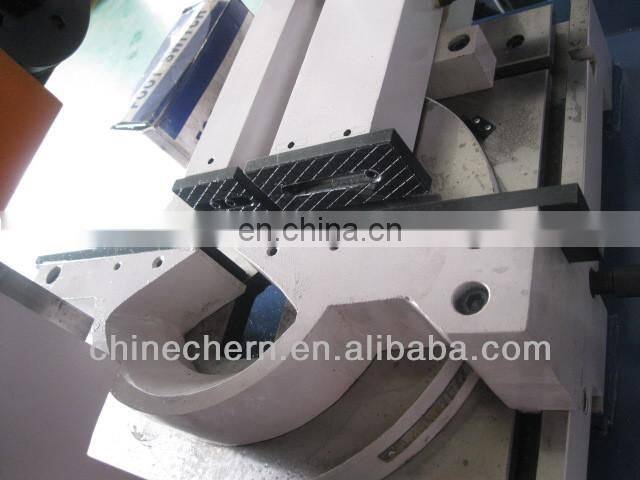

Machine head & Rotary Base :

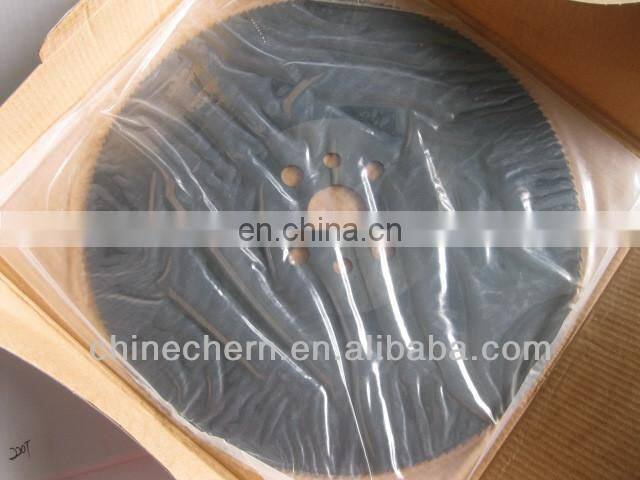

Package:
Chine Chern is a top and professional hightech enterprise with more than 20 years of manufacturing experience. We are fully committed to producing technologically advanced pipe processing machines, such as pipe cutting machines, pipe bending machines, aluminum cutting machines, chamfering machines, etc. We have partnered with leading operators and manufacturers in the industry, including BYD and some other famous customers at home and abroad. We also set up our branch office in Taiwan. In addition, we are authorized by Taiwan Eyan Machine Tool to be their main distributor in China.
We welcome you to contact us for more information and look forward to working with you! We will be a reliable and strong supplier in China.
