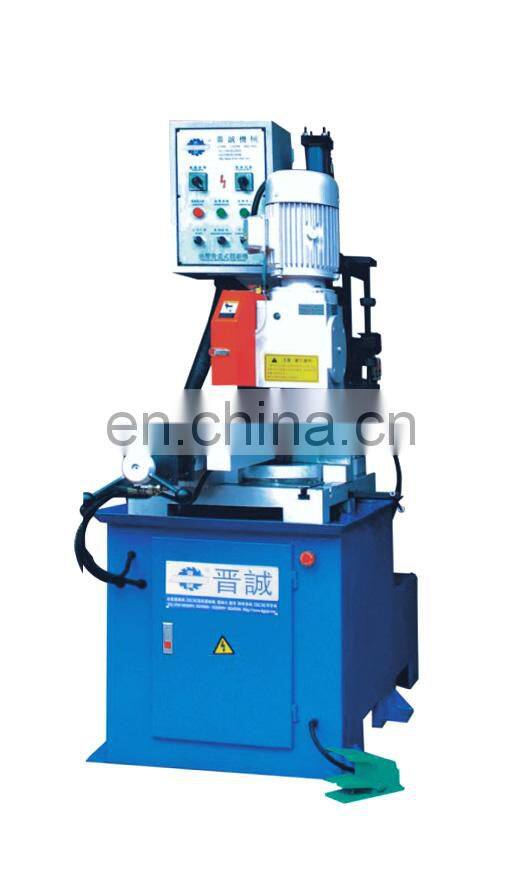

JC-400-2AB(4#) -Oil semi-automatic metal circular cutting machine
Patent No.:201130224504.9
It's suitable for cutting thick pipe and soild bar.
Characteristics:
1.Manual feeding ,automatic clamp and sawing.
2.Continental European style design,multiple sets of gears is suitable for heavy cutting ,precision stability.
3.The cooling fluid automatic cycle to ensure that the workpiece edge smoothing.
4.Vertical chute feed,feed stable with long service life.
5.Scrap iron concentrate processing ,convenient and clean.
6.The machine structure of strong,small vibration ,machine long life.
7.The knife point can before and after the adjustment ,increase the service life of saw blade ,the cutting speed.
8.Automatic lubrication system.
9.Can be left 90°to 30° to 90° to 45°right angle cutting.
Technical parameters:
| Model | JC-400-2AB(4#) | |
| Head rotating angle | 90° | 45° |
| Round tube | 125mm | 115mm |
| Square tube | 125*125mm | 100*100mm |
| Rectangular tube | 160*80mm | 110*100mm |
| Solid round bar | 75mm | 65mm |
| Solid square bar | 75*75mm | 60*60mm |
| Host motor | 2/4Pole 4.5/4.5KW 3.3/4KW | |
| Spindle speed | 72/32 44/22 | |
| Cooling pump | 1/8HP | |
| Hydraulic motor | 2.2LW/4 Pole work pressure 25-35kg/cm2 | |
| Suitable saw blade | 250mm-400mm,bore 32mm | |
| Machine size | L1200*W900*H1980mm | |
| Machine weight | 680kg | |
Sawblade:
Package:
Chine Chern is a top and professional hightech enterprise with more than 20 years of manufacturing experience. We are fully committed to producing technologically advanced pipe processing machines, such as pipe cutting machines, pipe bending machines, aluminum cutting machines, chamfering machines, etc. We have partnered with leading operators and manufacturers in the industry, including BYD and some other famous customers at home and abroad. We also set up our branch office in Taiwan. In addition, we are authorized by Taiwan Eyan Machine Tool to be their main distributor in China.
We welcome you to contact us for more information and look forward to working with you! We will be a reliable and strong supplier in China.
