JC-325-3A-Fully Automatic Metal Circular Sawing Machine for Stainless Steel Square/Round Tube
US$ 25,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chine Chern
Model Number:
JC-325-3A
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Penumatic Metal Circular Sawing MachineUS$ 10,000 - 15,000MOQ: 1 Set -
CNC-400-Fully -automatic Metal Circular Saw Machine for Heavy CuttingUS$ 200,000 - 300,000MOQ: 1 Set
-
JC-275A-Manual Type Metal Circular Saw MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
CNC-150-Metal Circular Angle Sawing Machine-Factory OutletUS$ 5.00 - 15.00MOQ: 1 Set
-
JC-400-3ANCH-Fully Hydraulic Metal Circular Saw Machine for Heavy CuttingUS$ 5.00 - 15.00MOQ: 1 Set
Brand Name
Chine Chern
Model Number
JC-325-3A
Characteristics:
- PLC Control Unit:Easy Operation and Maintenance.
- Process steps showed in Chinese and English on the screen.
- Easy operator Interface and Easy Data Input.
- Automatic feeding,length-fixing,automatic clamping and automatic cutting.
- Vertical cut and champer cut change freely.
- Automatic foot switch,pressing and sawing.
- Automatic stoping without feeding.
- the pipe cutting machine is manual feeding and automatic clamping, cutting.
- Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use
Parameters:
| Model | JC-325-3A | |
| Head rotating angle | 90° | |
| Cutting capacity area | Solid bar | 55mm |
| Round tube | 110mm | |
| Angle steel | 100×100mm | |
| Square tube | 95×95mm | |
| Through-shaped steel | 100×100mm | |
| Retangular steel | 90×110mm | |
| Host motor | 2.4KW/2.0KW-2/4P | |
| Spindle speed | RPM 100/50 | |
| Cooling pump | 1/8HP | |
| Compressed air pressure | 4-6kgs/cm2 | |
| Circular saw blade(Diameter) | 250mm-350mm | |
| Feeding length | 3-650mm(Standard),can feed three times,total 1950mm | |
| Machine weight | 700kg | |
| Machine dimension(L×W×H) | 1000×1650×1700 | |
| Standard fittings | HSS Saw blade 275mm | |
| HSS Saw blade,one scale,one tool box,one set of clamping mould | ||

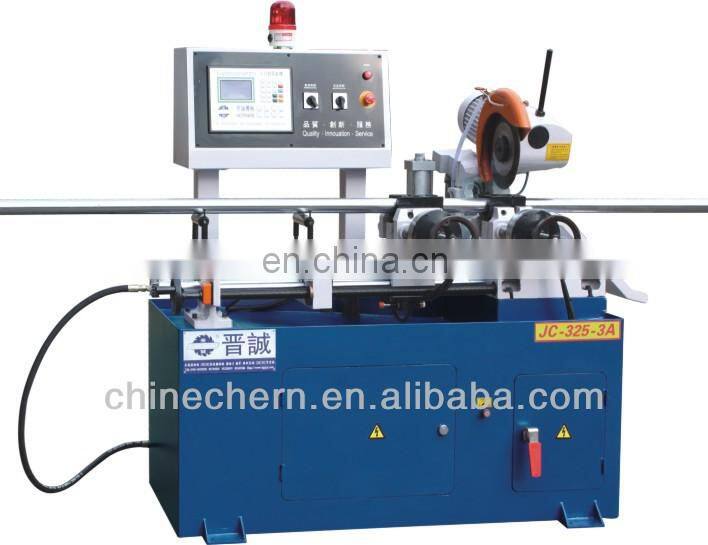

Machine Photo:
Package:
