Single Head Copper Tube End Facing Machine
- T/T Credit Card
You May Like
-
EF-AC/80 Inside and Outside Beveling Round Rod Chamfering Machine
-
Automatic Pneumatic Chamfer Machine of Double End for Steel Pipes/tubes/rods
-
Double Side Tube Chamfering Machine With Selectable Auto Tube Loading Facility
-
Single End Pneumatic Metal Tube Deburring Machine
-
Automatic Double-end Chamfering Machine for Pipe and Bar
-
Double Side Round Bar Chamfering Machine/deburring Machine
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
Product Description
EF-PV/52 Single head tube deburring and chamfering machine with pneumatic control
Application:
This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Specification/Model | EF-PV/52 | EF-AC/80 |
| Main motor power | 1.5KW | 2.2kw |
| Main axis speed | According to the pipe material | |
| Processing diameter | 9-52mm | 30-82mm |
| Processing external angle | 9-25mm | 20-50mm |
| compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
| Size | 450mmx 400mm x 800mm | 500mmx 400mm x 850mm |
| Weight | 300kg | 400kg |

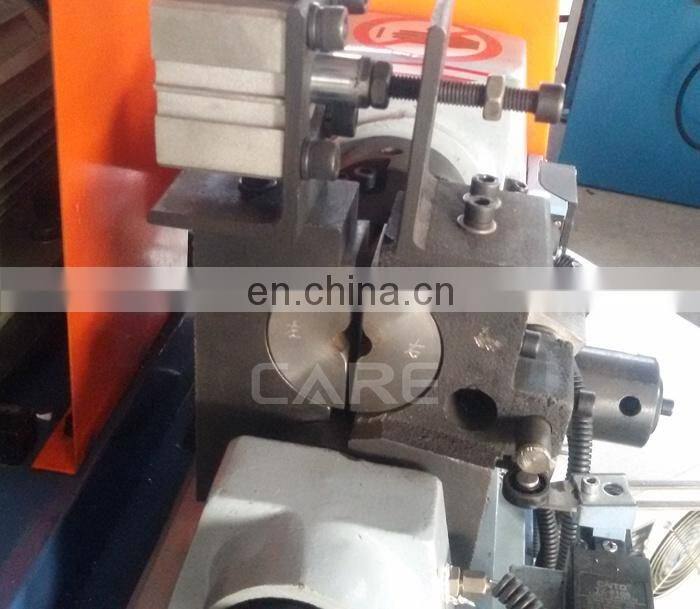

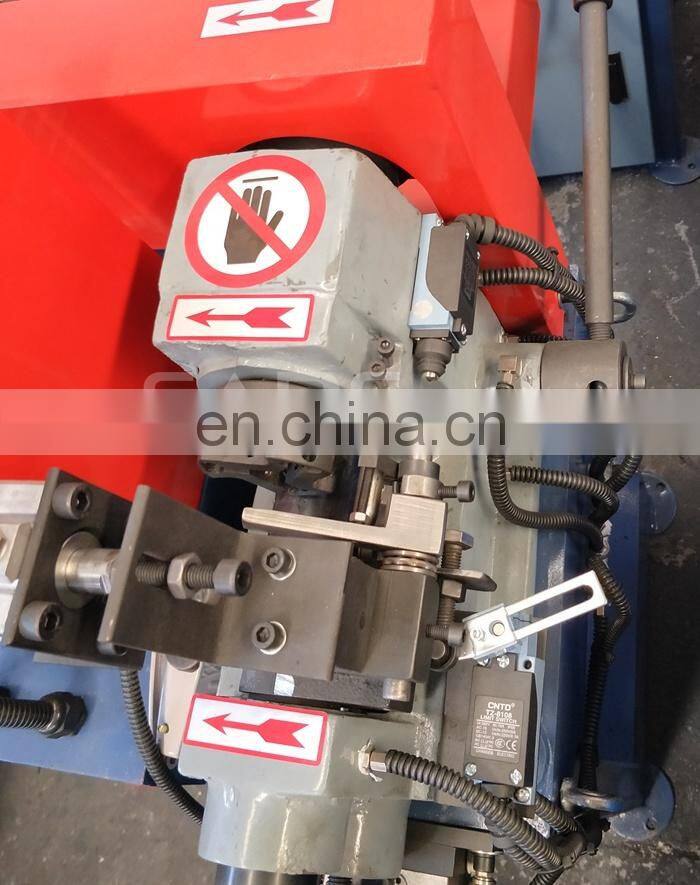

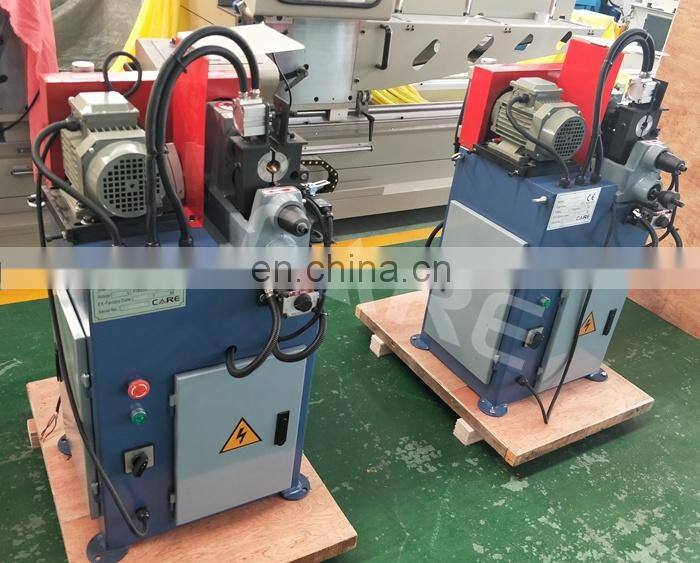

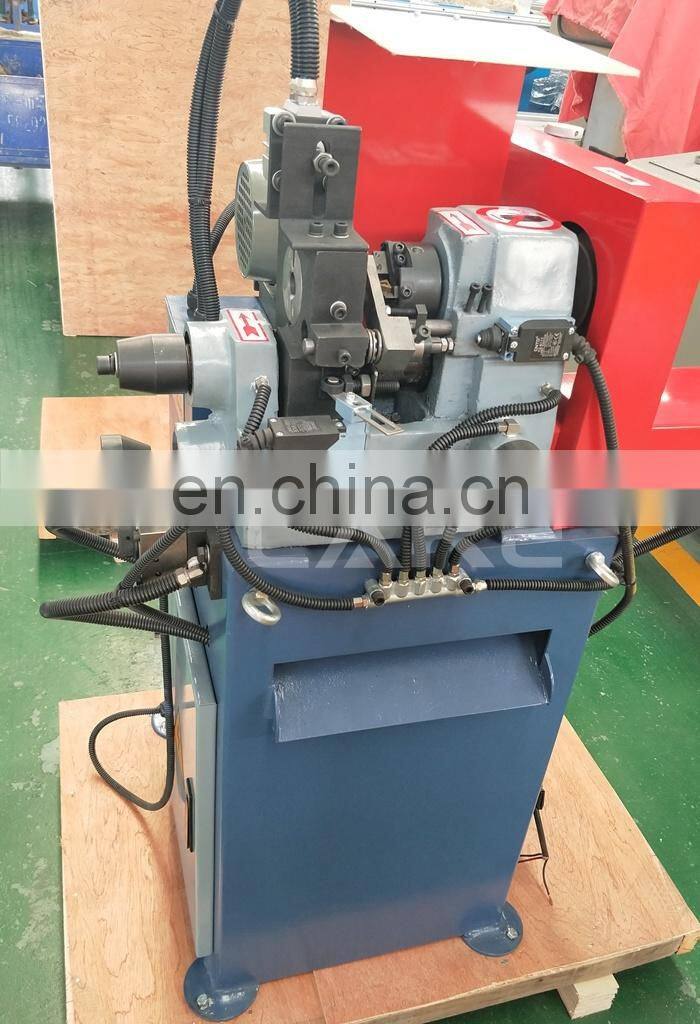

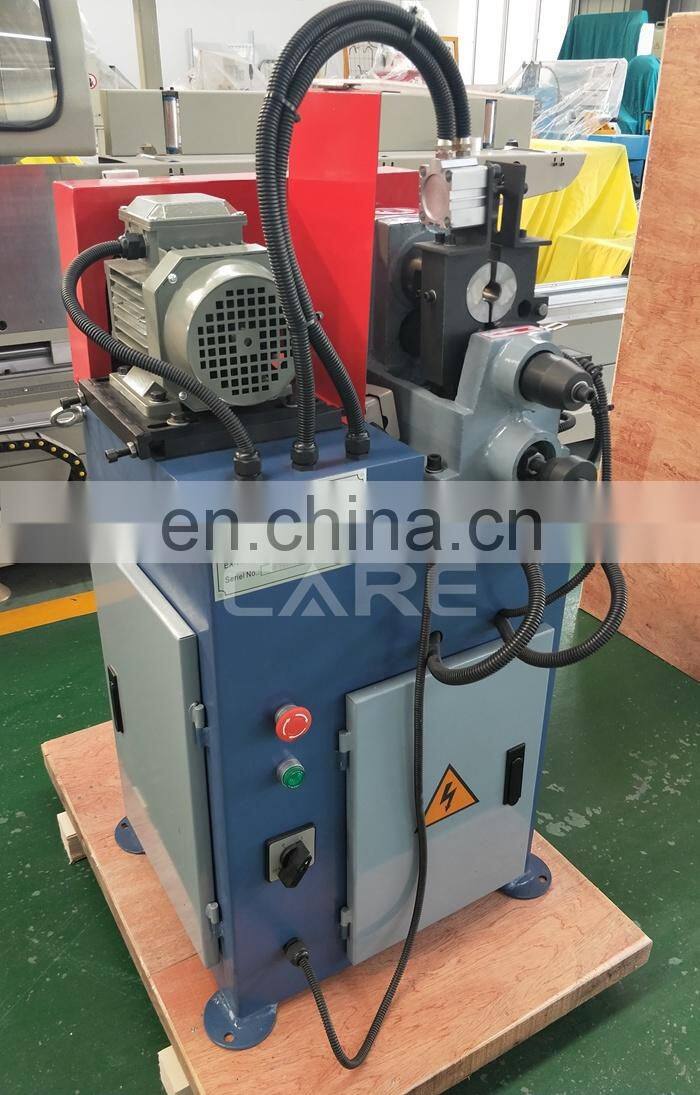

Machine photo
Clamp mold
Chamfer outside angle
Chamfering inside angle
Chamfer facing angle
Pipe/rod sample
To know more information, please contact us at any time.
