DW89NC ss square tube bender, multi-function pipe bender, mandrel tube bender
Main specification
1) NC Control Unit,imported electric and hydraulic elements.
2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages
9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.
Technical parameter
Specification/Model | Unit | DW89NC | Remark |
Max bending capability | mm | Φ89×3.5t |
|
Max bending radius | mm | R350 | |
Min bending radius | mm | R25 | |
Max bending angle | Degree | 185 | |
Max effective distance of mandrel | mm | 3500 | |
Control System |
| NC Control | |
Max elbow bend pipe | Unit | 16 | |
Max storable sections | Unit | 16×16 | |
Motor power | KW | 11 | |
Max. Hydraulic Pressure | Mpa | 14 | |
Hydraulic System Control |
| Electromagnetic Valve | |
Oil Tank Capacity | L | 150 | |
Size | Cm | 460×108×123 | |
Weight of Machine | Kg | ≈2900 |

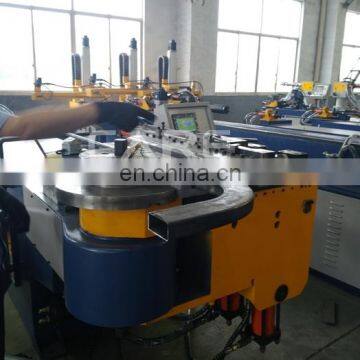

Machine photo
Pipe samples
Use exporting polywood package or metal frame package
