Five Axis Gantry CNC Machining Center PKG

Five Axis Gantry CNC Machining Center PKG photo-1
Five Axis Gantry CNC Machining Center PKG photo-2

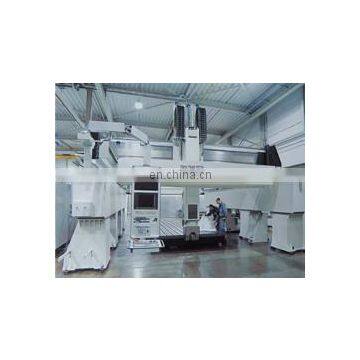

Five Axis Gantry CNC Machining Center PKG photo-3

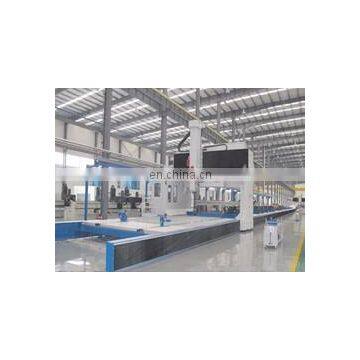

Five Axis Gantry CNC Machining Center PKG photo-4
Five Axis Gantry CNC Machining Center PKG photo-5
Five Axis Gantry CNC Machining Center PKG photo-6
US$ 200,000 - 250,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
parker
Place of Origin:
Shandong, China
Type:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name parker
Place of Origin Shandong, China
Type Horizontal
Certification CE SGS
Warranty 1 Year
Weight 24000KG
Dimension(L*W*H) 15500*3000*3000mm
Voltage 380V/50Hz
Condition New
Power(W) 45KW
Product Description

Features:

●Using gantry frame structure, running more smoothly, improve the rigidity of the machine tool.

● Suitable for all kinds of aluminum, copper, PVC, industrial profiles and other complex parts processing. Can achieve a workpiece clamping automatically completed milling, drilling, tapping and other multi-process processing.

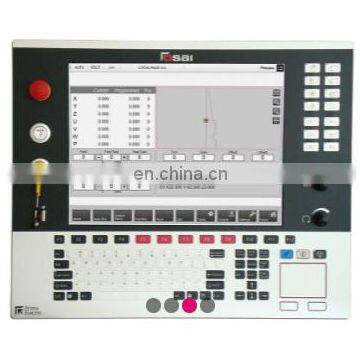

● Imported well-known brands, easy to operate high-end CNC control system from Italy.

● The use of high-quality imported servo motor, ball screw, linear guide and other bearings and other institutions to ensure that the equipment has a high processing accuracy. High stability, reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.

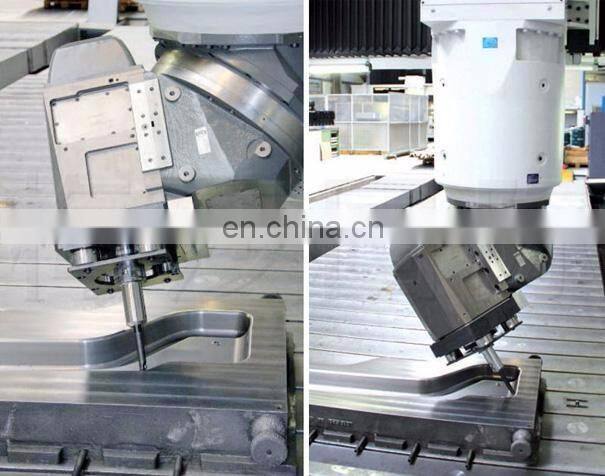

● The machine adopts the imported five-axis milling head to finish the processing at any angle on the other side of the bottom surface. Optional vertical disc 8-bit magazine.

● The use of quantitative timing of the central centralized automatic feed lubrication to ensure the stability of the machine accuracy.

● Use pneumatic clamping table to improve loading and unloading speed. Optional T-type table.

● The use of imported Renishaw interferometer detection, compensation for the accuracy of the machine.

● Use safety protection to ensure safety.

Product Name
Five axis Gantry CNC machining Center PKG
Stroke for X axis
7000mm
Stroke for Y axis
1000mm
Stroke for Z axis
550mm
Capacity Of Tools Magazine
8
X Axis Moving Speed
0~60m/min
Position Precision Of X Axis
±0.05 mm
Repeating Position
±0.01 mm
Serve Motor
Yaskawa
Spindle
Hiteco
Guide Rails
THK
Products Show
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Introduce

                                                                 PARKER Introduce

*PARKER Machinery Co.,LTD was founded in 2003,since the entry into the window door curtain wall machinery manufacturing field,peck with the best team and most stringent manufacturing standards,has been committed to the global supply of machinery and the best service.Today,with more than 300 employees,PARKER Industrial Park covers an area of 70000 m^2,Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.

*PARKER products include aluminium,PVC window and doors machinery,aluminium curtain wall processing machinery,industrial aluminium processing machinery and insulating glass series production line machinery.

*PARKER machinery expotrs to the world more than 80 countries and regions,and has firstly established branches in USA,India,UAE,Brazil,has more than 15 patents.

*PARKER machinery are all passed through high standard European CE certification,American UL certification and Canadian CSA certification.

*PARKER manufacturing creates ecological management system of 9M that is unique and most proud of,and the human resources,raw materials,technology methods,environment,information etc. Have been ongoing ascension,and improves the overall quality and core competitiveness of parker.Customers around the world are actively popularize and apply it,benefit a lot from it.

*PARKER machine core parts procurement achieved internationalization,and established a cooperative partnership with ABBA,OMRON,SCHNEIDER,OPTIMA.

*PARKER people are always follow the core concept,it is "PARKER is developing with the world",it is PARKER peoples' strict implementation of ecological system of PAREKR and of "zero defect" stern pursuit,which makes the PARKER machine perfect implement unique global standard,achieves improvement value and sustainable innovation!

*PARKER machinery,leads the era of intelligence,create the strategy of globalization!

*PARKER machinery,contribution to the world culture of windows and doors!

                                                       PARKER Cooperative Partner

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Customer Photo
Contact Information
Contact
Chris Wang
Company
JINAN PARKER MACHINERY CO., LTD
Address
9th floor, South of No.9 Building, Shuntai Square, Hi-tech Development Zone, Jinan, China.
Telephone
0086-531-88977166
Mobile
0086-15554107750
Whatsapp
0086-15554107750
Email
chris(@)
Web

Industrial Park
 Mingjia West Road, Economic Development District, Shandong, China
