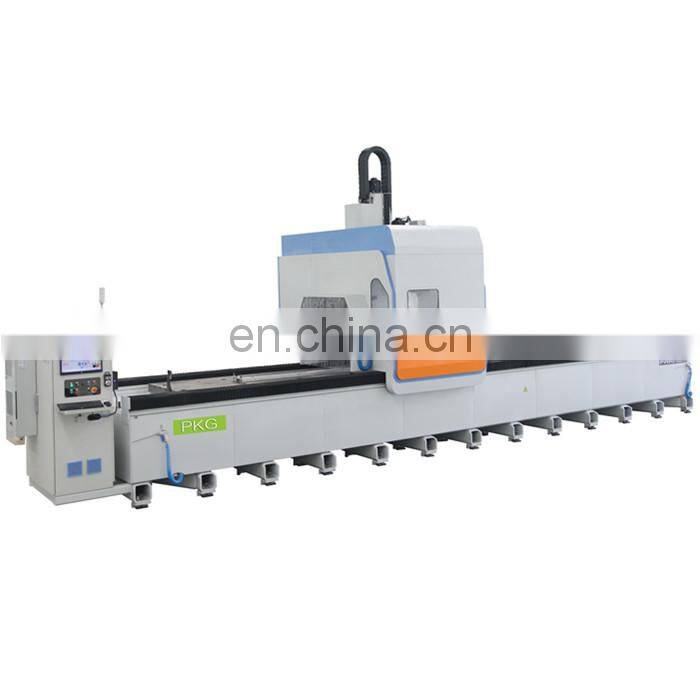

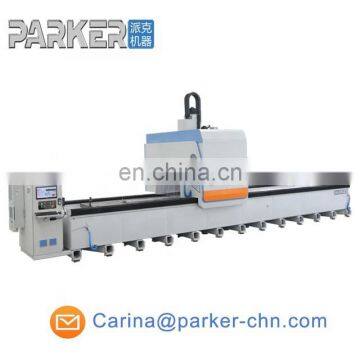

Gantry Cnc Machine Center Series With Five Axis

Gantry cnc machine center series

Company Introduction

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.

Main Feature
1.Using gantry frame structure,running more smoothly,improve the rigidity of the machine

tool.
2.Suitable for all kinds of aluminum,copper,PVC,industrial profiles and other complex parts

processing.Can achieve a workpiece clamping automatically completed
milling,drilling,tapping and other multi-process processing.
3.Imported well-known brands,easy to operate high-end CNC control system from Italy.
.The use of high-quality imported servo motor,ball screw,linear guide and other bearings and other institutions to ensure that the equipment has a high processing
accuracy.High stability,reliability.The feed movement is pre-stretched to ensure the stability

of the machining accuracy.

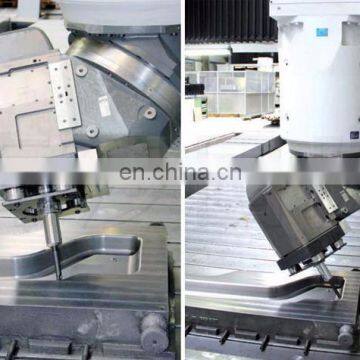

5.The machine adopts the imported five-axis milling head to finish the processing at any

angle on the other side of the bottom surface. Optional vertical disc 8-bit magazine.
6.The use of quantitative timing of the central centralized automatic feed lubrication to

ensure the stability of the machine accuracy.
7.Use pneumatic clamping table to improve loading and unloading speed.Optional T-type

table.
8.The use of imported Renishaw interferometer detection,compensation for the accuracy of

the machine.
9.Use safety protection to ensure safety.

Detail

Moving speed

X axis travel 7000 (customizable)

X axis movement 0 ~ 60m/min

Travel Y-axis 1000mm

Y/Z axis movement 0 ~ 30m/min

Z axis travel 550mm

B axis running speed  Max166.7 degrees /s

B axis slew range± 185 degrees

C axis running speed Max166.7 degrees /s

C axis slew range ±320 degrees

Accuracy  principal axis

X axis positioning accuracy + 0.05mm

Max. spindle speed 24000r/min

Y/Z positioning accuracy + 0.02mm

Spindle power 15kw

Repeatability positioning accuracy + 0.01mm

Taper of spindle HSK-63F

Mechanical specifications Spindle to table distance

Minimum 160mm, maximum 670mm

Power Supply 380V/50HZ

Barometric demand 0.5 ~ 0.8Mpa

The knife Area covered 15500 x 3000mm

Tool magazine form Carousel

Machine tool load 500kg/m

Tool magazine capacity Eight

Weight 24000kg

Lubrication cooling system lubrication system

Automatic lubrication

Cooling system Micro atomizing cooling

Service

Factory

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.

2.Q:Where is your factory located?Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao.You are warmly welcomed to visit us!

3.Q:How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate.

4.Q:What you can do if my machines have problems?
A.We can send you free components to you if your machines are in guarantee time.
B.We can send our engineers to repair your machines

5.Q:If OEM available?
Answer:Yes, as we usually do.

6.Q:What are your company normal payment Terms?
Answer:We accept T/T (50% T/T prepaid before production, 50% T/T prepaid before shipment)
