CNC Aluminum milling and drilling and cutting machine with Syntec Control system

Other Aluminium Window Door Machines:

Feature:
For curtain walls, aluminium profiles and so on.
Drilling and milling functions.
Spindle: Italy HSD, 18000 rpm/min.
Industrial personal computer: Taiwan ADVANTECH.
Servo motor and driver: Japan OMRON.
Ball screw and square guide rail: Japan ABBA.
A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
Half dry cooling system, with plant oil, no damage to workers and environment.
Continue to work from the breakpoint.
Equipped with professional software CAD-CAM.
Light curtain to protect workers effectively.
Lock Knife block is convenient to change cutters.

Parameter:
Power 380V/50Hz/11kw
Air pressure 0.5-0.8Mpa
Aluminum machine X axis stroke 3600mm
X axis speed 120m/min
Aluminum machine Y axis stroke 380mm
Y axis speed 80m/min
Aluminum machine Z axis stroke 400mm
Z axis speed 60m/min
Aluminum machine Max. processing speed 3m/min
Location error ±0.05mm
Resetting error ±0.02mm
Aluminum Processing error ±0.1mm
Surface roughness Ra12.5μm
Overall dimension 5380x1890x2240mm
Weight 3000kg

Aluminum machine max. tool diameter 13mm

Application
CNC automatic drilling and grooving and tapping machine Drilling milling machine bed

Steel machining center Hardware lock handle machining center Rail way processing machining center Rail Transit

Hardware lock handle Rail way Transit machining center

aeronautical and space technologies,auto parts machine,

automobile wheel hub/bearings machine

parts mould machine,Automobile skylight machine

Automobile Sunroof Panoramic sunroof machine

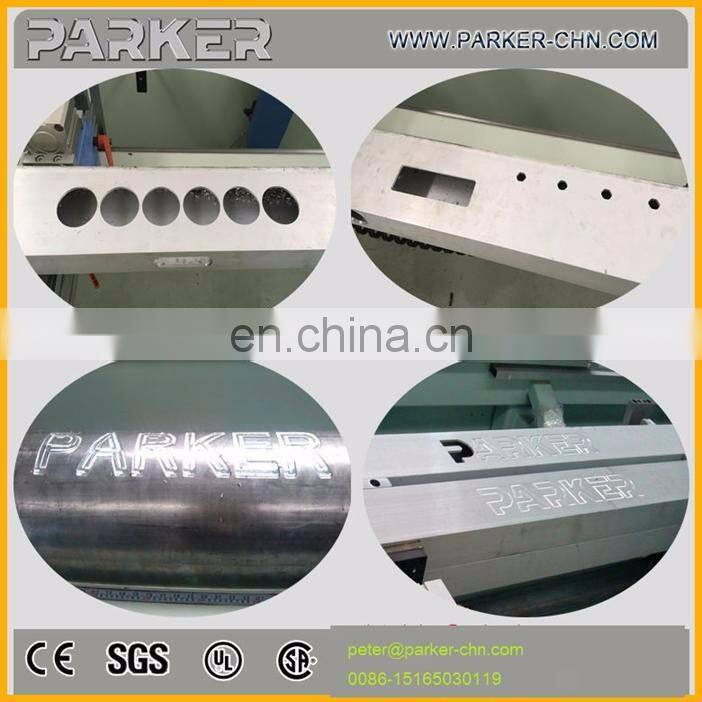

Samples:
Exhibitions:

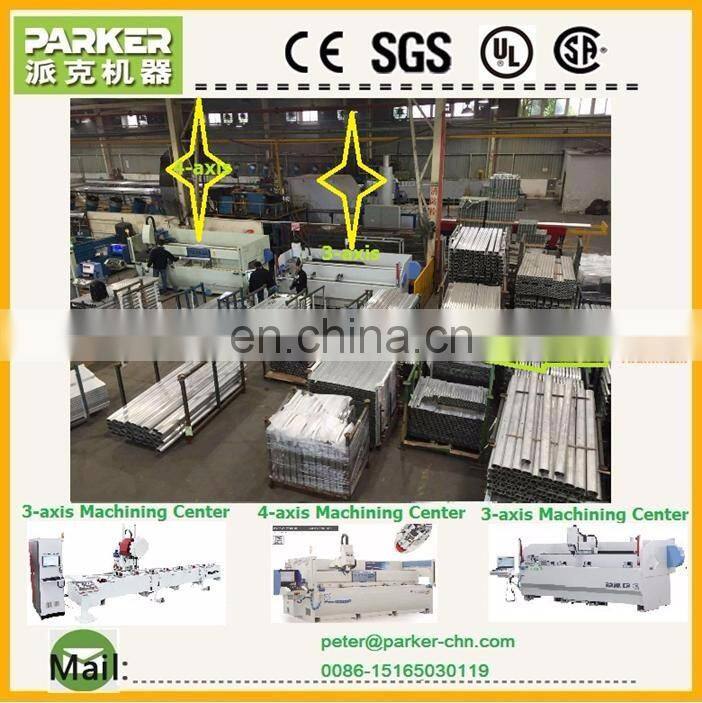

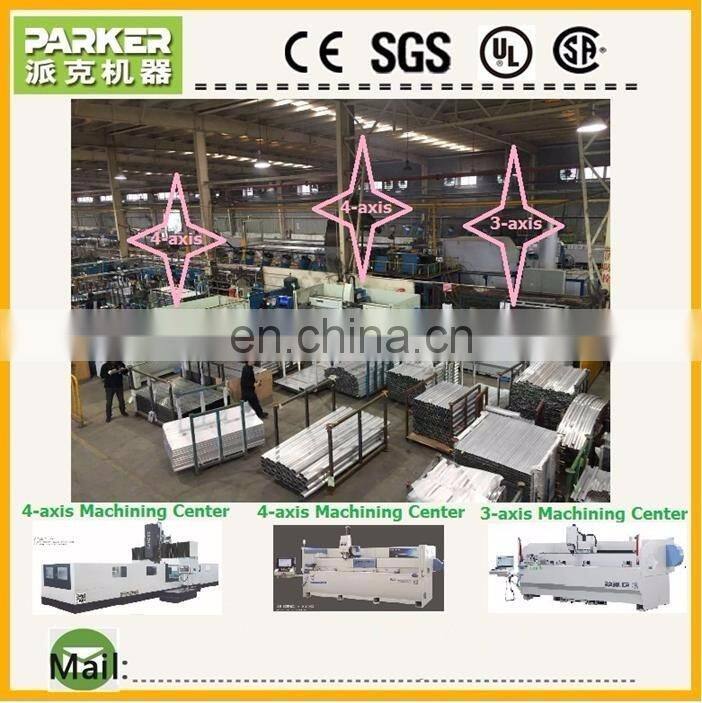

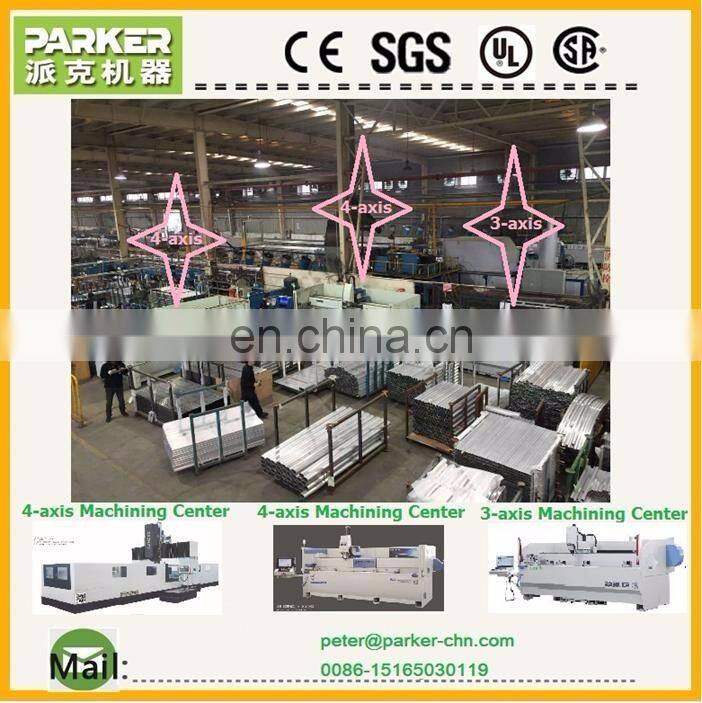

Factories of Customers:

Customers Visit:

Our Services
Parker Service Team:
Packaging & Shipping

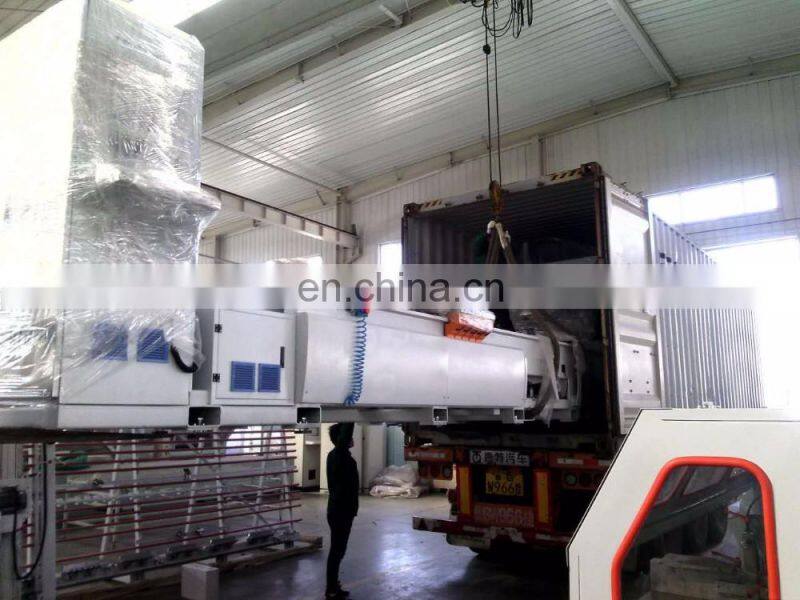

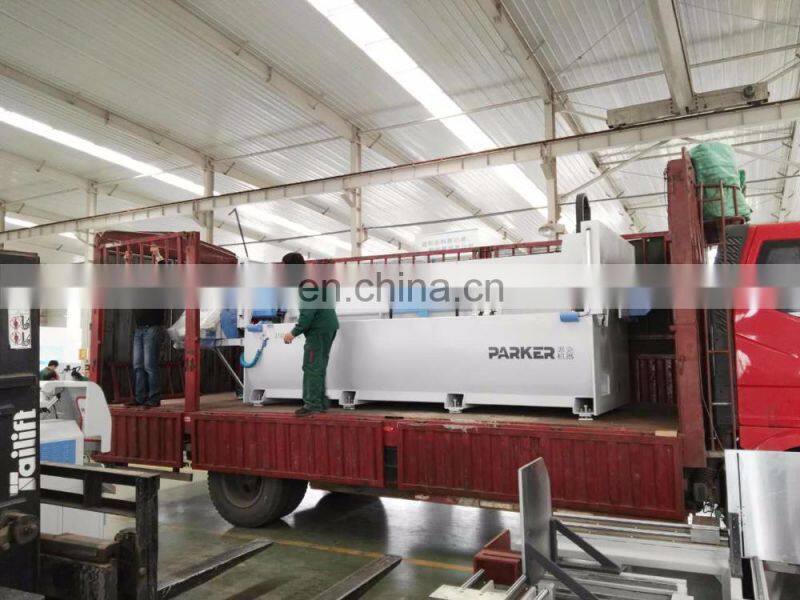

Packing & Loading:
