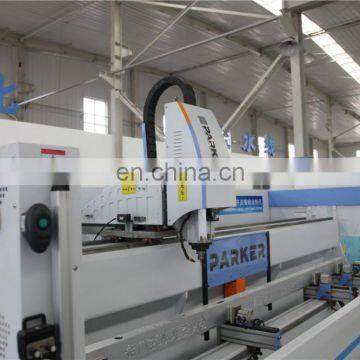

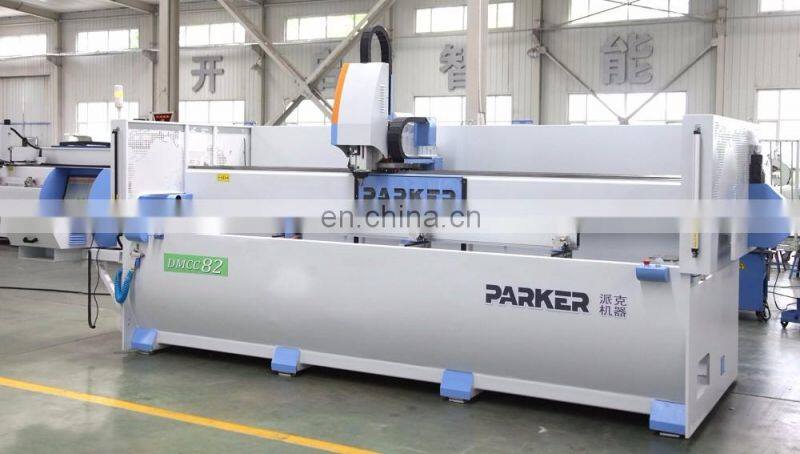

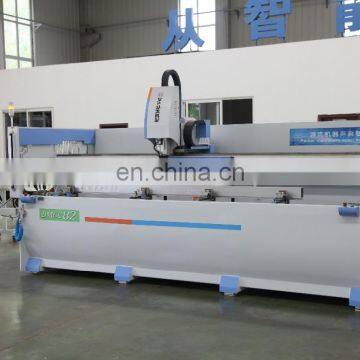

CNC Aluminum processing machine
Feature
◆ For curtain walls, aluminium profiles and so on.
◆ Drilling and milling functions.
◆ Spindle: Italy HSD, 18000 rpm/min.
◆ Industrial personal computer: Taiwan ADVANTECH.
◆ Servo motor and driver: Japan OMRON.
◆ Ball screw and square guide rail: Japan ABBA.
◆ A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
◆ Half dry cooling system, with plant oil, no damage to workers and environment.
◆ Continue to work from the breakpoint.
◆ Equipped with professional software CAD-CAM.
◆ Light curtain to protect workers effectively.
◆ Lock Knife block is convenient to change cutters.
Parameter
Power: 380V/50Hz/11kw
Air pressure: 0.5-0.8Mpa
X axis stroke: 3600mm
X axis speed: 120m/min
Y axis stroke: 380mm
Y axis speed: 80m/min
Z axis stroke: 400mm
Z axis speed: 60m/min
Max. processing speed: 3m/min
Location error: ±0.05mm
Resetting error: ±0.02mm
Processing error: ±0.1mm
Surface roughness: Ra12.5μm
Overall dimension: 5380x1890x2240mm
Weight: 3000kg
PARKER IS DEVELOPING WITH THE WORLD.
Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000㎡, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
Parker industrial show.
Parker manufacturing creates ecological management system of 8M that is unique and most proud of , and the human resources, raw materials, technology methods, environment, information etc. have been ongoing ascension, and improves the overall quality and core competitiveness of parker. Customers around the world are actively popularize and apply it, benefit a lot from it.
Custome visit Parker industrial Park.
Parker engineer after-sales service.
Parker's outstanding team give you 24 hours online service.
CE Certificate
Patent Certificate
Want to know more about us,
please click here →
Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.
Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.
Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
CNC machining center
Aluminum window door/ curtain wall making machine
UPVC window door making machine
Insulating glass making machine
You can send to my email directly : Carina(at)
