Semi-automatic spacer bending machine LW02 insulating glass machine
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Molecular Sieve Filling Machine for insulating glass production/Double glass Auto Desiccant Filling Machine (DFG02)
-
Vacuum glass Sealant Spreading Machine/Two Component Sealant Glue Extruder/Vacuum glass sealant coater machine (ST01)
-
Butyl Extruder Machine JT03 insulating glass machine
-
Butyl Extruder Machine JT02
-
Vertical Insulating Glass Automatic Flat Press Produce Line (LB2500P) insulating glass making plant
-
Vertical Insulating Glass Automatic Flat Press Produce Line (LB2500P) insulating glass processing machinery
Product Details
Brand Name | Better | Place of Origin | Shandong, China | |
Model Number | LW02 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 2years | |
Weight | / | Dimension(L*W*H) | 10000*2200*2600 | |
Condition | New | Voltage | 220v 50hz | |
Power(W) | 4kw | Machine Type | Insulating Glass Production Line |
Product Description

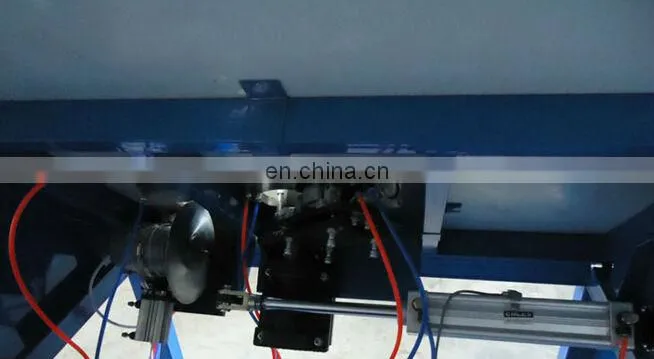

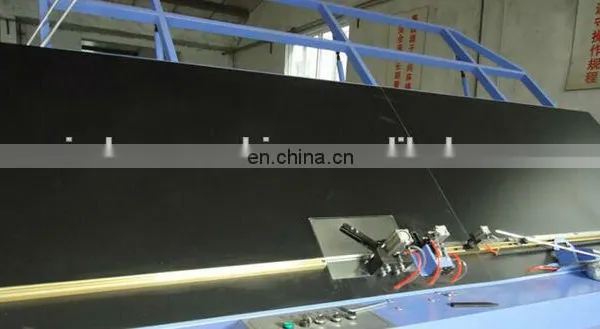

Semi-automatic spacer bending machine LW02
insulating glass machine
1. Discription:
1). The startup was controlled by single button, and it is adopted touch screen.
2). The head of the cutter can be adjusted automatically. It can operates without changing the cutter aluminum spacer when the width of the spacer is bigger than 6mm.
3). FUJI servo feeding system with digital control, bending angle. Digital control system, Siemens control system.
4). To reconnect the ends automatically, and to prevent the ends being clashed intelligently.
5). Judging the processing data intelligently.
6). The remanent can be processed again and no tailings exist.
7). Cutting the feed supply automatically when the processing is done.
8). Counting the output.
9). Remaining dormant state to save energy consumption when there is no processing.
model | LW02 |
Power supply | AC220V, 50HZ |
Motor | 2.5KW |
Air supply | 0.6MPa |
Aluminum bar size | width: 6mm-24mm |
Length: 2000-4000 | |
Aluminum spacer size | min 250*150mm |
max 2500*2500mm | |
Processing speed | < 30s/pcs(1000mm*1000mm) |
Date number | set 4 groups of specification*8 kinds of size*9999 piece at the same time |
Figure Dimension | 10500× 2100× 2200mm |
Total Weight | 1800Kg |
3.Contact information
Contact Person: jack lee
Jinan Better Machinery Co.,Ltd
Address: No.6 Lashan North Road., Jinan, China
Tel: 0086-531-85608516
Mobile No: 0086- 14706304987 (24H on Line)
Fax: 0086-531-61311202
Skype:li.yang2806
4.After service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 24 months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
WHY YOU CHOOES US Question AND Answer (If you see same 100% description in other company website on alibab, they copy us, please kindly check and compare.)
1.Question:Are your manufacture?
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the costomer service ?
Answer:
1).reply within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 15 years experience in this field
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 years
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).one year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4.Question:if our price is higher than another company or factories ?
Answer:
plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have break down, the most reason is the machine inner electric parts problem, but we use the world famous brand parts to install tomachines inner, so that can sure you can use the machines very long long years.
belive you will chooes the same value of the machine, not cheaper equipement
5.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days
