Specifications
Made in China glass laser engraving equipment1.Suitable to large board
2.Strong power laser
3.Speciall air ball worktable

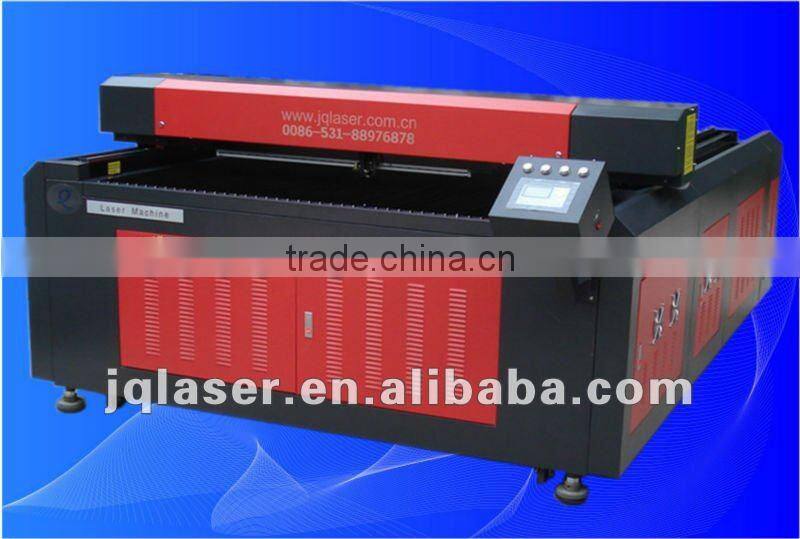

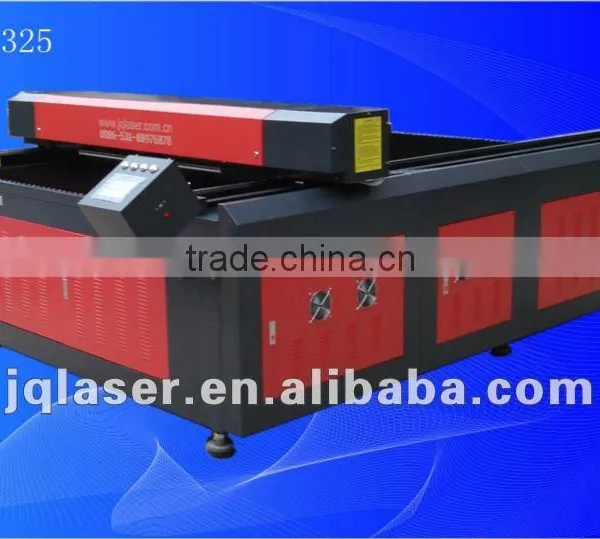

Made in China glass laser engraving equipment
Performance Features:
1. Configure high power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
Applicable Materials
Non-metal materials such as double color boards, acrylic, glass, wood planks, paper, leather, rubber, marble, granite and tiles.
The warranty after-sale service
1).CE and FDA certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machineexcept of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
Parameters
Model | JQ2513 |
Laser Power | 80W |
Laser Type | sealed CO2laser tube,water-cooled,10.6um |
Work Area | 2500 X 1300 mm |
Cooling Type | Water-cooled and Protection System |
Engraving Scanning Speed | 0-60000 mm/min |
Cutting Speed | 0-1000mm/min |
Laser Output Control | 1-100% Software Setting |
Smallest Character Engraving | English: 1.0X1.0 mm |
Highest Scanning Precision | 2500DPI |
Power Supply | AC 110-220V±10%, 50-60Hz |
Operating Temperature | 0oC-45°C |
Operating Humidity | 5%-95% |
Locating Precision | ≤±0.01mm |
Supported File Format | DSTPLTBMPDXFAI |
Compatible Software | TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
Slope Engraving | 360°Slope Can Be Designed Easily |
Driving System | Stepper Electrical Motor |
Package Dimension | 2120*3360*1320mm |
Net Weight | 1100KGS |
Gross Weight | 1150KGS |
Optional Spare Parts | Up-down Worktable, Rotary System, Honeycomb Worktable |
Removable Spare Parts | Laser Tube and Lens |

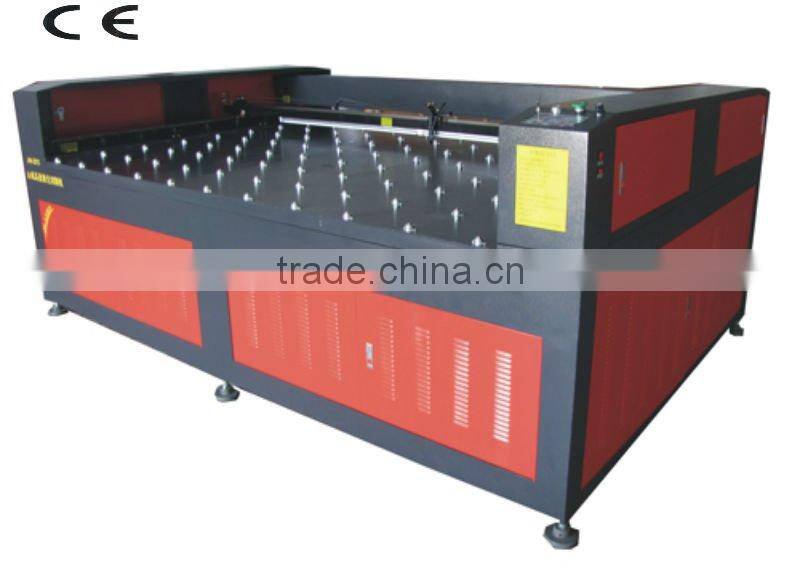

This laser engraving machine is developed specially for engraving glass. There are many ballscrews on the surface of the worktable, so the use can put down and out the glass sheet on the worktable easily.

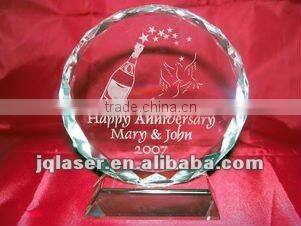

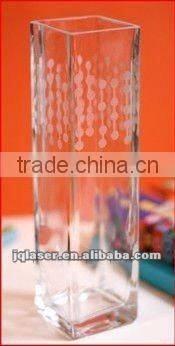

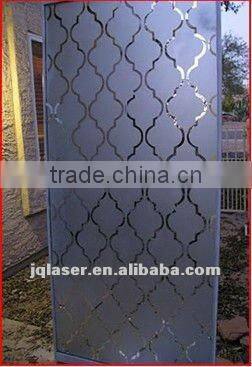

SAMPLES
