Vertical Insulating Glass Automatic Flat Press Produce Line
insulating glass making plant
Product introduction

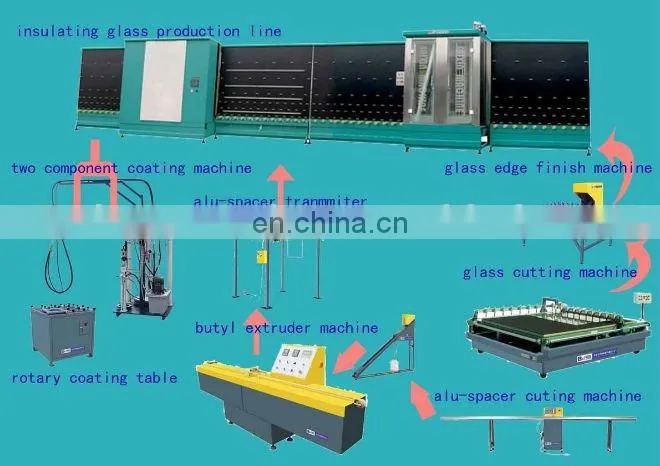

This production line adopts the most advanced IG manufacture technology and craft in the world. It has all functions include inner assembly, outer assembly and different edge glass processed especially automatic output products in the overturn part. This production line can process same edge glass, different edge glass, and double insulating glass i.e. three layers glass with high efficiency.
1). Automatic discerns the membrane of the coated glass and the low-emission glass, and digital play.
2). Static state put glass when add glass material, ensure safety in production.
3). The washing machine adopts stainless steel and other corrosion resistant material, good water proof security, hygiene, and long useful life.
4). Can clean 3~25mm thickness glass, wide sphere of application.
5). Reasonable combine the inner and out assemble glass. That can process same edge glass, different edge glass, and double insulating glass i.e. three layers glass with high efficiency.
6). Adopts the world famous brand low-voltage apparatus, sensor and PLC, etc.
7).Adopts touch screen human-computer interface, easy to operate, and can self-diagnosis the equipments fault with high degree of automation.
8). Treat the surface of plate guard through baking paint, powder coated.
Appearance beauty and wear well.
9). the plate press part can be opened in large journey to max.500mm, that easy to maintenance.
10).The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
Technical parameters
Model number |
LB2500P |
Power supply |
380V 50Hz |
Process glass size |
LB2500P:3000*2500mm |
Total power |
51.5kW |
Min. |
400*400mm |
Original glass thickness |
3-25mm |
max D-value of different edge glass |
50mm |
Working speed washing speed |
3-9m/min |
Conveying speed after washing |
15-45m/min |
Contour dimension(L×W×H) |
19600*2500*3680mm |
Net weight(about) |
10600kg |
3.Contact information
Contact Person: jack lee
Jinan Better Machinery Co.,Ltd
Address: No.6 Lashan North Road., Jinan, China
Tel: 0086-531-85608516
Mobile No: 0086- 14706304987 (24H on Line)
Fax: 0086-531-61311202
Skype:li.yang2806
4.After service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 24 months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
WHY YOU CHOOES US Question AND Answer (If you see same 100% description in other company website on alibab, they copy us, please kindly check and compare.)
1.Question:Are your manufacture?
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the costomer service ?
Answer:
1).reply within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 15 years experience in this field
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 years
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).one year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4.Question:if our price is higher than another company or factories ?
Answer:
plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have break down, the most reason is the machine inner electric parts problem, but we use the world famous brand parts to install tomachines inner, so that can sure you can use the machines very long long years.
belive you will chooes the same value of the machine, not cheaper equipement
5.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days
