Double glass argon gas filling machine/insulated glass inactive gas filler machine/Double glass making machine (ZCJ02)
1.Product Description
1).It is special equipment for gas charging in insulating glass production.
2).Available for aluminum spacer insulating glass and rubber strip insulating glass.
3).Adopting imported microcomputer controller and high quality components, the equipment are automatically, stable and reliable.
4).With compact size and four universal wheels on the base, it is flexible and convenient in use.
5).It can charge four units of glass at a same time.
2.Technical parameters
Model number |
ZCJ02 |
Power voltage |
220V |
Power frequency |
50HZ |
Total power |
0.1KW |
Maximum number of insulating glass |
4 PCS |
Volume of argon flow |
0-15L/min |
Overall dimensions |
810 x 420 x 760mm |
Weight |
40kg |

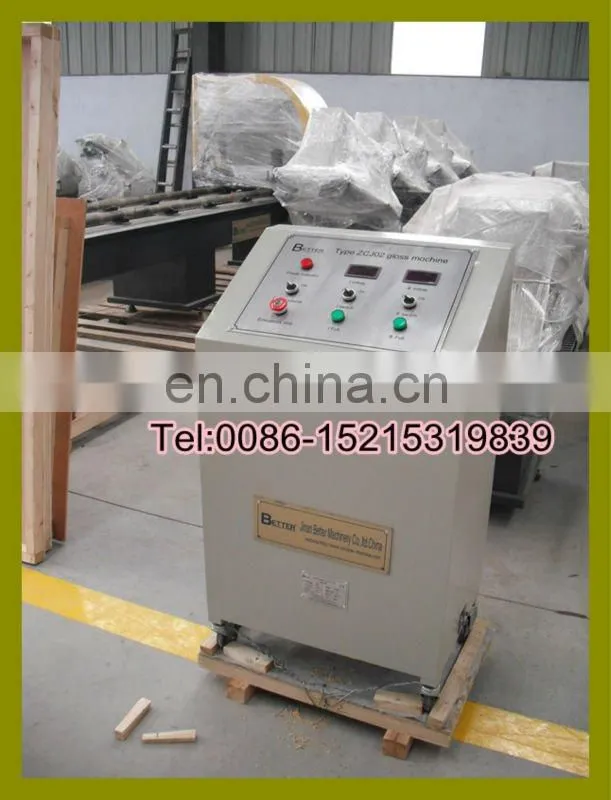

3.Model ZCJ02 photo
4.Insulating glass/double glass/hollow glass good advantages
1).sound insulation, noise reduction
2).keep warm
3).dust prevention
4).reduce thermal radiation

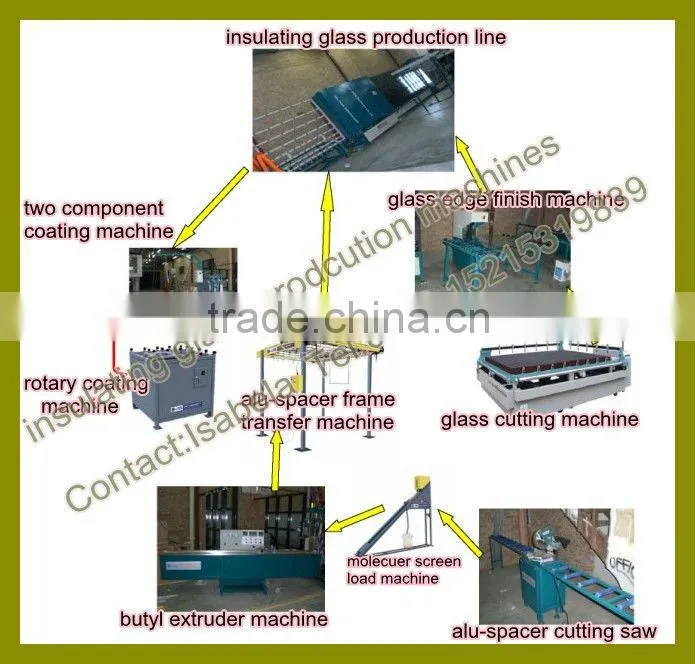

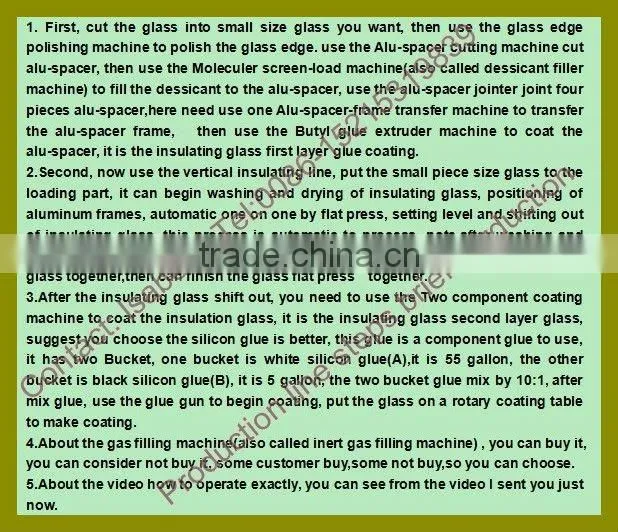

5. Related insulating glass processing flow chart
Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.
About the full insulating glass production steps, here I can give you a brief introduction for your reference:
If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:

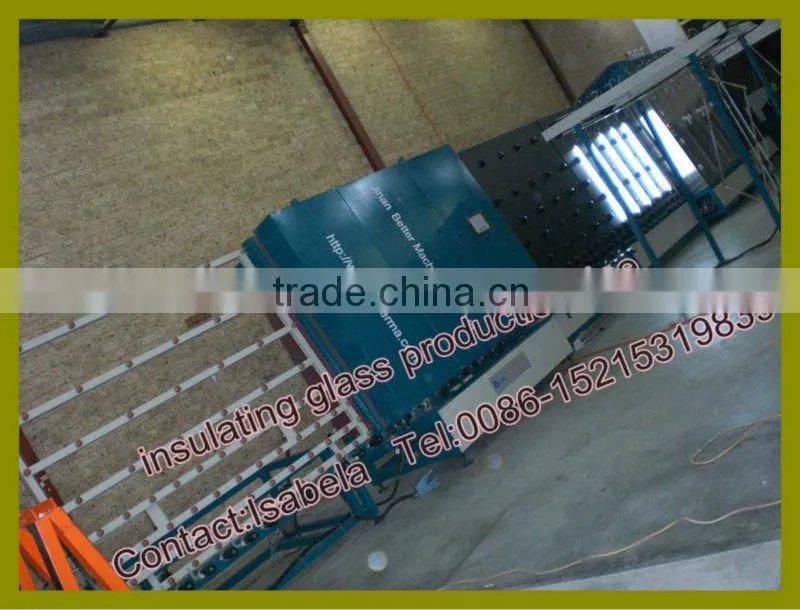

1).insulating glass/double glass/hollow glass production line, model: LB1800P

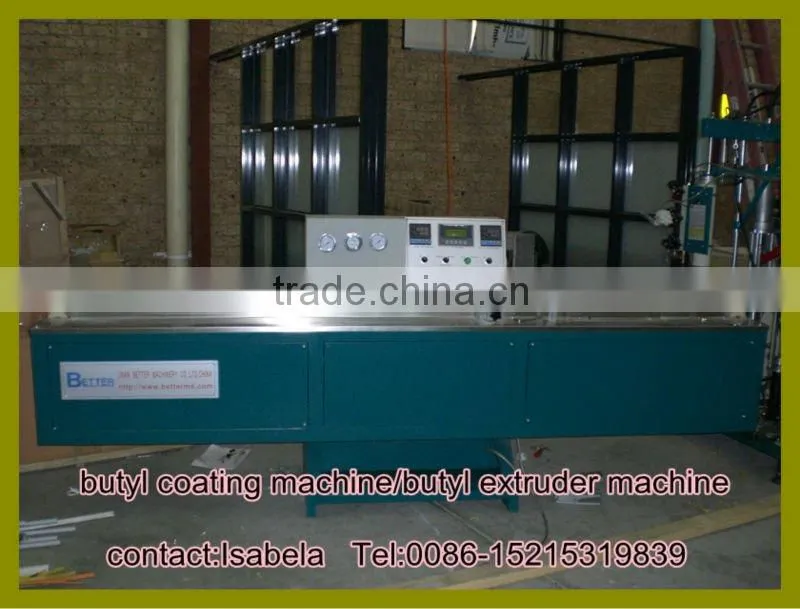

2). Butyl glue extruder machine, model : JT01

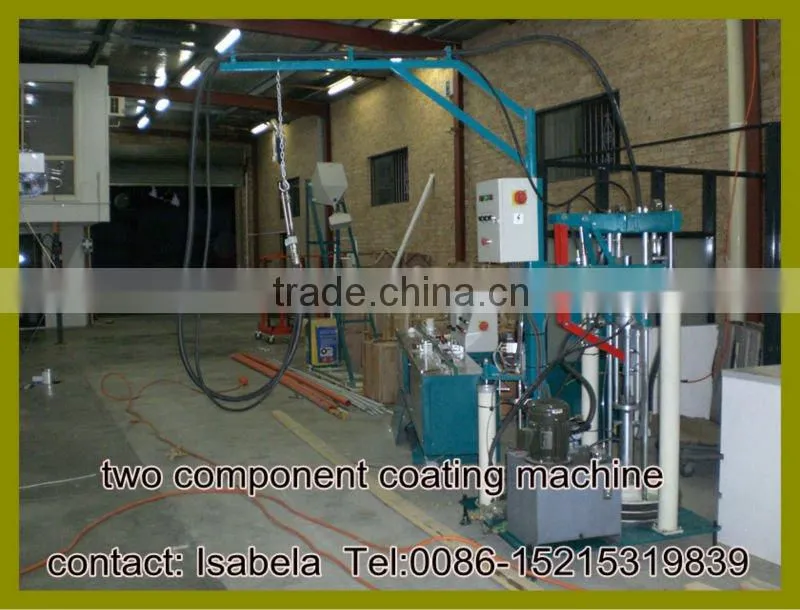

3).Two component glue coating machine, model: ST01

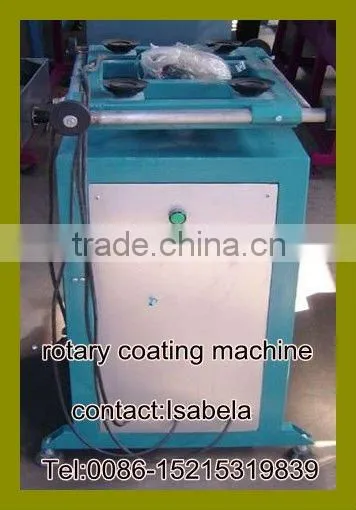

4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)
5).Glass edge polishing machine, model: SM95
Note: If you want to make the double glass inner perfect vacuum, you can add to buy the argon filling machine. After coating the second layer sealant glue(two component glue), then use the argon filling machine to fill the argon, so that make sure the glass inner best perfect vacuum.

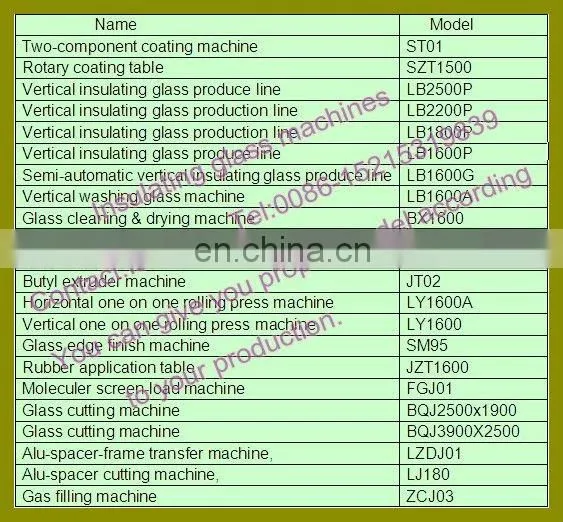

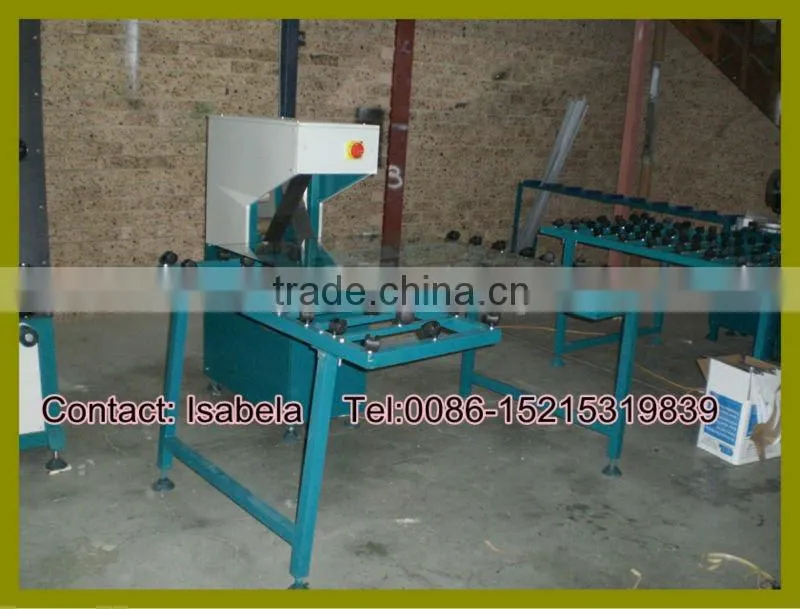

6.glass production needs machines as following

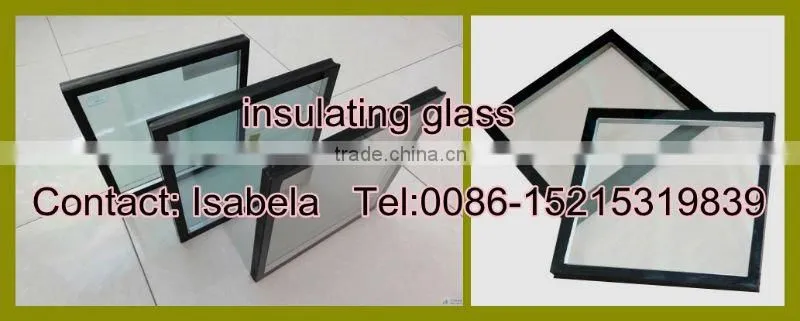

7.Insulating glass/double glass product

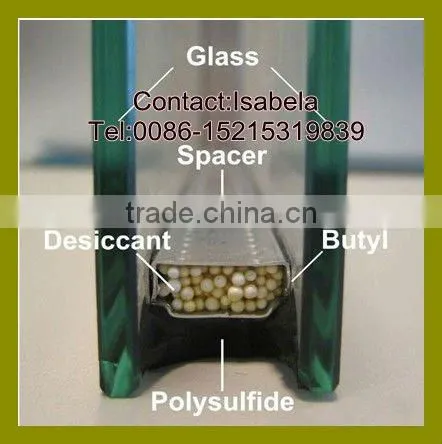

8.Insulating glass structure
9. Contact information
