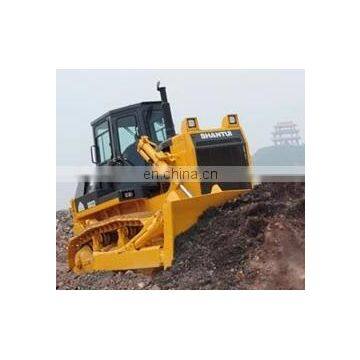

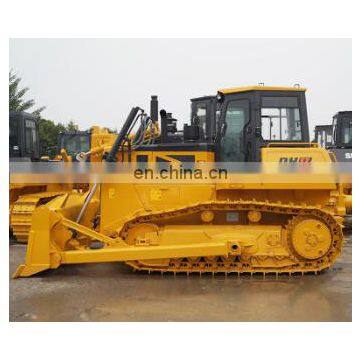

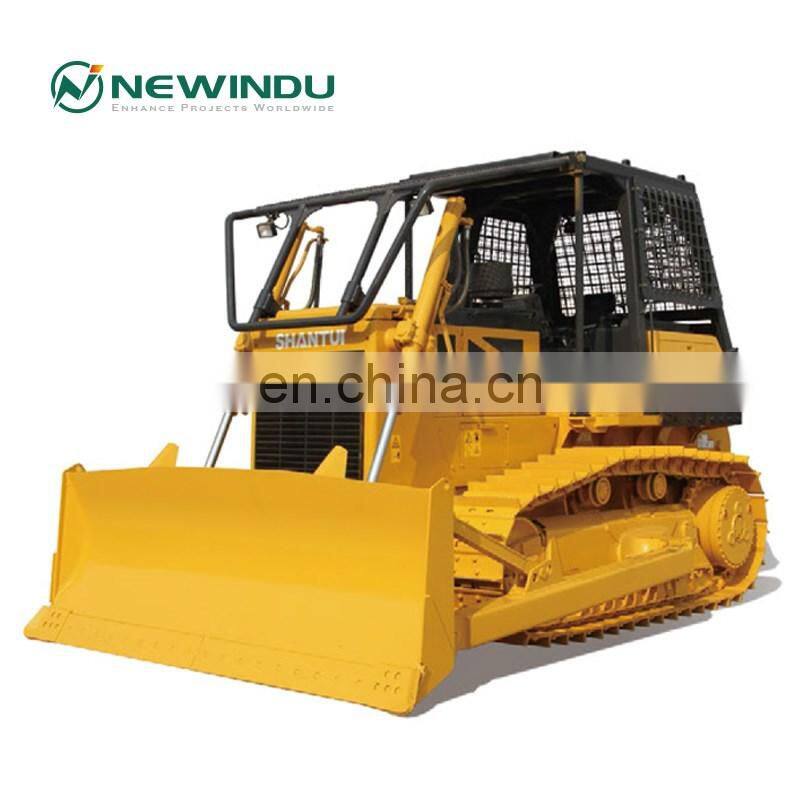

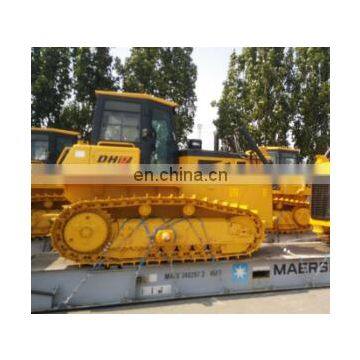

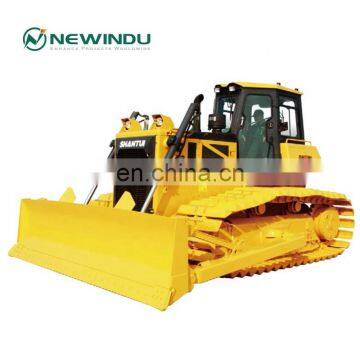

Shantui Brand New 170hp Radio Controlled bulldozer DH17 with CE
The brand-new full-hydraulic DH17 bulldozer adopts the dual-circuit electric-control static-pressure drive system that could intelligently match the change of load, and could perform the loaded and pivot steering, featuring the high working efficiency and the low fuel efficiency. The working equipment is controlled through the hydraulic pilot, easy and sensitive. The damping and sealed cab has large room, featuring safety and comfort. The modular structures enjoy the low ratio of failure and easy maintenance.
DH17 bulldozers are mainly applicable for backfilling of the earthwork and for transporting of other bulk material in terms of roads, railways, water conservancy, soil development and factories. This machine has excellent performance due to the small slewing radius. The DH17, DH17L, DH17F and DH17R are of hydraulic – driving 170hp bulldozers, where the DH17 is standard bulldozers.
Performance parameters |
Net power/rated speed(KW/h) |
127/170 |
Operating weight(kg) |
18000 |
|
Ground pressure(kpa) |
64 |
|
Ground length(mm) |
2675 |
|
Overall dimensions |
Overall length(mm) |
5250 |
Overall width(mm) |
3420 |
|
Overall height(mm) |
3080 |
|
Travelling performance km/h |
Forward |
0~10 |
Reverse |
0~10 |
|
Grade ability(degree) |
30 |
|
Ground clearance(mm) |
370 |
|
Working device |
Blade type |
Angle blade |
Blade width(mm) |
3400 |
|
Blade height(mm) |
1200 |
|
Working capacity(m3) |
4.4 |
|
Maximum lifting height(mm) |
1010 |
|
Maximum digging depth(mm) |
520 |
|
Ripper type |
Three- tooth ripper |
|
Maximum inclination(mm) |
460 |
|
Digging depth(mm) |
475 |
|
Lifting height(mm) |
570 |
|
Chassis system |
Track gauge(mm) |
1880 |
Width of track shoes(mm) |
510 |
|
Track pitch(mm) |
213 |
|
Number of track rollers(one- sided) |
7 |
|
Tank capacity |
Fuel tank(L) |
320 |
Working hydraulic oil tank(L) |
85 |
|
Travelling hydraulic oil tank(L) |
65 |
