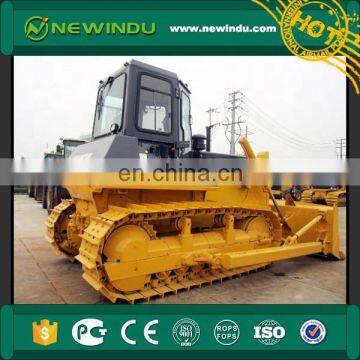

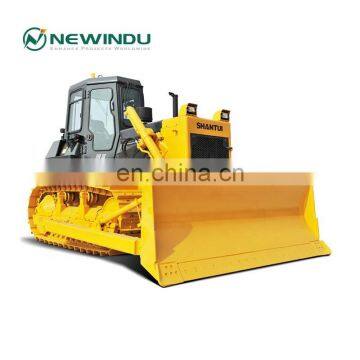

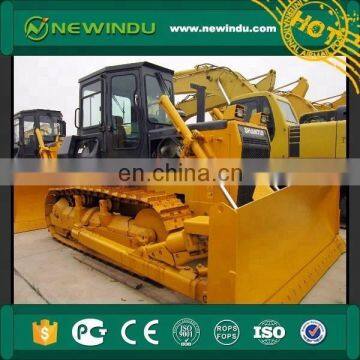

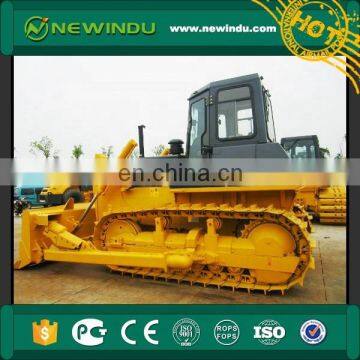

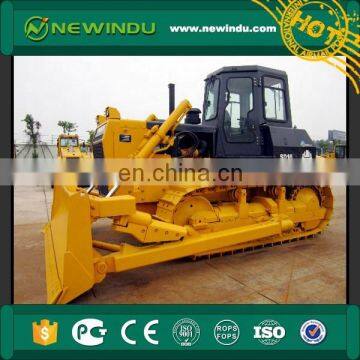

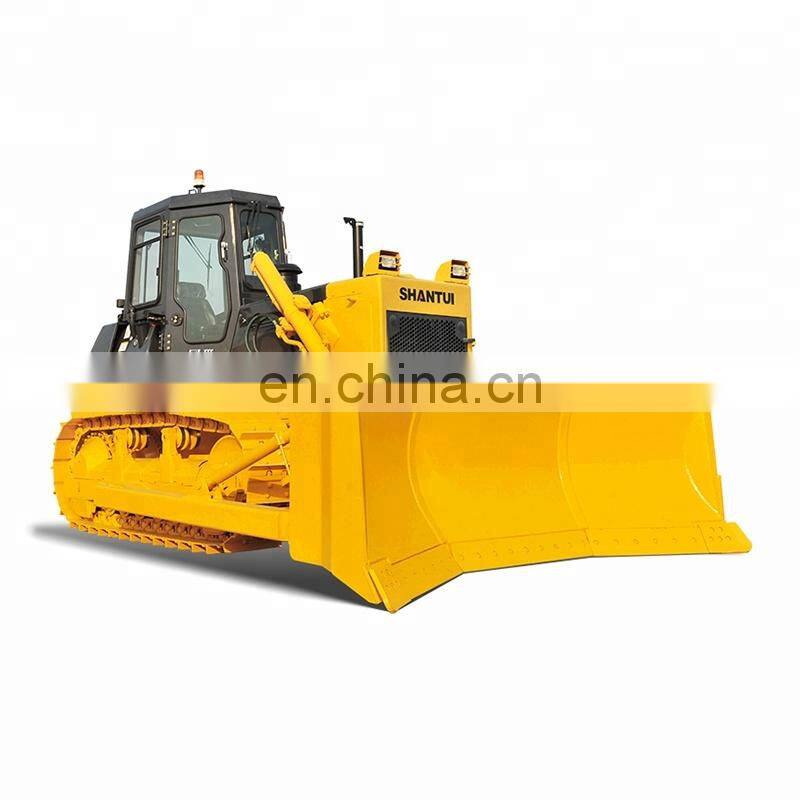

2019 Hot Sale 160HP Shantui Crawler Bulldozer SD16 with Favorable Price
The full box-type main frame adopts full box-type integral structure welded from steel plates and is welded together with the real axle housing to realize high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively improves the stability of small-sized bulldozers under complicated working conditions.
The standard straight tilting blade features powerful cutting force and the three-shank ripper can be used for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.
L×W×H (Ripper not included) |
mm |
5140×3388×3032 |
Operating weight (Ripper not included) |
t |
17 |
Engine |
- |
Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
Rated power |
kW/rpm |
120/1850 |
Grade ability |
° |
30 |
Blade type |
- |
Straight tilt blade U blade Angle blade |
Blade width |
mm |
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
Dozing capacity |
m3 |
Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
Ma× drop below ground of blade |
mm |
540 |
Lift height of blade |
mm |
1095 |
Ripper type |
- |
Three-shank ripper |
Ripping depth of ripper |
mm |
572 |
Lifting height of ripper |
mm |
592 |
Number of carriers (each side) |
- |
2 |
Number of track rollers (each side) |
- |
6 |
Number of track shoes (each side) |
- |
37 |
Width of track shoe |
mm |
510 |
Track gauge |
mm |
1880 |
Ground length and ground pressure |
mm/MPa |
2430-0.067 |
Pitch |
mm |
203.2 |
Forward speed |
km/h |
0–3.29 |
0–5.82 | ||
0–9.63 | ||
Reverse speed |
km/h |
0–4.28 |
0–7.59 | ||
0–12.53 | ||
Net Engine Output at Rated RPM |
- |
148HP(110.5KW) |
