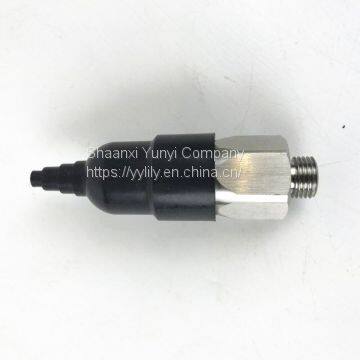

High Pressure Pump Mini Pressure Switch
US$ 18.3 - 20.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
FM701B
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
3 days
Related Products
-
12v Steam Air Compressor Pressure SwitchUS$ 18.3 - 20.3MOQ: 1 Piece -

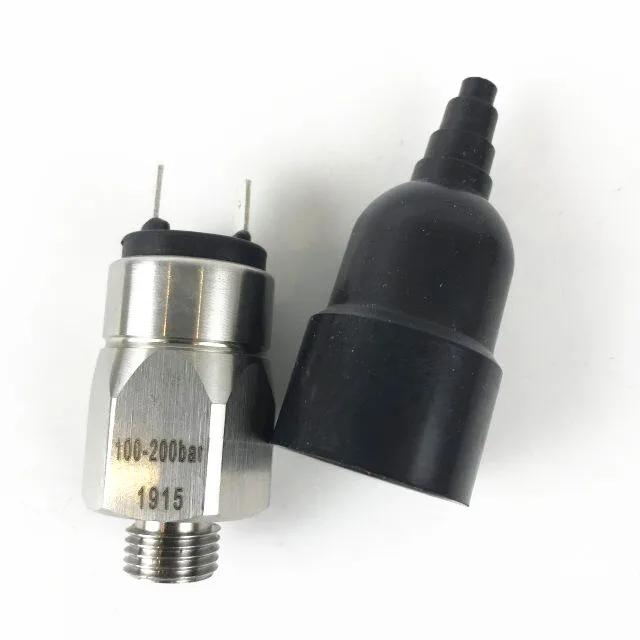

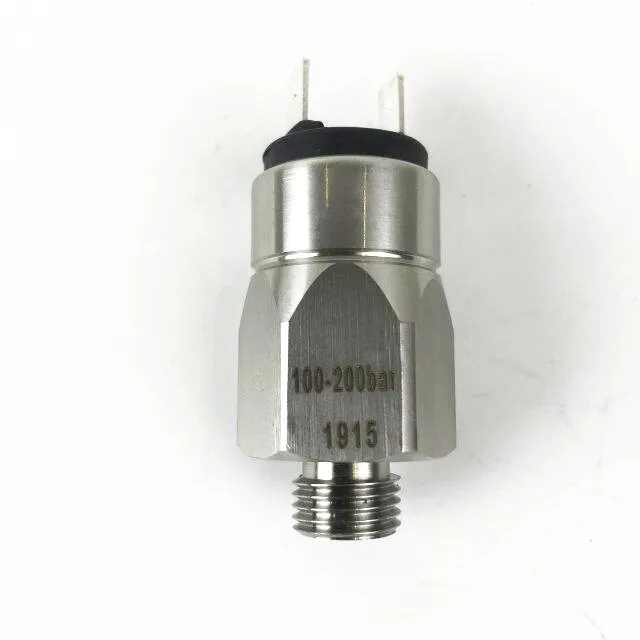

Low Air Water Pressure SwitchUS$ 18.3 - 20.3MOQ: 1 Piece
-
Liquid Turbine Flow MeterUS$ 123.3 - 560.3MOQ: 1 Piece
-
Oil SS Differential Pressure GaugeUS$ 180.3 - 263.3MOQ: 1 Piece
-
Water Differential Pressure GaugeUS$ 180.3 - 263.3MOQ: 1 Piece
Brand Name
Yunyi
Place of Origin
China
Model Number
FM701B
Max. Voltage
42V
Max. Current
4A
Max. Working Pressure
30mpa
High pressure pump mini pressure switch
Description
Diapragm type perssure switch with 6.4mm blade terminal and 300bar of maximum safety pressure
Body |
Zinc-plated Steel/Stainless Steel |
Contact |
silver cadmium alloy, can be gold plated |
Max voltage |
42V |
Max currency |
4A |
Working temperature range |
-40℃--+100℃(baesd on different diaphragm) |
Life endurance |
1000000 |
Electrical life endurance |
100000 |
Pollution situation |
normal |
IP level |
IP00(without cover) |
With cover |
IP54(rubber cover) |
With cover |
IP67(potting resin cover) |
Applicabel rule |
EN 60730-1 |
Max working pressure |
150bar |
Burst pressure |
300bar |
Weight |
~85gr |
Deatailed images
