liquid turbine flow meter
Description turbine liquid oil flow meter
Turbine liquid oil flow meter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

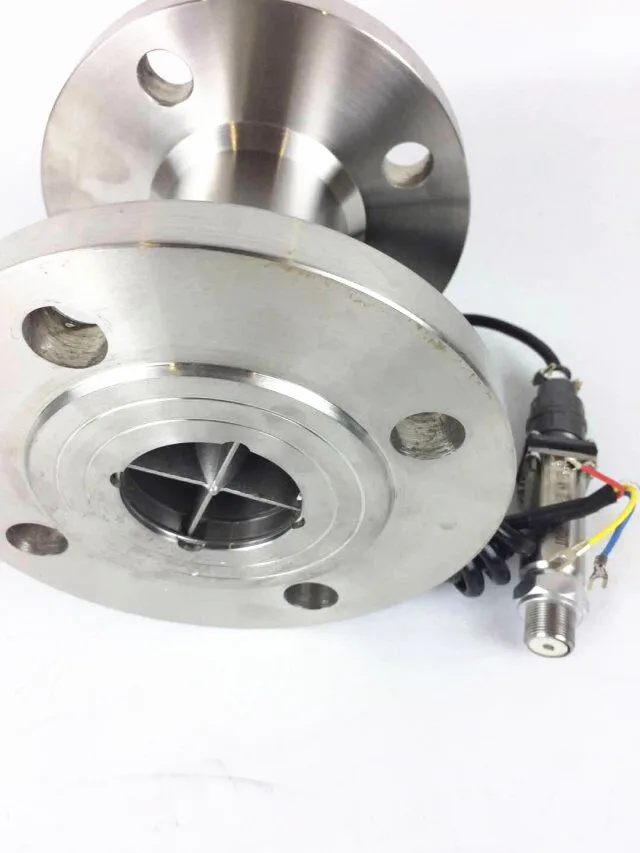

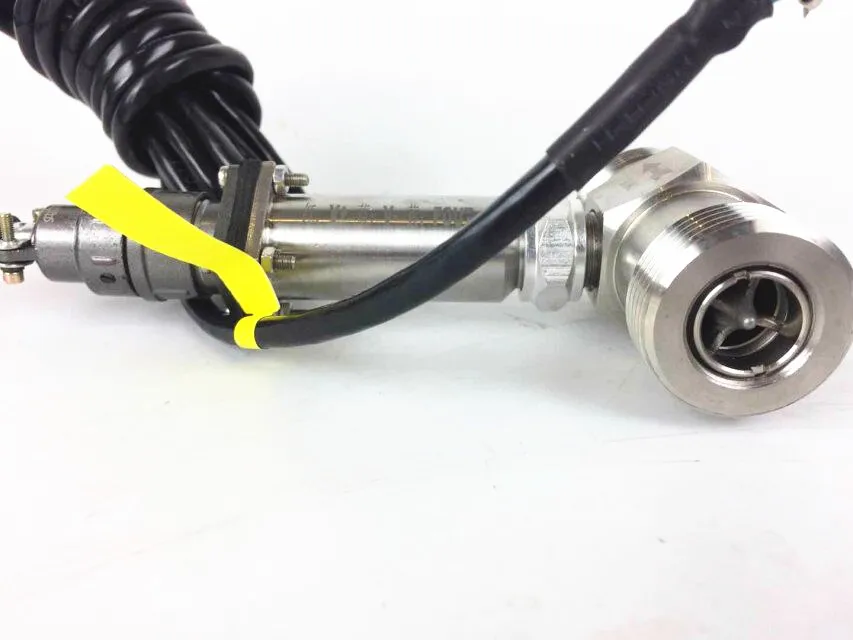

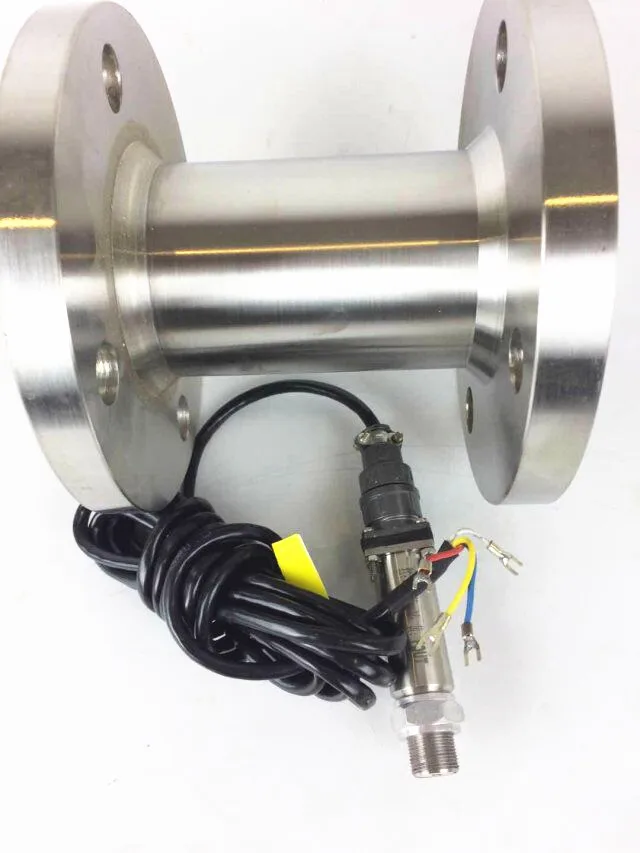

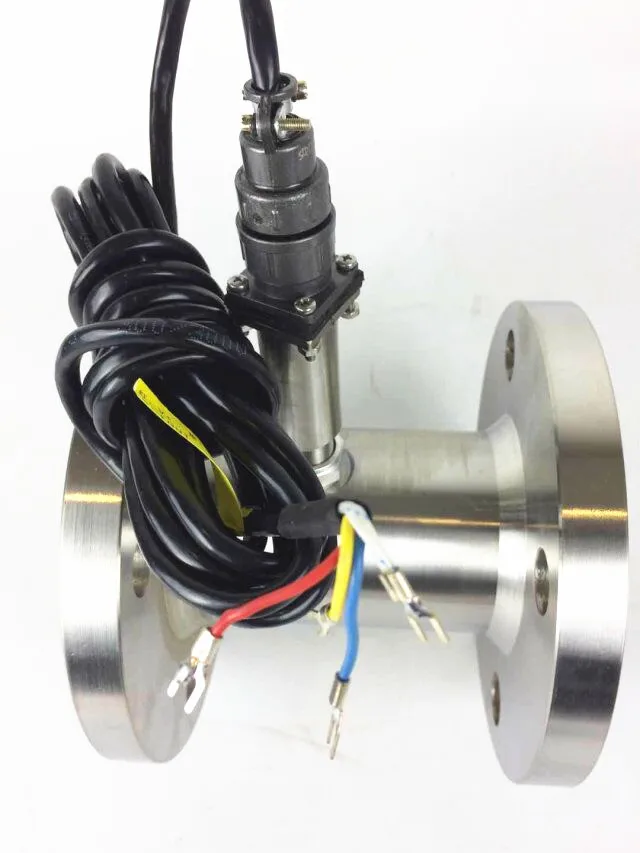

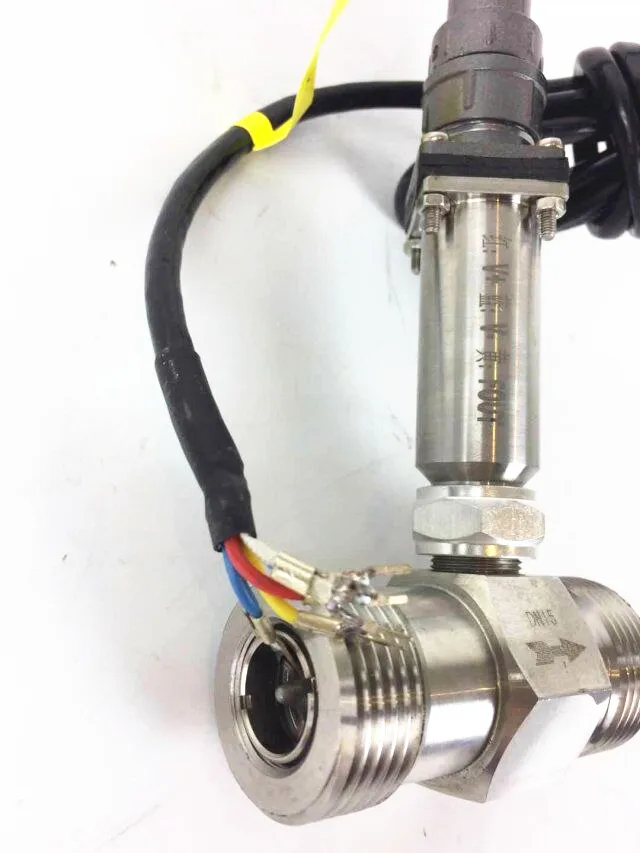

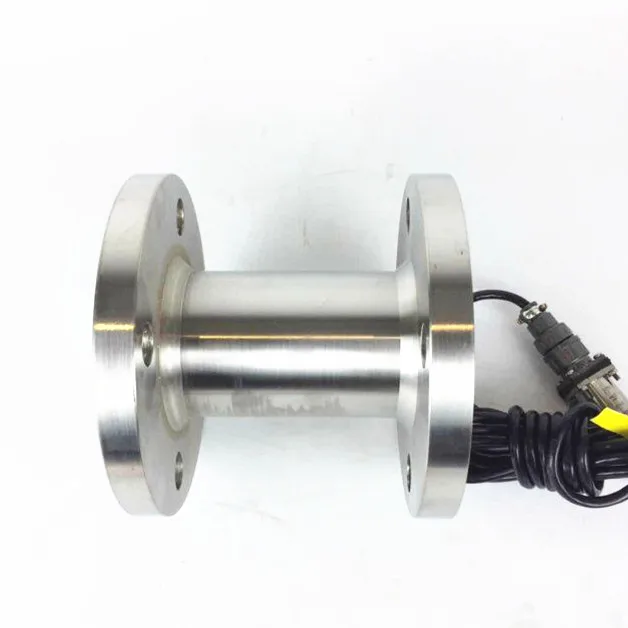

Detailed Images turbine liquid oil flow meter
Specification turbine liquid oil flow meter
Measure medium: | liquid or gas |
Nominal diameter: | DN4 -- DN200mm |
Measurement accuracy: | 0.2, 0.5, 1.0 (preferred) |
Medium viscosity: | less than 5 × 10-6m2 / s (for the liquid with >5 × 10-6m2 / s , the flowmeter needs to be calibrated before using) |
Nominal pressure: | 1.0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa |
Medium temperature: | -20 ℃ ~ +120 ℃ (stainless steel measuring tube) |
Environmental conditions: | Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa; |
Power supply: | 3.6V lithium battery; 12VDC; 24VDC; |
Output signal: | three-wire pulse output, two-wire 4-20mA output |
Ingress protection : | IP65 (IP67, IP68 ); |
Applications turbine liquid oil flow meter
turbine liquid oil flow meter
In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.
