China 4-20mA Differetial oil water pressure sensor
Description China 4-20mA Differetial oil water pressure sensor
China 4-20mA Differetial oil water pressure sensor is consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performancemicroprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

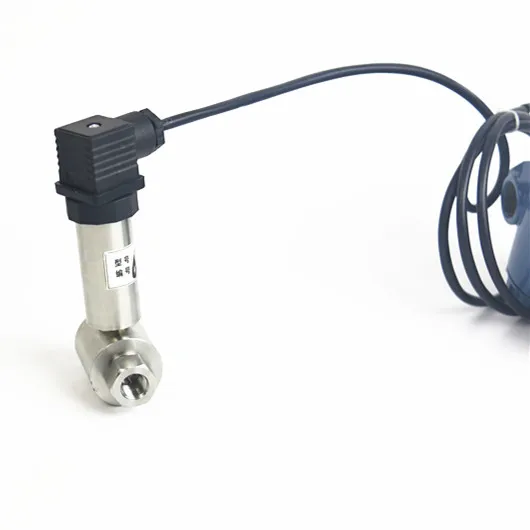

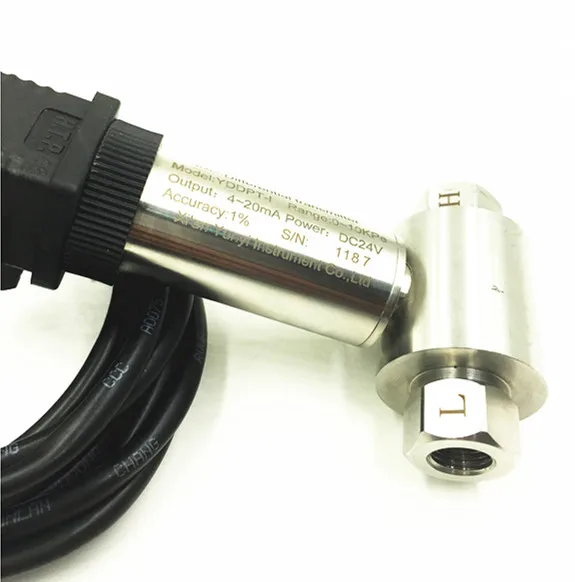

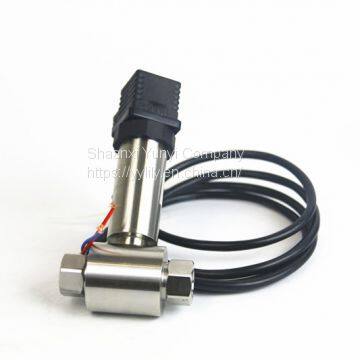

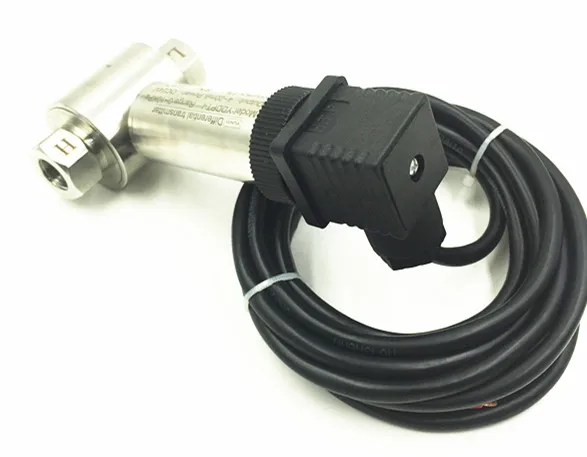

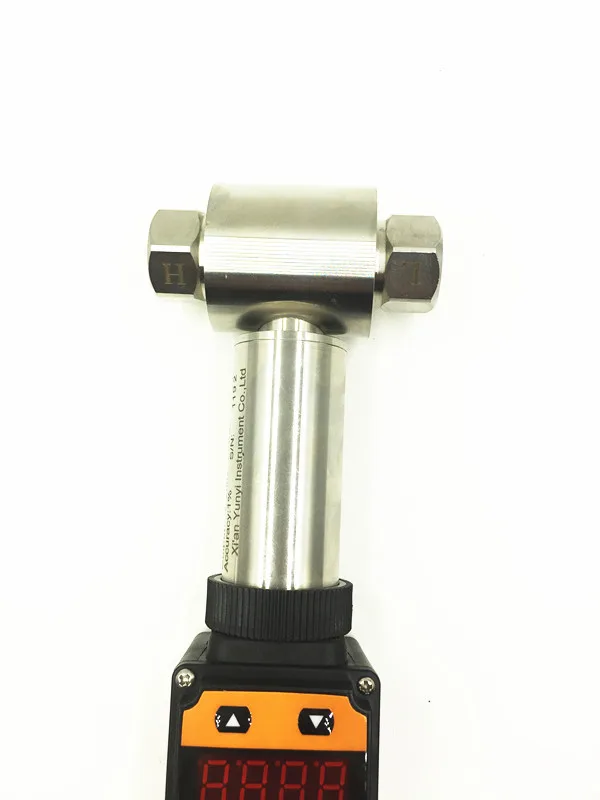

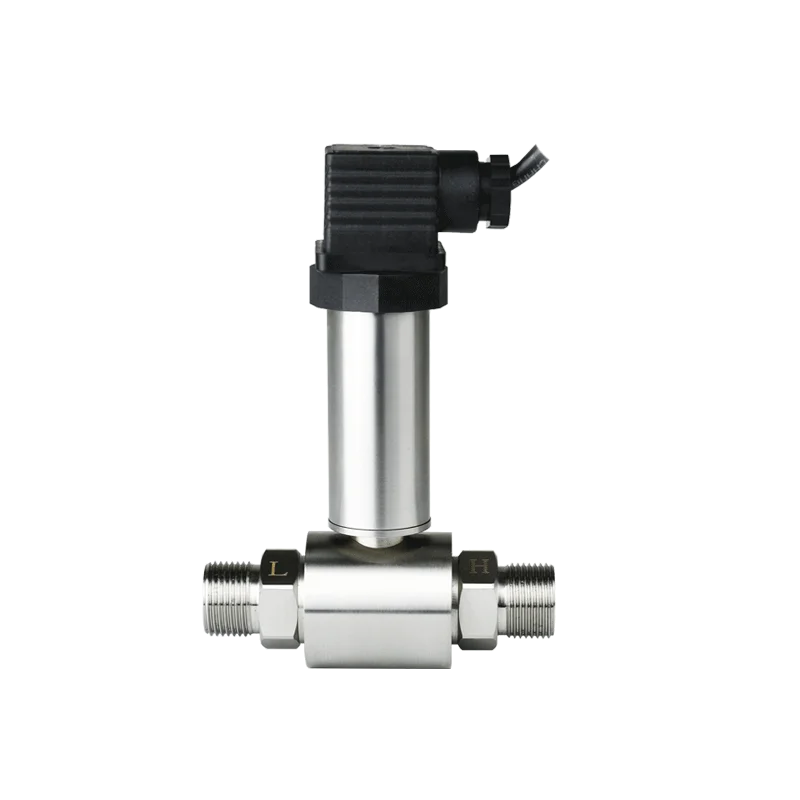

Detailed Images 4-20mA Differetial oil water pressure sensor
| Range: | 0~20Kpa…..35Kpa...~2MPa |
| Medium : | Liquids or gases compatible with 316LSS |
| Proof pressure: | 1.5X rated range or 7MPa(Which ever is less) |
| Accuracy : | ±0.25%(Typical) ±0.5%(Max.) |
| Static pressure: | 5X rated range or 7MPa which ever is less |
| Long term stability: | ±0.5%F.S/Y(≤200KPa) ±0.2%F.S/Y(≤2000KPa) |
| Zero temperature Drift: | ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa) |
| Span temperature Drift: | ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa) |
| Operating temperature range : | -20℃~80℃ |
| Storage temperature range: | -40℃~120℃ |
| Power supply: | 15~36VDC |
| Output signal : | 4~20mA 0~10/20mA 0/1~5/10VDC |
| Pressure port : | G1/4 Female 6 air cock or customize |
| Housing material : | 1Cr18Ni9Ti Stainless steel , aluminium casting or plastic |
| O ring : | Fluororubber |
| Diaphragm material : | 316L |
| Cable : | Polyethylene ventilate cable |
| Insulation resistance: | 100MΩ,100VDC |
| Protection: | IP65 |
Applications China 4-20mA Differetial oil water pressure sensor
China 4-20mA Differetial oil water pressure sensor
Compatible with 316LSS,noncorrosive gases & liquids
Wind pressure & velocity of flow in industry process
Measuring pressure of pipeline &firepot
Petroleum industry, chemical industry
Meteorological monitoring

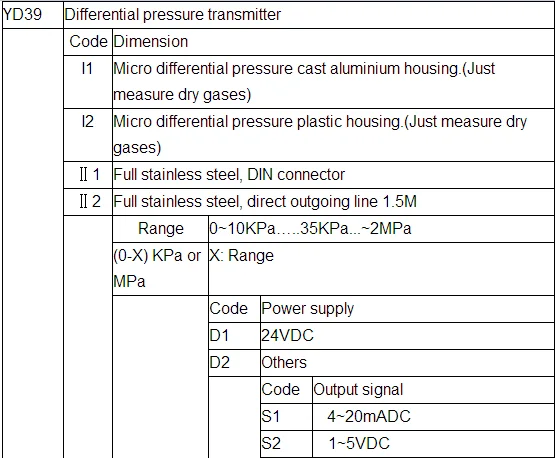

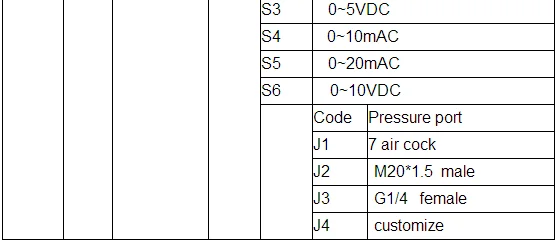

Selection Guide 4-20mA Differetial oil water pressure sensor
