Oil SS differential pressure gauge
Description Oil SS differential pressure gauge
CYW-150B differential pressure gauge is suitable for chemical industry, chemical fiber, metallurgy, electricity, nuclear power and other industrial sectors in the process of measuring a variety of liquid (gas) medium differential pressure, flow and other parameters. The instrument structure is all made of stainless steel, the test system (double corrugated pipe and connecting parts), pressure pilot system (including joint, pipe) made of special stainless steel, has strong corrosion resistance and anti erosion effect of work environment. The instrument has the advantages of reasonable design, advanced technology, small size, light weight, good stability, long service life, novel appearance and strong adaptability. The connection form of the instrument connector is parallel (which can be directly connected with the three valve group) and the oblique type, and the utility model can be used for the matching installation of different users.

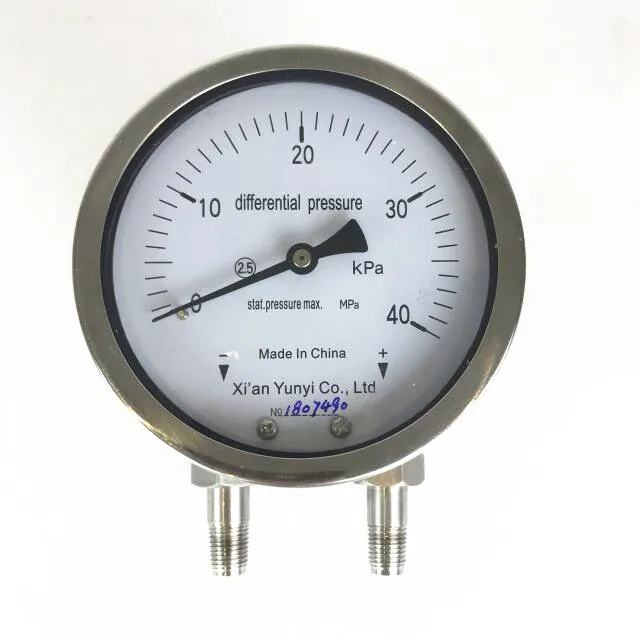

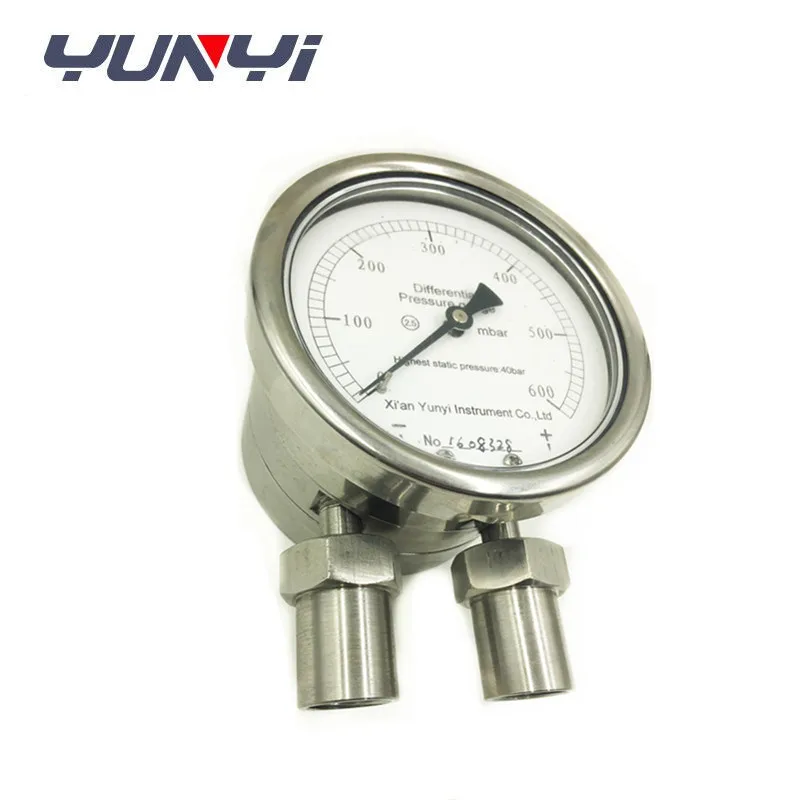

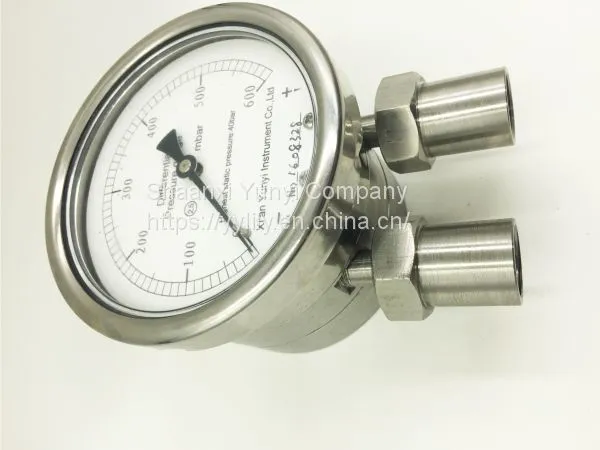

Detailed Images Oil SS differential pressure gauge
Specification Oil SS differential pressure gauge
1.Differential pressure measuring range, nominal working pressure, accuracy grade and joint thread:
Measuring range |
Nominal working pressure |
Accuracy class |
Joint thread size |
||
|
0-10 0-16 0-25 0-40 0-60 0-100 |
Kpa |
60 100 160 250 400 600 |
Kpa |
2.5 |
M20*1.5 NPT1/2 |
|
0-0.16 0-0.25 0-0.4 0-0.6 0-1 0-1.6 0-2.5 |
Mpa |
1 1.6 2.5 4 6 10 10 |
Mpa |
||
2. Guide system and shell material:
Part name |
Material grade (code) |
Joint, catheter |
Ocr17Ni12Mo2 (316) |
corrugated pipe |
OOCr17Ni14Mo2 (316L) |
Case, watch cover, watch ring |
Ocr18Ni9 (304) |
Outline drawing Oil SS differential pressure gauge
Applications Oil SS differential pressure gauge
Mainly is suitable for chemical industry, chemical fiber, metallurgy, electricity, nuclear power and other industrial sectors in the process of measuring a variety of liquid (gas) medium differential pressure, flow and other parameters.
Selection Guide Oil SS differential pressure gauge
1. What's the dial size do you need?
2. What's pressure range do you need?
3. What's thread conenction type do you need?
