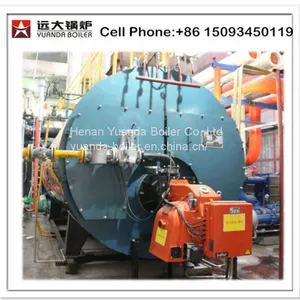

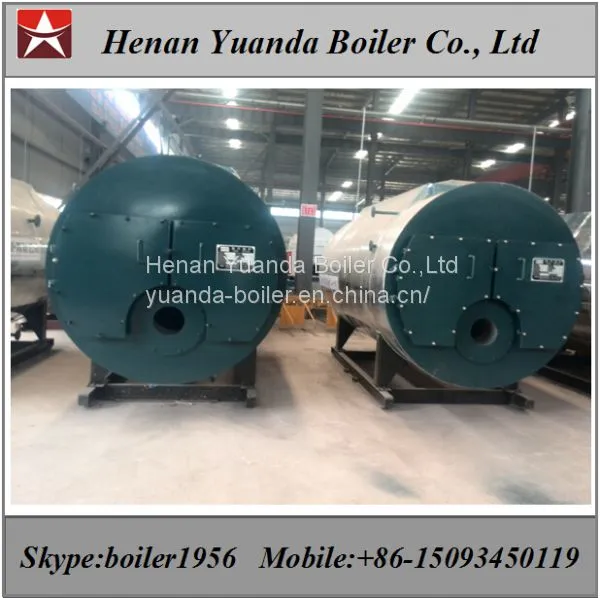

150 bhp Fire tube 2000kg 2 ton Oil fired steam boiler

Fire tube 2000kg 2 ton Oil fired steam boiler

2 ton diesel oil fired boiler Advantages:

1. Large volume combustion chamber

2. Imported combustion machine

3. High thermal efficiency, stable output, strong load adaptability

•

•

• 2 ton Industrial Steam Boiler WNS2-1.0-Q(Y)

• WNS Series Steam Boiler Technology Parameter Table
  Boiler model	Rated  capacity	Rating  pressure	Feed  temperature	Steam  temperature	Active grate area					Thermal  efficiency	Weight	Dimensions
  					Light oil	Heavy oil	Natural gas	Liquid gas	City gas
  	t/h	MPa	℃	℃	Kg/h	Kg/h	m3/h	m3/h	m3/h	%	Ton	mm
  WNS1-1.0-Y(Q)	1	1	20	184	65.5	67.3	84.2	29	176	91	4.3	3561×1690×1910
  WNS 2-1.25- Y(Q)	2	1.25	20	194	129.6	132.2	165	57.3	346	92	7.2	4111×1950×2199
  WNS3-1.25-Y(Q)	3	1.25	20	194	192	195	250	82	510	92.1	8	4330×2248×2564
  WNS4-1.25- Y(Q)	4	1.25	20	194	256	261.9	323.6	109	682	93	9.6	4732×2150×2448
  WNS5-1.25- Y(Q)	5	1.25	20	194	318	322	386	140	87	93	12.5	5970×2360×2796
  WNS6-1.25- Y(Q)	6	1.25	20	194	380	390.6	450	164	1020	93.2	16.5	5500×2600×2990
  WNS8-1.25- Y(Q)	8	1.25	105	194	503	517	642	209	1321	93.5	24.8	6450×2800×3200
  WNS10-1.25- Y(Q)	10	1.25	105	194	628	643	805	264	1654	93.5	26.8	6800×2900×3394
  WNS15-1.25- Y(Q)	15	1.25	105	194	940	965	1182	400	2417	93.5	38	7150×3200×3540
  WNS20-1.25- Y(Q)	20	1.25	105	194	1250	1301	1597	520	3299	93.5	55	8200×3400×3826

•

Safety:

It adopts wet back & three -pass structure which ensures boiler safe operation and extend service life.

High Efficiency:

Boiler equips Energy Saver which can improve boiler thermal efficiency more than 2~3% & decrease the temperature of exhaust smoke.Steam boiler work efficiency is more than 93%.

Environmental Protection:

Boiler equips European Burner, fuel combustion can achieve automatic adjustment to save energy, also decrease the dust emission & SO2 emission & NOx emission.

Control:

Boiler is equipped with advanced automatic control system, automatic adjustment setting pressure boiler operation.

Our Service

1.Any products quality problems manufactured and sold by our company ,our company will execute "Three Contract "service, our sales service three contract team will be in charge of this job.

2.The minute we received products quality information from our customers(by means of call, mail or oral notice),we will dispatch related staff to settle the problem on site at once.

3.After sale service staff must settle related quality problem carefully, considerately, guarantee clients timely use without further worry.

10 bar 2 ton Diesel Oil fired steam boiler
