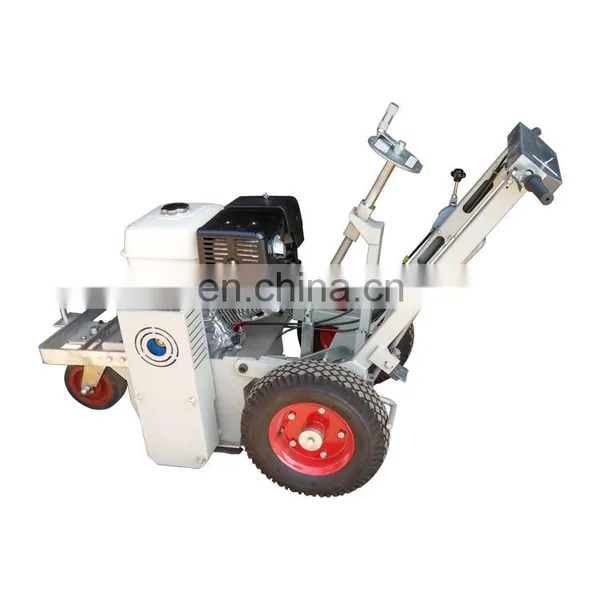

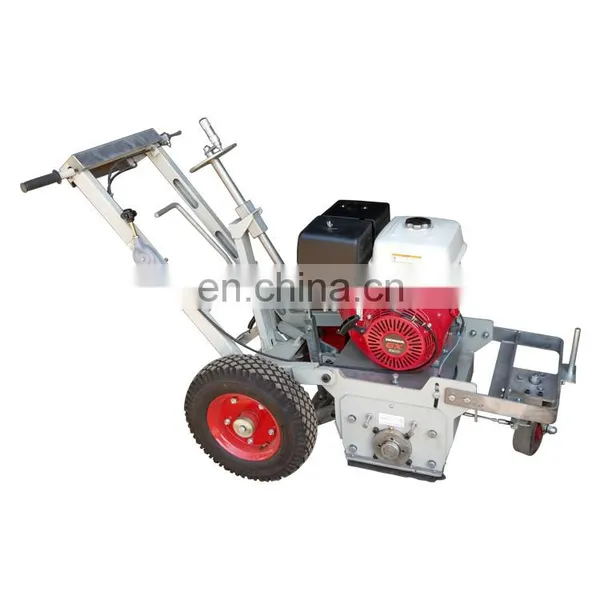

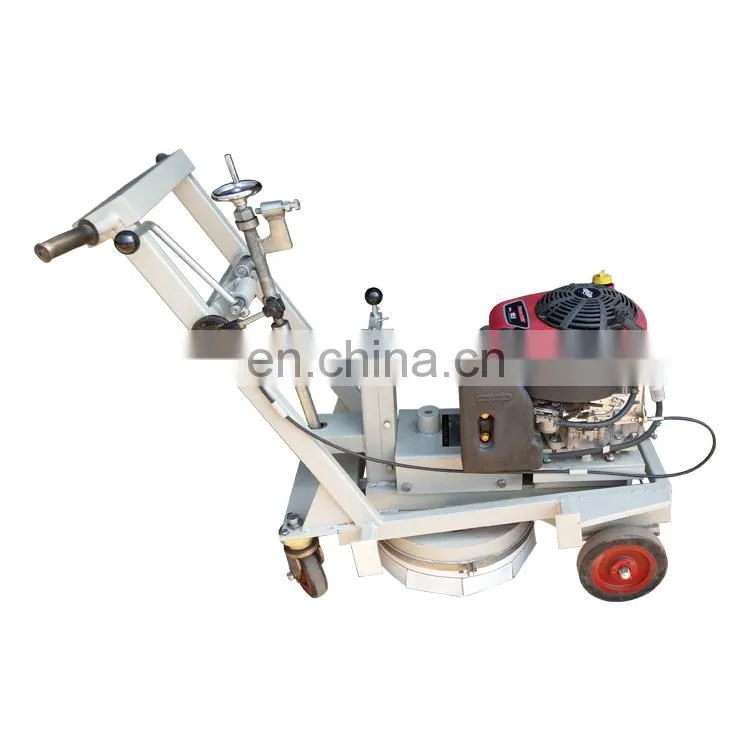

Road Pavement Marking Line Paint Remover Machine

Overall Measurement: 1420×680×990mm
Gasoline Engine Power:95kw
Grinding Depth: 8-10mm(Adjustable)

Grinding Width: 240MM
Removal Speed:300-350m/h(15cm wide solid line)
Grinding Head:23-30km(Used Correctly)
Complete Machine Weight:180kg

XDCXJ-240A Hot-melt marking line removal machine is a special equipment to remove the existing lines on highway and urban road when it is necessary to repair or change the hot-melt marking lines. The machine equiped with America B&S Gasoline Engine in order to extend the service lift and enhance the grinding quality. Meanwhile, the grinding head are made of hard metal alloy with original chip removal groove, easy to get rid off existing lines. The machine is powerful, fast small vibration, low noise, dust-proof, easy to operate, safe to use, which is ideal equipment to remove the existing line.

Instructions:
1,Handlebar
2,Grinding Depth Adjustment Crank
3,Crank Fixing Bolt
4,Spring Adjustment Handle
5,Automatic Pin For Loading And Unloading Grinding Head
6,Gasoline Engine
7,Belt Adjustment Bolt
8,Aseismic Rubber
9,Belt Wheel
10,V Shape Belt
11,Grinding Head
12,Dust Cover
13,Angular Wheel
14,Grinding Head Lifting And Dropping Handle
15,Throttle
