Brand Name
XD
Place of Origin
Liaoning, China
After-sales Service Provided
No overseas service provided
Warranty
1year
Weight
80kg, 80kg
Dimension(L*W*H)
1300*600*900mm
Certification
ISO, CE
Application
spray prime
Condition
New
Product Description

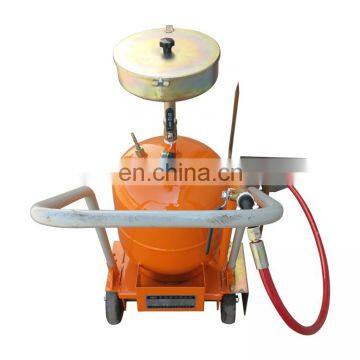

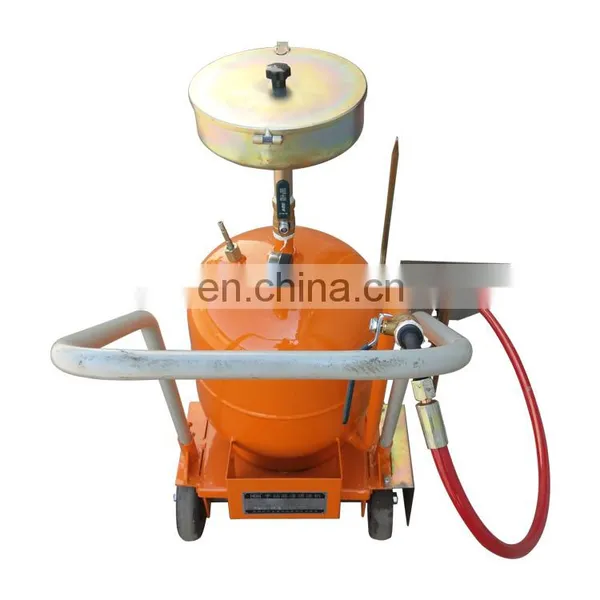

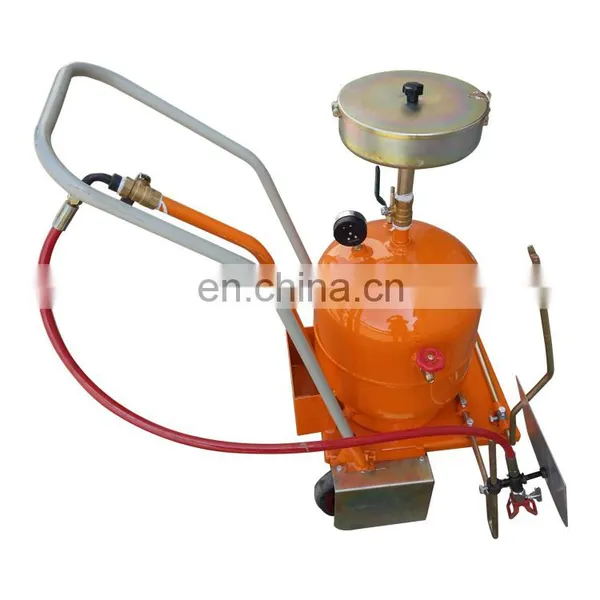

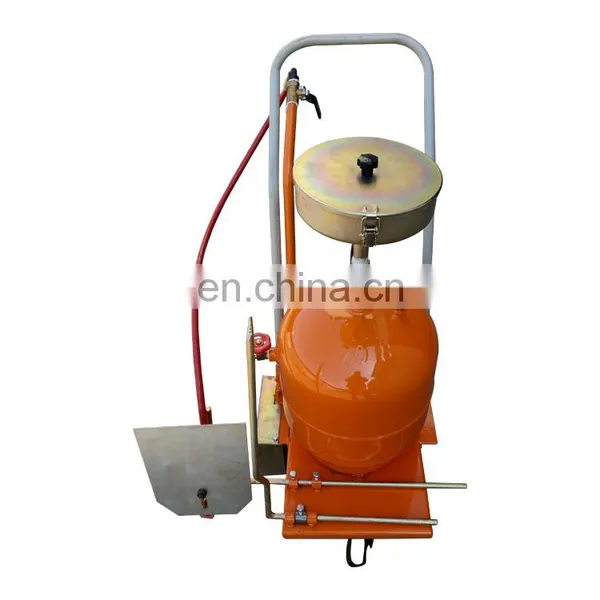

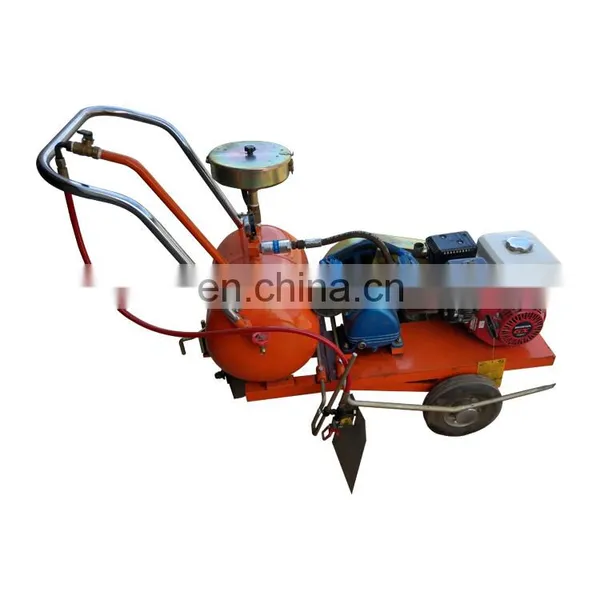

XDDQ-J Mechanical Primer Spraying machine is special equipmet for hot-melt marking line primer (base paint) spraying. The machine is made in compact structure, small and flexible, easy to use, energy saving, convenient to maintain.

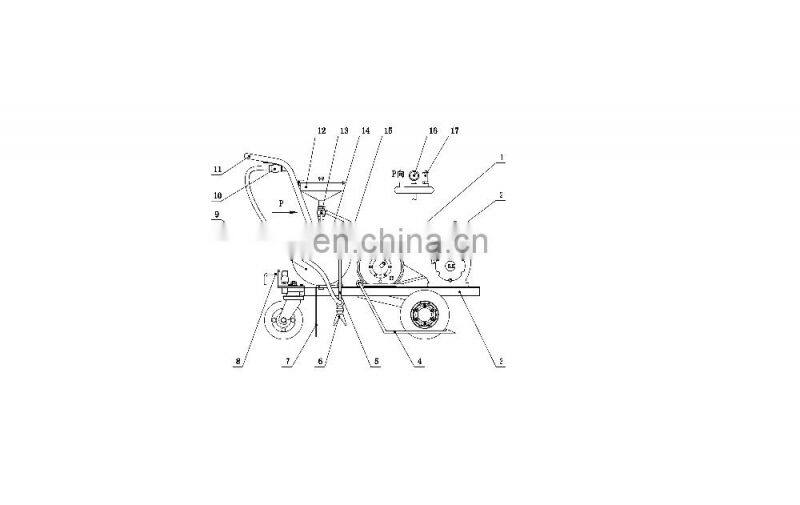

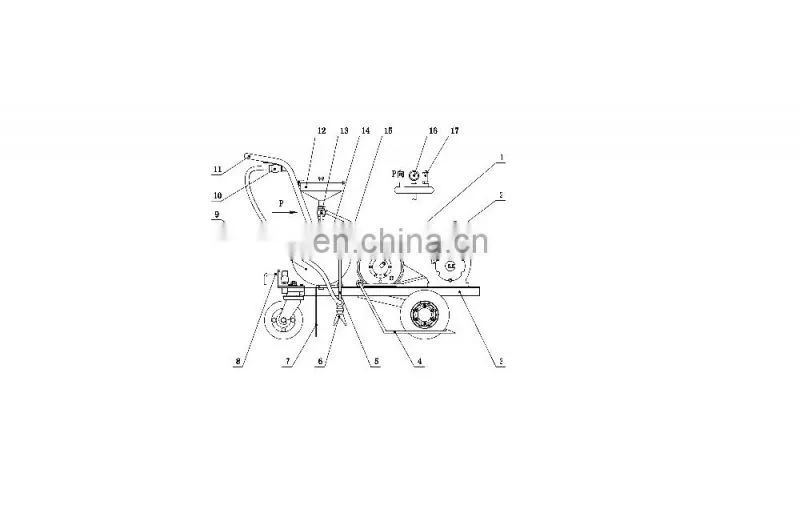

Product structure

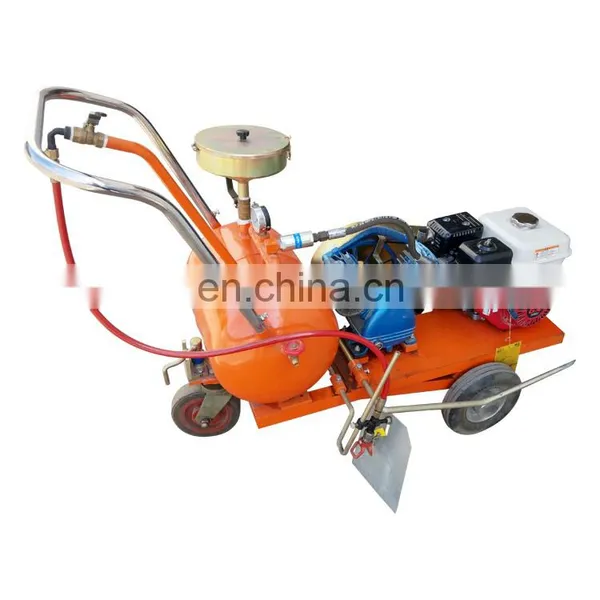

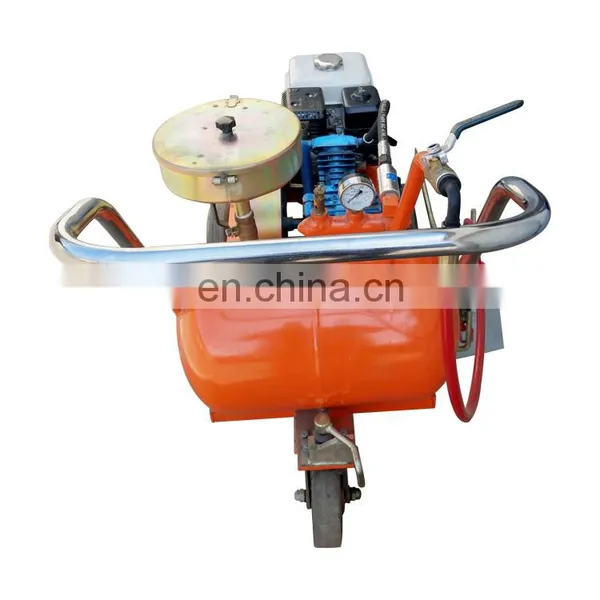

The machine is powered by Honda(Japan) Gasoline engine(GX160), use v-belt(A1295)convey to air pump(0.2-10Y)via air hose, one-way valve into paint(air) storage tank which contain around 30kgs primer, the primer is sprayed out by spraying gun(50H45)under air pressure.
Technical parameters
Overall measurement:1300×600×900mm
Gasoline engine power:5.5PS
Air pump flow:0.2m3/min
Air pump revolutions:1000r/min
Rated pressure:0.6Mpa
Maximum pressure:0.8Mpa
Spraying width:100-450mm(adjustable)
Spraying speed:40m/min
Volue(Liquid parts):25L
Weight:80kg
