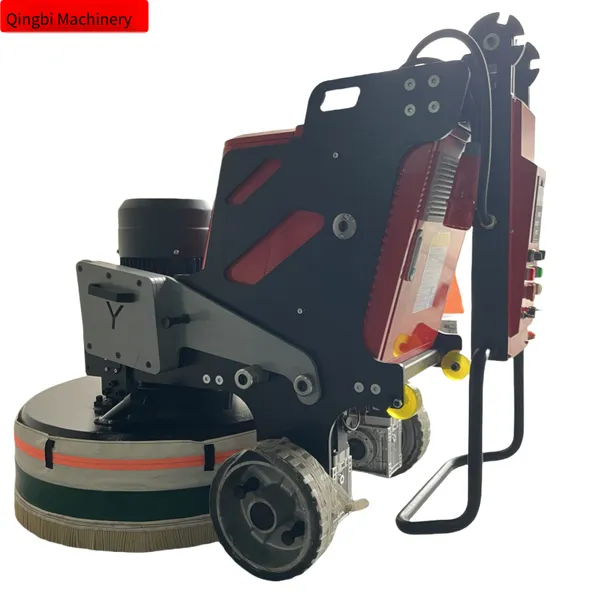

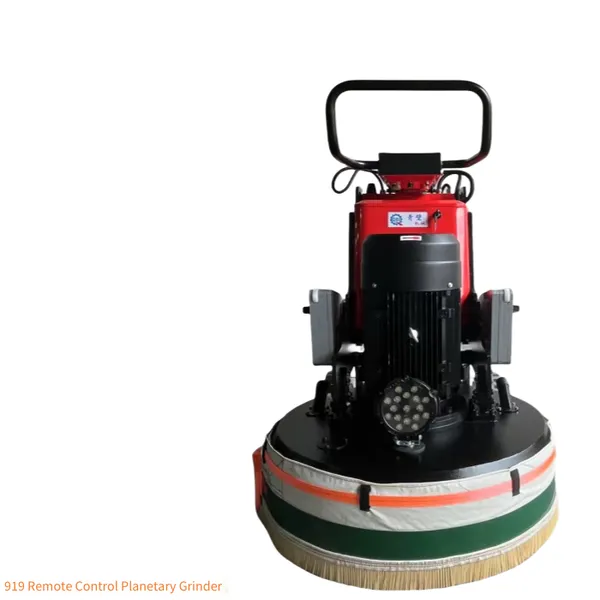

Help CenterQingbi Q900 Remote - Controlled Floor Grinder With Enlarged Gearbox, High - Power, Large Grinding Pressure and High Ash Output, Direct From the Source
Related Products
-
Rental of Green Wall Cutting Machines, Rental of Dust-absorbing Cutting Machines, Source Factory, Considerate ServiceUS$ 53.85 - 76.92MOQ: 1 -
Rental of Concrete Floor Planers and Surface Roughening Machines. High Power and Strong Motivation.US$ 61.54 - 92.31MOQ: 1
-
Shaoxing Concrete Curing Resin Dry Grinding Discs, Sharp and Durable, Available in Sizes From 50 to 1500#, Complete Specifications, Source FactoryUS$ 2.58 - 3.23MOQ: 12 Pieces
-
Hefei Floor Curing Resin Dry Grinding Discs, High Efficiency and Cost Reduction, Available in 50 - 1500# Specifications, Direct From the SourceUS$ 2.58 - 3.15MOQ: 12 Pieces
-
Rental of Qingbi 850 Concrete Floor Curing and Grinding Machine, Rental of 12-head Floor GrinderUS$ 23.08 - 33.85MOQ: 1
800 Penetrating Curing Floor Grinder/Floor Grinder/Floor Sander Details Description
Product Introduction:

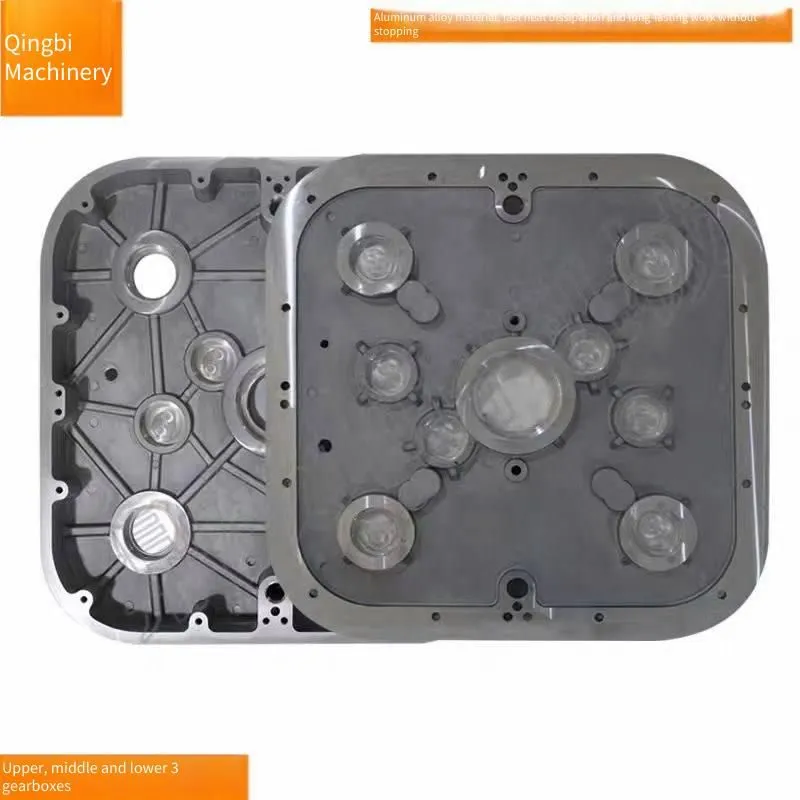

* It uses an aluminum alloy/cast iron gearbox, which has a long service life, high precision, and good heat dissipation performance. The gears are processed by gear grinding to ensure the smooth operation and noiselessness of the machine.

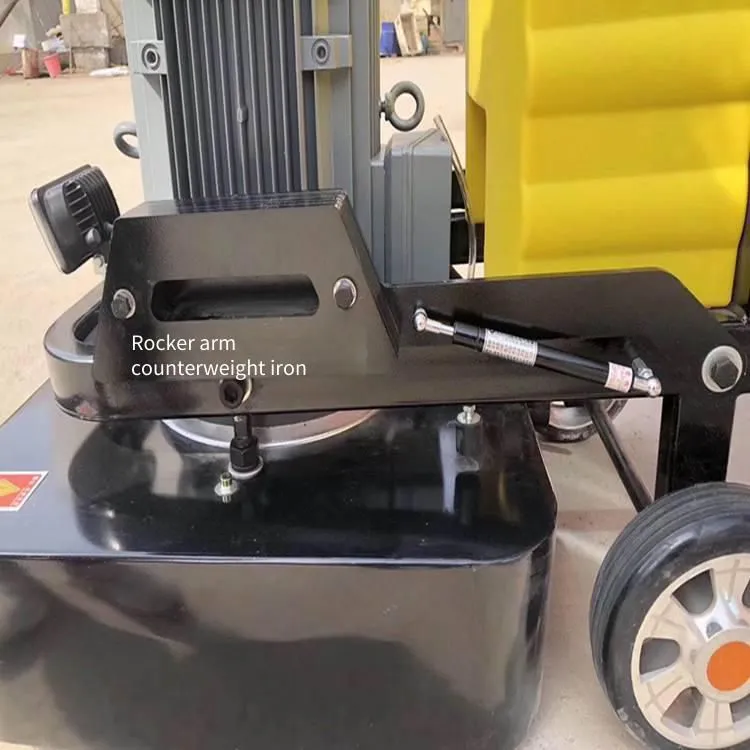

* The appearance design is novel. It uses enlarged steel, which is sturdy and durable. The handle can be intelligently adjusted, designed according to the height of the human body, making the operation labor-saving and comfortable.

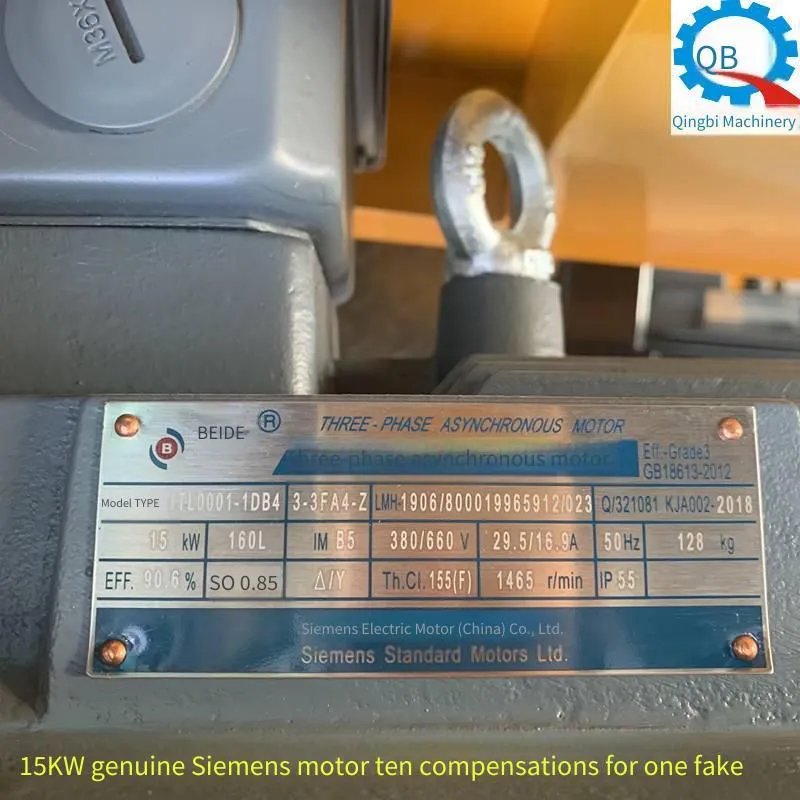

* Equipped with a high-power 15/20HP Siemens motor, and the electrical control components use imported Schneider Electric, ensuring strong power suitable for large-area construction. At the same time, it is equipped with LED headlights for night operation.

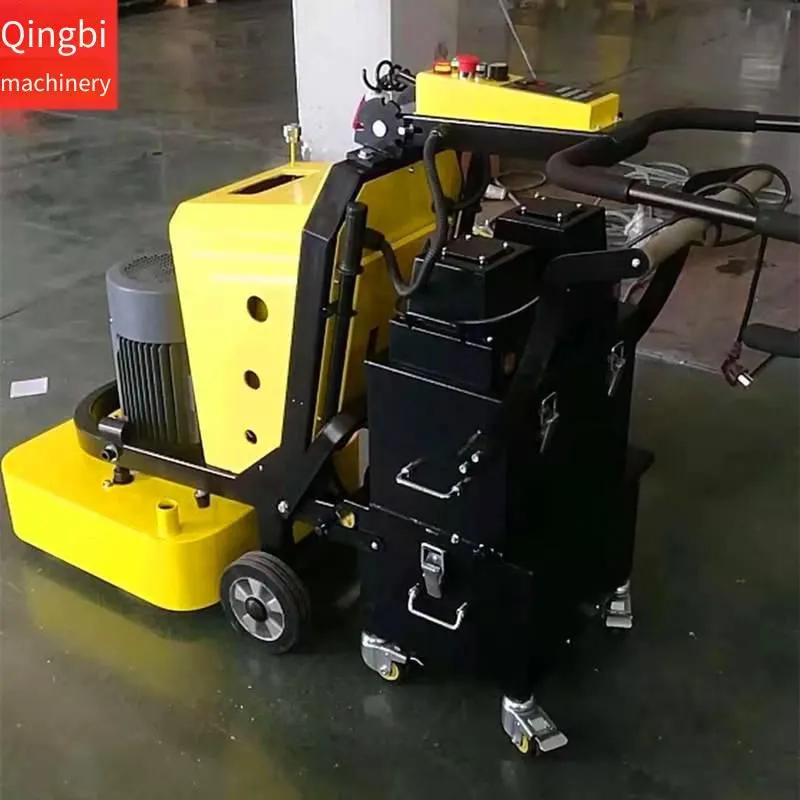

* One machine can be used for multiple purposes. The machine is equipped with 2 external dust suction interfaces, which can be used for both wet and dry operations, suitable for various construction environments.
* The design of the self-rotating and revolving gearbox ensures no missed grinding on the ground, guaranteeing the flatness of the ground being polished. Compared with the 700 grinders of other companies, it is more finely crafted, with high processing precision, good quality, excellent service, and more guarantees for after-sales!

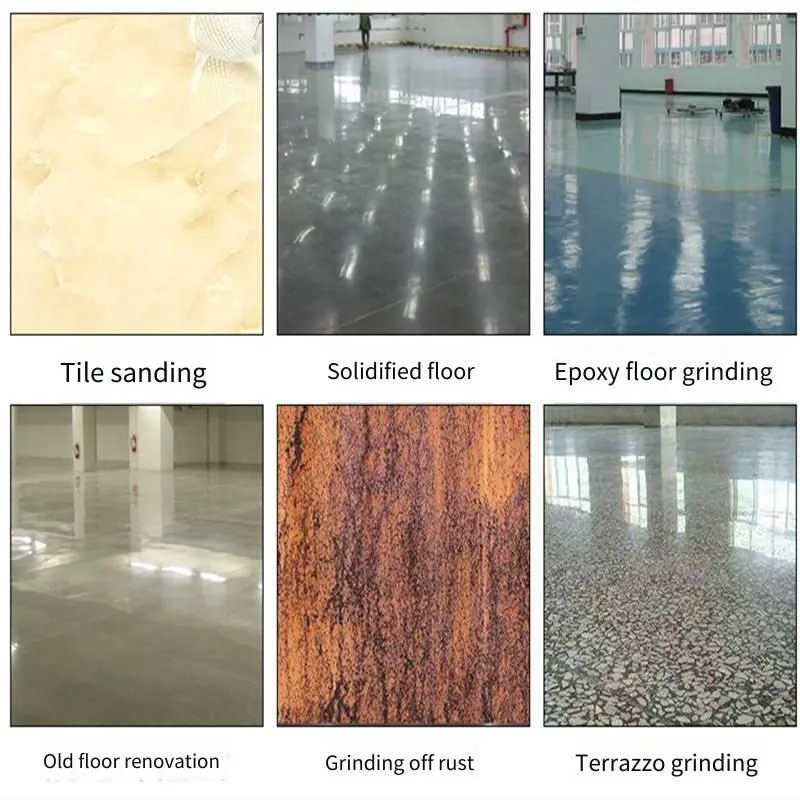

Application Scope:

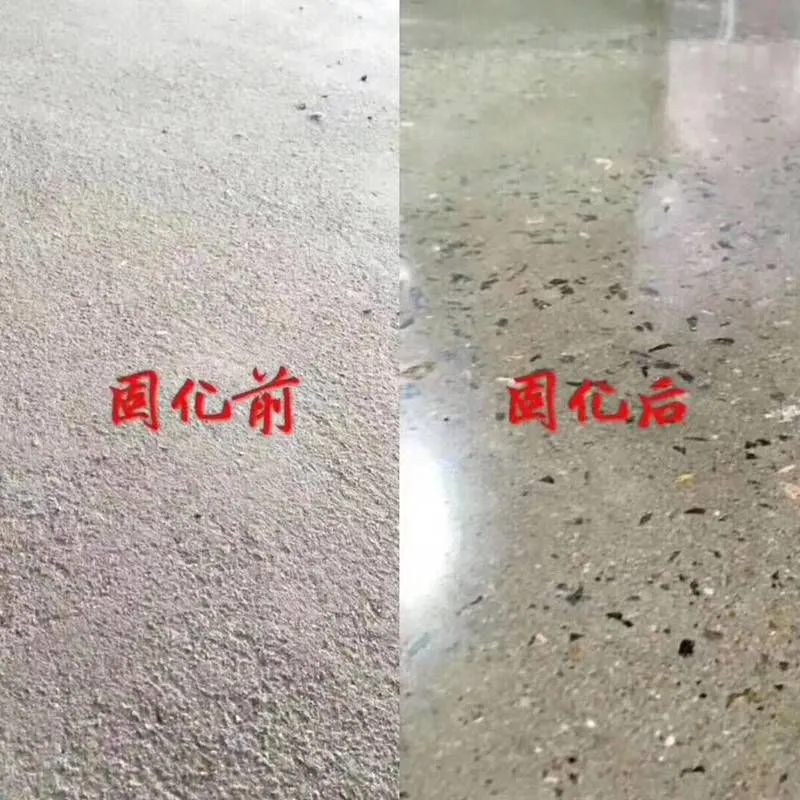

Stone renovation, integrated grinding and polishing of concrete hardeners, and can be equipped with alloy cutters for large-area removal and grinding of old epoxy and old paint floors.
Technical parameters: (QB-700 Grinder)
Working width |
700mm |
Horsepower |
15.0/20.0HP |
Voltage |
380V |
Rotation speed |
0-1500pm/min |
Water Tank |
40.0L |
Weight |
380.0kg |
Number of Discs |
4 Discs with 12 Abrasive Discs |
800Operation Instructions for the Floor Grinder:
1. Take the machine out of the packing box and place it flat on the ground.

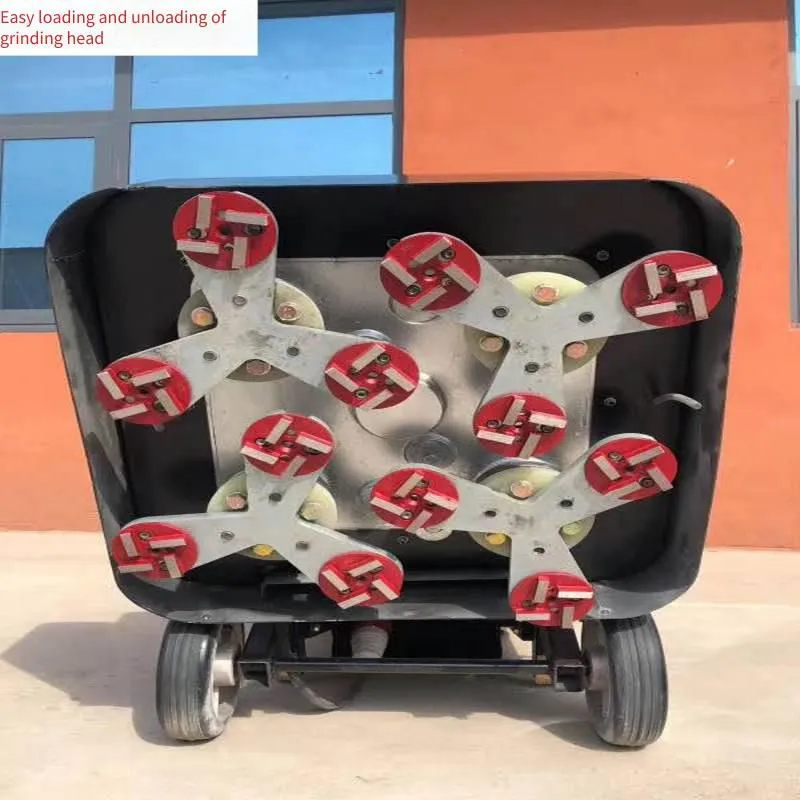

2. After the chassis is lifted, the chassis is exposed. Use diamond or resin abrasive discs according to the ground conditions. Install the grinding heads on the quincunx disc and fix them well, then adjust the outer skirt to a suitable position.
4. Place the machine flat, and the four discs will automatically adjust the flatness. The twelve grinding heads on the chassis ensure a flat surface.
5. Plug in the power supply, turn the switch to start the machine, and then adjust it to the required speed. At this time, the machine can operate normally.
6. After the machine is started, you can choose a suitable speed to push forward at a constant speed according to the ground strength and treatment effect.
7. Select dry grinding or wet grinding according to on-site requirements. Dry grinding requires an industrial vacuum cleaner.
8. In case of any abnormal phenomenon during operation, stop the machine immediately and restart it after inspection.
800Safety Precautions for the Grinder:
1. Operators must wear waterproof and insulated work shoes.
2. Before use, connect the machine power supply to the distribution box and ensure that there is leakage protection and overload protection in the distribution box.
3. Check whether the power cord is damaged or aged. If so, replace it immediately.
4. Select a national standard 3*4+1*2.5 square wire for the power cord and ensure that the power cord length does not exceed 100M.
5. It is strictly forbidden to start the machine while it is under pressure.
Warranty Statement:
All equipment, including the 800 Penetrating Curing Floor Grinder, Cement Floor Curing Grinder, Industrial Vacuum Cleaner, and Floor Grinder purchased from Shanghai Qingbi Industry Co., Ltd., is guaranteed for one year and maintained for life!
Company Introduction
Shanghai Qingbi Industry Co., Ltd. is located in the beautiful international metropolis - Shanghai in East China.Our company is mainly a professional enterprise engaged in the R & D, production and sales of floor grinders, curing grinding and polishing machines, steel plate rust removal equipment, floor milling machines, court scraping machines, road cutting machines, cleaning equipment, industrial vacuum cleaners, diamond grinding heads, resin grinding discs and other construction machinery. Our products are self - produced and self - sold with reasonable prices. To meet the needs of customers, we have now launched an equipment rental service. Welcome customers to call for consultation. We are sincerely recruiting agents nationwide.
Choose Shanghai Qingbi mechanical equipment and take your wealth to the next level!
