Introduction to Mucking Loader
Alternative Names: Excavating Loader, Tunnel Mucking Machine, Underground Slag Cleaning MachineCore Application: Integrated mechanized equipment for slag excavating, conveying and loading in confined underground construction scenarios
1. Product Overview
The mucking loader is a specialized underground engineering machine integrating excavating, conveying and loading functions, adopting full hydraulic pilot control and electric/diesel power systems. It replaces manual and semi-mechanized slag removal, realizing continuous, high-efficiency slag handling in narrow roadways, tunnels and mine shafts. With a compact structure and flexible operation, it is the core supporting equipment for modern tunnel boring and mine excavation, with slag removal efficiency 3-5 times higher than manual work.
2. Key Structural Features

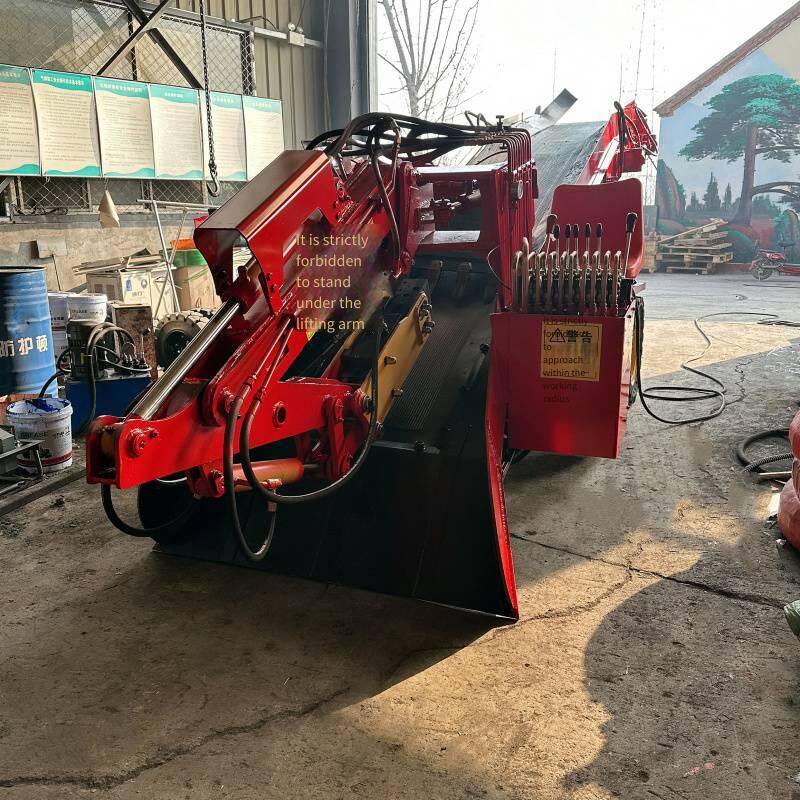

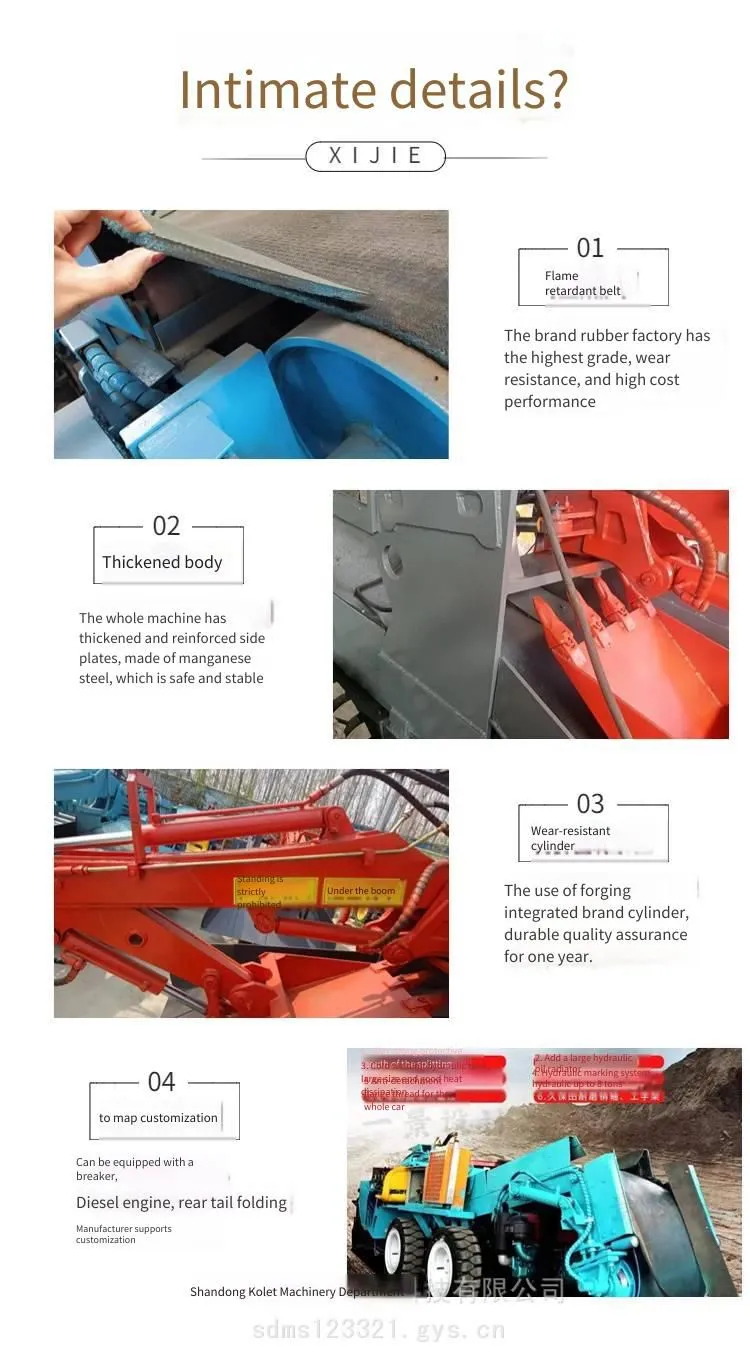

Excavating Mechanism: Hydraulic-driven scraper/rake arm, flexible angle adjustment, adaptive to bulk ore and construction slag;
Conveying System: Equipped with Grade 6 PVG flame-retardant and anti-static conveyor belt (compliant with MT914-2008 standard), featuring high wear resistance, low elongation and anti-tearing performance;

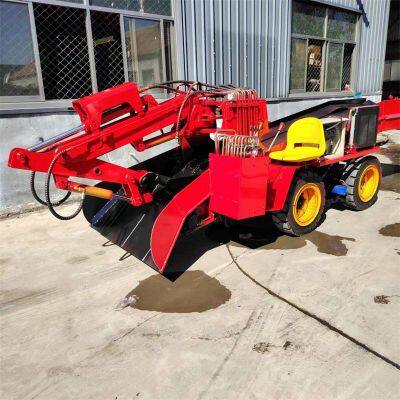

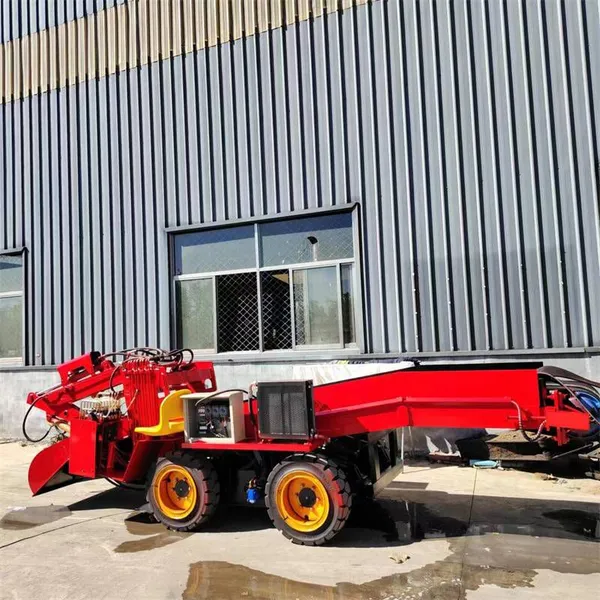

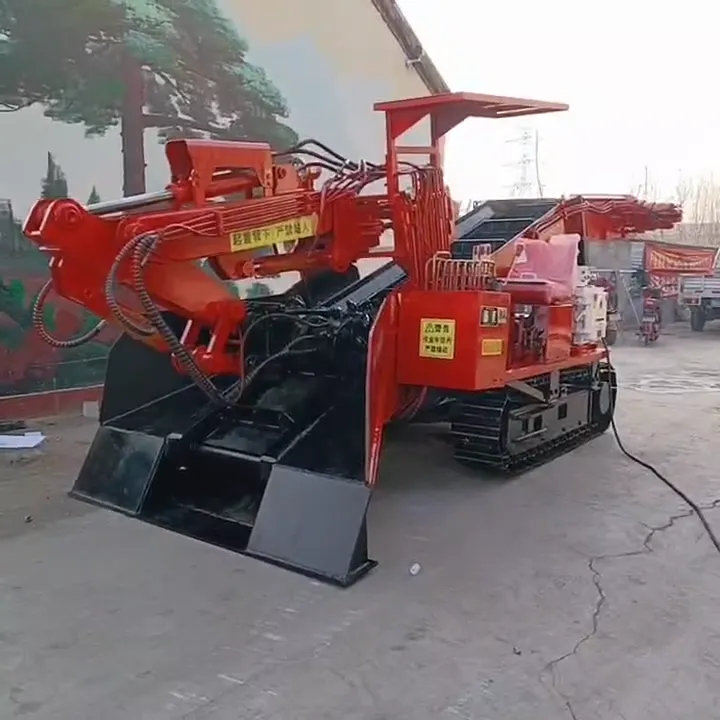

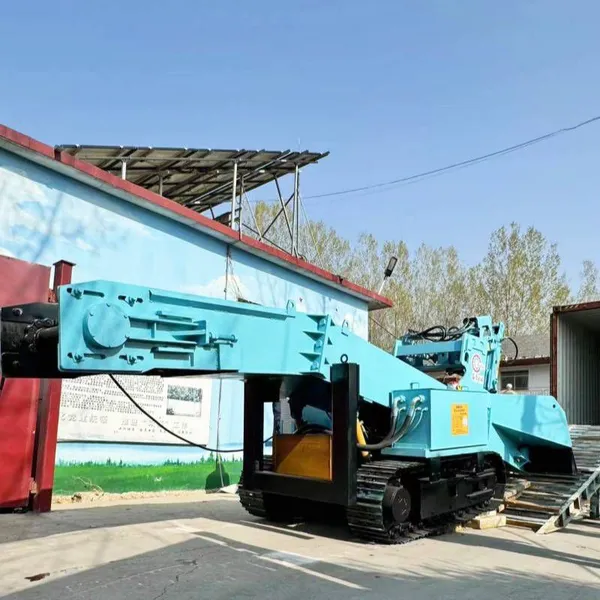

Traveling System: Optional wheeled (high mobility for flat roadways) or crawler (strong passability for complex road conditions) chassis;
Control System: Compact operating console, one-key start/stop, hydraulic overload protection and emergency shutdown device for safe operation;
Explosion-Proof Design (Mine Models): Explosion-proof motor, anti-static components, suitable for coal mines with gas and dust hazards.
3. Core Advantages
High Adaptability: Applicable to roadways/tunnels with a cross-section of ≥2.0m×2.0m, flexible turning and loading in confined spaces;
Efficient Operation: Slag handling capacity of 60-120m³/h (60/80 standard models), continuous operation without frequent shutdowns;
Safety & Reliability: Flame-retardant, anti-static and explosion-proof certifications, eliminating potential safety hazards in underground environments;
Low Maintenance Cost: Grade 6 wear-resistant conveyor belt extends service life by 30%-50%, modular structure for easy parts replacement;
Energy Saving: Electric-driven models feature low noise and zero emission, ideal for long-term underground construction.
4. Application Scenarios
Underground mines: Coal mines, metal mines, non-metal mines (slope/horizontal roadways);
Traffic tunnels: Highway, railway and subway shield/tunnel boring projects;
Municipal engineering: Urban underground pipe corridors, utility tunnels;
Water conservancy: Hydraulic tunnels, culvert excavation and slag cleaning.
5. Typical Technical Parameters (60 Model Standard)
| Item | Specification |
|---|---|
| Model | ZWY-60 |
| Slag Handling Capacity | 80-100m³/h |
| Applicable Roadway Cross-Section | ≥2.0m×2.0m |
| Conveyor Belt | Grade 6 PVG flame-retardant belt, width 600mm |
| Power | 30KW explosion-proof motor (mine type) |
| Traveling Speed | 1.2-2.5km/h |
| Chassis Type | Wheeled/Crawler |
| Safety Standard | MT914-2008, MA certification (mine models) |
6. Value Summary
As an essential mechanized slag removal equipment, the mucking loader greatly shortens construction periods, reduces labor input and improves underground operation safety. It is widely recognized in global underground engineering, mine construction and infrastructure projects, and can be customized with belt specifications, power systems and chassis types to meet diverse working condition requirements.
