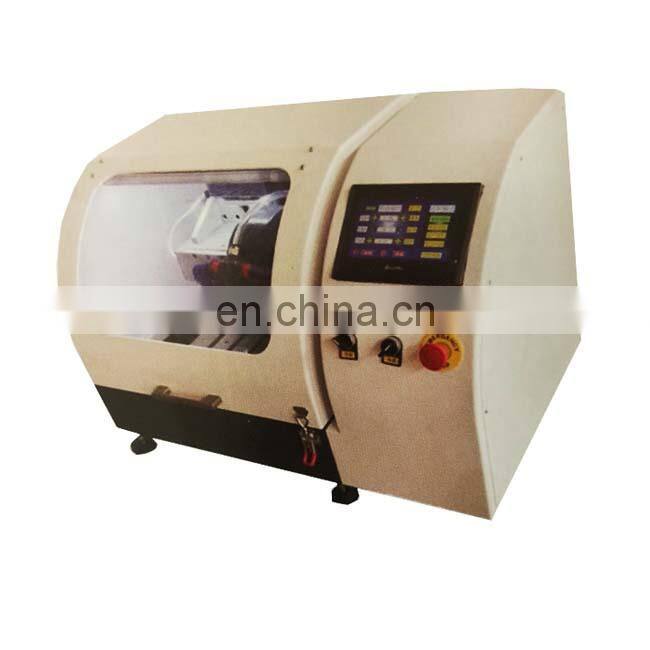

ZQ-50S automatic precision cutting machine
- 100 Unit / Units per Month
- Shenzhen
- T/T Credit Card
Product Details
Brand Name: | TTDCLS | Place of Origin: | Shaanxi, China |
Product Description
ZQ-50S automatic precision cutting machine
Introduction:
ZQ-50S intelligent precision automatic cutting machine is a precision cutting machine developed to meet the continuous multi-knife automatic slicing, continuous slotting and precision cutting. This machine adopts color touch screen and PLC control system, which is suitable for precision cutting of various metals such as conventional metal, super hard alloy, ceramic, glass, petrophase, crystal and electronic components.
Technical Parameters:
Model: ZQ-50S
Main functions: precise cutting, continuous slicing, deep-ditching and other functions
Spindle speed: 2000-12000r/min (stepless speed regulation)
Platform X moving range: automatic 70mm
X-axis speed: 0-200mm/min (stepless speed regulation)
Z axis travel: 70mm
Z axis speed: 0-200mm/min
Platform Y stroke: 70mm
Platform Y speed: 0-200mm/min (stepless speed regulation)
Control system: 8-inch color touch screen, PLC control system
Cutting diameter: 40mm in diameter
Cutting mode: vertical cutting, continuous cutting, horizontal cutting, interlocking cutting
Send method: Advance and retreat ratio is arbitrarily set
Effective feed distance: 70+100+70mm
Completion tracking: LCD digital display (displayed from time to time)
Cutting table size: 250X180mm stainless steel countertop
Cutting sheet specifications: (100-200) X (0.3-1) X32mm
Cutting speed: 1-200mm/min
Cooling system: automatic circulating water cooling
Water tank capacity: 40L
Motor power: 0.75KW
Power supply: 220V
Weight: 100KG
Dear customer : We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history. Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing,bioscience,medical apparatus and instruments,internet technology and some frontier science. Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials, full producing &processing equipments,strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba. We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance! |
