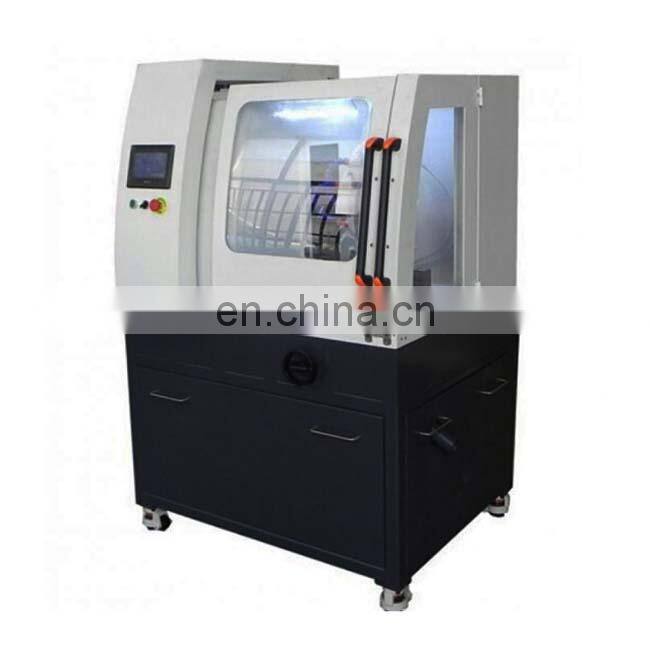

ZQ-300F automatic metallographic cutting machine
Introduction:
The ZQ-300F is a floor-standing straight-cut and track-type automatic metallographic cutter for cutting hard materials and large workpieces. In addition to suitable for profile cutting, it is especially suitable for the cutting of irregular parts and non-standard parts. It has many kinds of precision cutting functions such as metallographic sample cutting, slotting, thin flat sheeting and cutting, and is widely used in auto parts and casting. Sampling of workpieces such as bearings and discs.
Features:
1, intuitive touch screen panel, friendly operation of the face
2, spacious and transparent cutting room, sliding door and side door with safety lock
3. The grinding wheel is vertical, the table X and Y direction are automatically moved, the x table is used for continuous cutting parallel sections, and the Y table is used for cutting ultra-deep workpieces.
4, four cutting modes: vertical cutting, layered cutting, horizontal cutting, linkage cutting
5, large capacity circulating water tank, metal impurity magnetic separator
6, the cutting room is equipped with Led lighting strips
7. Emergency stop button. Meet safety standards
Technical Parameters:
Cutting chamber specifications: Left and right transparent large cutting chamber for long workpieces
Cutting mode: cutting, precision slicing, deep-grooving, etc.
Spindle speed: 100-3000r/min
Platform X moving range: Automatic movement 70mm
X axis moving speed: 0-100mm/min
Z axis travel: 200mm
Z axis moving speed: 0-200mm/min
Platform Y stroke: Automatic movement 200mm
Platform Y moving speed: 0-200mm/min
Control system: 8-inch color touch screen, PLC control system
Cutting capacity: Maximum diameter 120mm, disc cutting size: outer diameter 250* height 120mm
Cutting mode: vertical cutting, layer cutting, horizontal cutting, linkage cutting
Effective feed distance: 150+200mm
Completion tracking: LCD digital display (displayed from time to time)
Cutting table size: stainless steel table top 650X300mm
Cutting table: split double platform for lateral movement
Cutting sheet specifications: (300-380) X (2-3) X32mm
Cooling system: water cooled 4 channels with magnetic separation system
Water tank capacity: 80L
Motor power: 5.5KW (Siemens motor)
Power: 380V
Weight: 900KG
|
Dear customer : We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history. Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing,bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials, full producing &processing equipments,strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba. We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance! |
