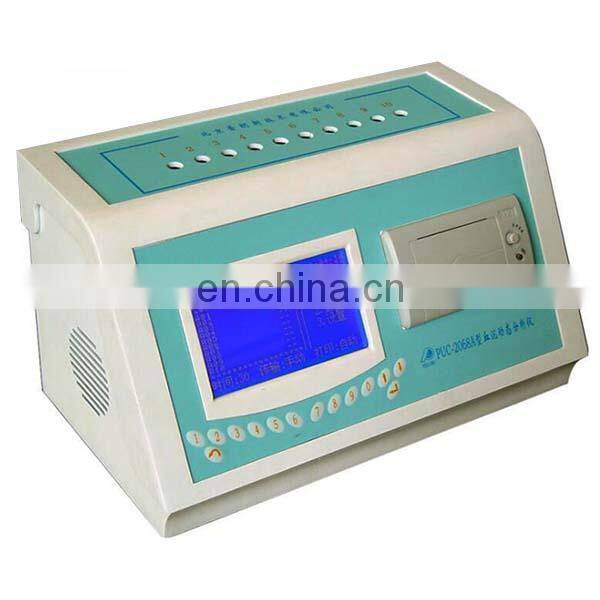

PUC-2068A Medical Dynamic Erythrocyte Sedimentation Rate Analyzer

PUC-2068A Medical Dynamic Erythrocyte sedimentation rate Analyzer

Instrument composition

The instrument is composed by the test host (infrared detection devices, computer control system, thermal printer) and the adapter power supply (SELV)

 Specifications

1) Detection range :0-140 mm / h (Westergren method result);

2) detection of Relevance: The results relative to the Westergren method of linear correlation coefficient

r ≥ 0.98;

3) test reproducibility: CV <3%;

4) The chassis temperature measurement accuracy: 15 °C -30 °C in the range of bias does not exceed

± 2.5 °C

 Main function

1) the sample means: a randomized into the sample position, ready for testing;

2) the resulting output: display and print the sample number (serial number), Wilcoxon method test results and the whole process of ESR curve, detection time and temperature; when the detection time 60 minutes, it can automatically calculate, display and print the Katz index;

3) The instrument has a select temperature compensation. When you select this function, it can at room temperature 18 °C -30 °C ESR correction based on test results corrected to 18 °C, the table values;

4) The instrument can store no less than 150 samples of test results, including sample number (serial number ), ESR values and dynamic curve;

5) power protection, power failure, automatically save the completed testing of the test results;

6) preparation of built-in thermal printer apparatus

7) Operation interface: membrane keyboard;

8) Communication interface: RS-232 serial interface
