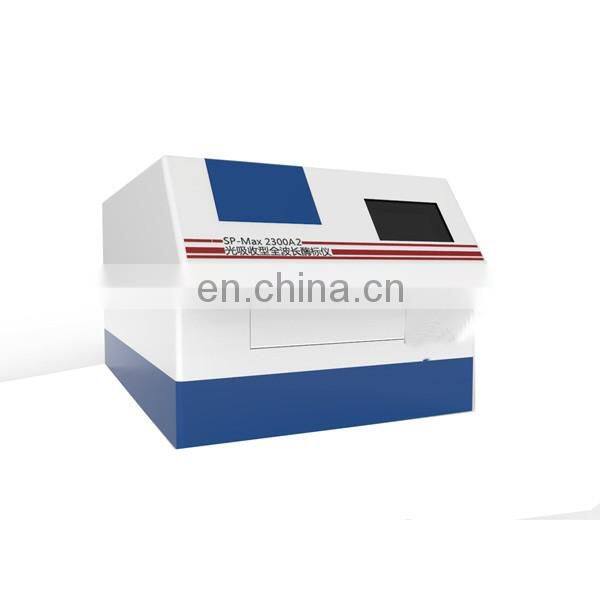

SP-Max2300A2 Light Absorbing Full Wavelength Microplate Reader

SP-Max 2300A2 light absorbing full wavelength microplate reader

Introduction

P-Max 2300A2 type light absorbing full wavelength microplate reader at source, detector, Wen Yuzhen board system, control workstation software performance are the US company Thermo Multiskan GO similar full wavelength reader is similar, with a powerful and cost-effective It is an ideal choice of biochemical laboratories.

Feature

1,using grating monochromator, the freedom to choose the wavelength selective filter is superior microplate reader;

2, the use of flashing xenon light source, a continuous spectrum, the light source powerful, wide measuring range;

3, using a standard micro cuvettes and cuvette conventional spectrophotometric detection, no additional purchase of a spectrophotometer;

4, the use of full-wave detector can be scanned in full-spectrum between 190-1100 nm;

5, Advanced Micro Devices compatible than cup color and ultra trace detection plate, perform ultra trace spectrophotometric analysis, saving valuable sample;

6, stored the protein, DNA / RNA quantitative analysis method, the equivalent of life sciences dedicated spectrophotometer;

7, having a bacterial count and the melting temperature prediction function, the kinetic parameters delta H, deltaS, delta G;

8, can be detected in the sample 6,24,96,384 well microplates can be used by different manufacturers microplates;

9, microplate absorbance of the sample can be corrected to a standard cuvette absorbance readings;

10, with an incubation function, accurate uniform heating, for temperature-sensitive detector;

11, with mixing shock features that make microplate sample is kept uniform;

12, inside the instrument with a reference light path, and can be obtained under different conditions to ensure stable detection results;

13, you can use a dedicated high-speed multi-cuvette analysis component, high-speed analysis;

14, high frequency sampling, sampling dynamics up to 50 times / s;

15, has a fast reading capability, we can finish within 96 seconds of reading;

16, with a USB data interfaces for instrument control and experimental data;

17, it has a high performance workstation software, with curve fitting, quantitative analysis, custom equations and other data analysis;

18, analysis of data can be exported to EXCEL, JPEG, PDF files, data recording and sharing;

Technical Parameters:

 1 wavelength range: 200 ~ 850nm;

2, wavelength selection: grating monochromator, 1.0nm step;

3, the wavelength of the bandwidth: 2nm;

4, wavelength accuracy: less than 0.2nm;

5, the reading range: 0 ~ 4.0Abs;

6 Incubate range: RT + 1 ℃ ~ 65 ℃;

7, the sampling frequency: 50 times / s;

8, linear range: 0 ~ 2.5Abs;

9, precision: CV <0.5% (precision mode);

10, power supply: 100 ~ 240V, 50-60HZ;

11, DNA / RNA quantitation and purity analysis;

12, protein quantitation and purity analysis;

13, activity detection;

14, dynamic testing;

15, ELISA detection;

16, cell proliferation and cell toxicity testing;

17, apoptosis detection;

18, reporter gene assay;

19, GPCR detection;

20, Endotoxin LAL analysis;

21, bacterial microbial detection;

22, analysis of the drug is dissolved;
