MD-820B Automatic Visual Perimeter Instrument

Features

The product of MD-820 Auto Perimeter is the crystallization of toil and moil of hundreds researchers and clinical doctors. It is their creativities and industries that make the product survive vividly in the competitive market.

The goal of the product

      Clinical practicality, Superior function & Understandable report

      Accurate, stable & economical

      Configuration of the perimeter: computer, printer, table and main unit of the perimeter

Specifications

      Type: Hemispherical Bowl Type (Radius 300 mm)

      Stimulus Size: Φ2mm

      Stimulus light source: LED

      MD-820 Measuring Area

1. 10° stimulus (62 point), red

2. 30° stimulus (76 point), (wave 585nm)

3. 30° ~ 60°stimulus (60 point), (wave 585nm)

4. 60° stimulus (76 point), (wave 585nm)

5. Glaucomatous sensitive damage area, (Nasal step), on left and right side of stimulus (16 point), (wave 585nm)

6. 60° ~ 90° each side of stimulus 11 points, (wave 585nm)

        Total point 256 (including blind spot detection)

        Stimulus Intensity: 0.5 ~ 318nt (1.6 ~ 1000asb)

        Stimulus Duration: 0.1sec, 0.2sec, 0.5sec

        Stimulus Interval: 0.5sec, 1.0sec, 2.0sec

      MD-820 patient fixation monitoring

Type 1    blind spot monitoring, warning for non-fixation

Type 2    blind spot monitoring, warning, image and sound indication for non-fixation

Voice indication and guidance, guide patient to be detected correctly

In order to enhance the reliability, the technician can choose special point for reexamination

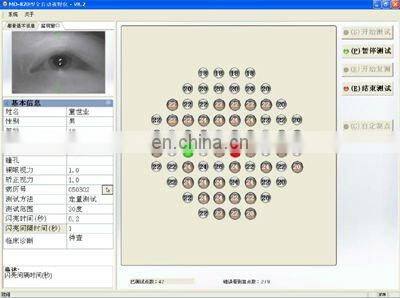

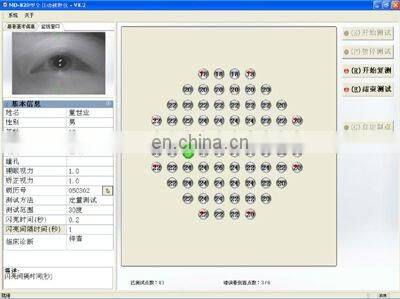

        Test Reports

1. Digital graph

2. Two-Dimensions (Gray-scale) graph: 10°, 30°, 30° ~ 60°

3. Symbol graph, quantitive test report

4. MS, MD, Total loss, Average loss, Blind spot detection, corrected probability

Statistical Analysis (T-test) available besides statistical graph
