RunGel A Real Time Electrophoresis Apparatus

RunGel -A real-time Electrophoresis apparatus

Introduction

RunGel real-time detection electrophoresis was applied in onventional nucleic acid

gel electrophoresis separation;Suitable for realtime gel electrophoresis;Suitable for rapid DNA fragment scanning and screening;Suitable for quick and easy nucleic acid fragment recycling.

Features
High resolution, real-time observation of the nucleic acid gel electrophoresis process;
High recovery rate, can direct recovery of DNA fragments, omit artificial cut rubber and rubber recycling purification process;
Only fragments by ethanol precipitation can be recovery in the downstream test;
Blue LED light source to replace the traditional uv light, safe environmental protection, no damage to the human body;
Wide application, can be used to observe dyeing such as recycling, EB, SYBR SAFE nucleic acid samples.

Technical parameters

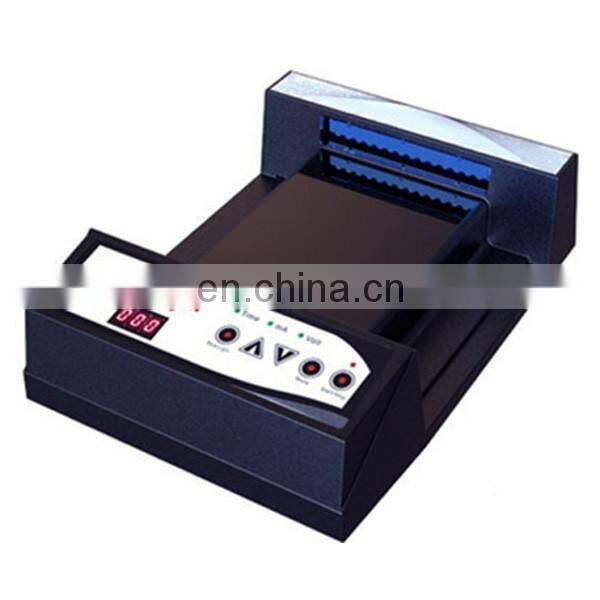

(A) observation device:
1. Operating modes: constant voltage or constant current.
2. Voltage range: 25-150 V;
3. The voltage resolution: 1 v.
4. Current: 300 mA;
5. The current resolution: 1 mA;
6. Power is: 45 W;
7. Blue LED excitation light source: 470 nm;
8. The timer: 1-999 minutes, there is alarm;
9. Operating temperature: room temperature  40 ℃;
10. Size: 293 * 220 * 80 mm;
11. Working voltage: 100-240 v, 50/60 hz.
(B) electrophoresis device:

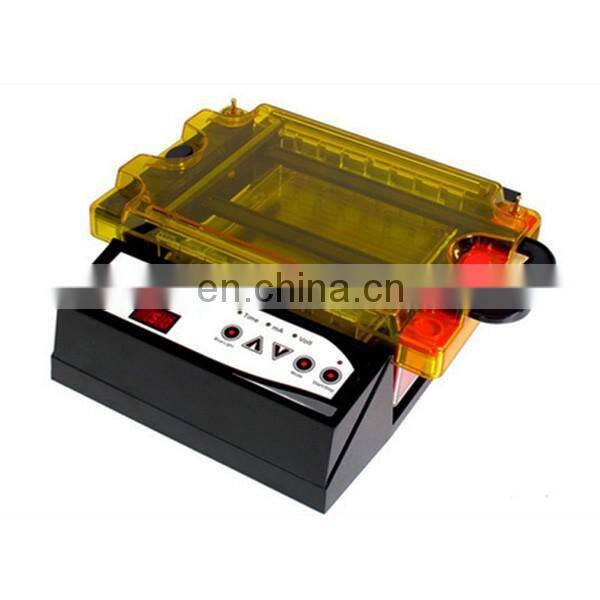

1. Observe the cover design: orange spectral filter used in the dyeing samples such as observation SAFE or red spectral filter is used to observe the EB dyeing samples;
2. Gel size (W * L) : 12 *12, 12 * 6, 6 * 12, 6 * 6 cm;
3. The electrophoresis tank size (W * D * H) : 26.5 * 17.5 * 9 cm;
4. The buffer capacity: 500 ml.
Four, product configuration:

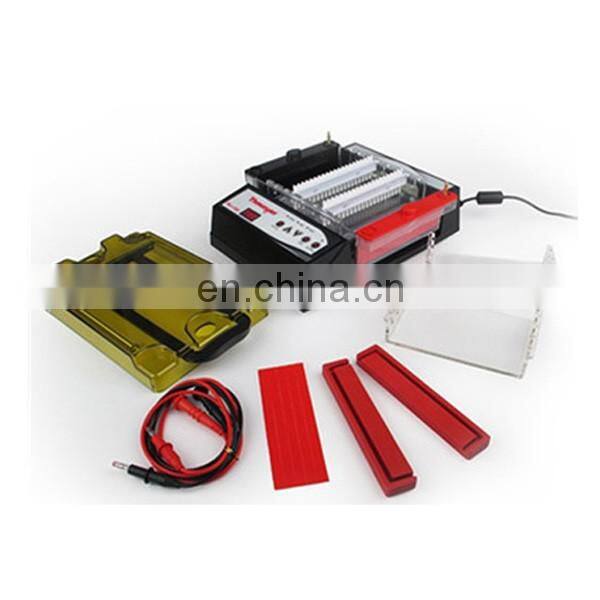

RunGel system (equipped with orange spectral filter), 12 x 12 cm plastic tray, 12 x 6 cm plastic tray, 6 x 12 cm plastic tray, 6 x 6 cm plastic plate and comb 1 set.
Five, the fragments of nucleic acid recovery process:
1. The system of glue: use a standard preparation electrophoresis of tooth comb to make 2 lines matching hole, a row of holes for "the hole", another hole to hole "recycling";
2. Transfer through the blue rubber sheet to electrophoresis groove, the electrophoresis tank on the base;
3. Add enough buffer to cover gel, remove tooth comb electrophoresis, the DNA sample on to the top of the sample holes;
4. Cover the electrophoresis tank lid, connect the power cord, switch on, open the blue light transmission light source;
5. By real-time observation of nucleic acid electrophoresis tank cover migration;
6. When nucleic acid stripe migration into the recycling hole, turn off the power supply, open the electrophoresis tank cover, the recovery of DNA fragments by pipetting gun directly.
