LuxScan HT24 Microarray Chip Scanner
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | BOAO | Place of Origin | Shaanxi, China | |
| Model Number | LuxScan HT24 |
Product Description

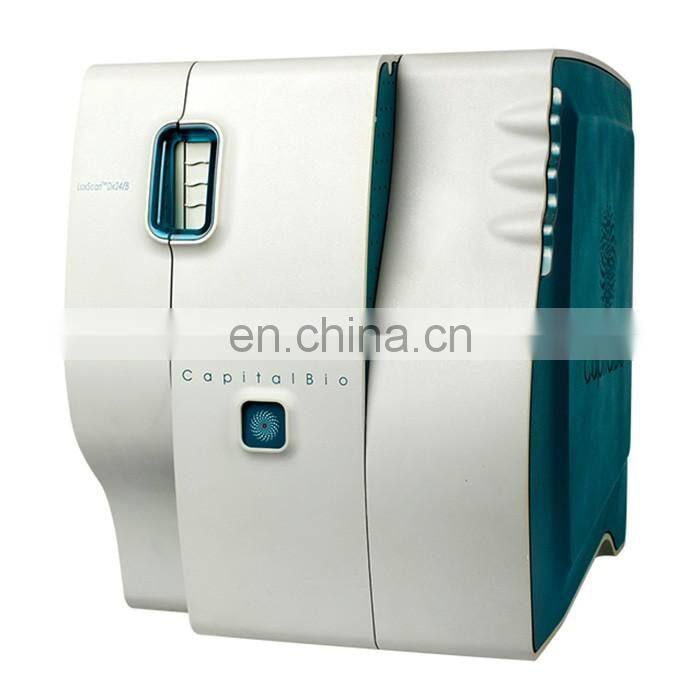

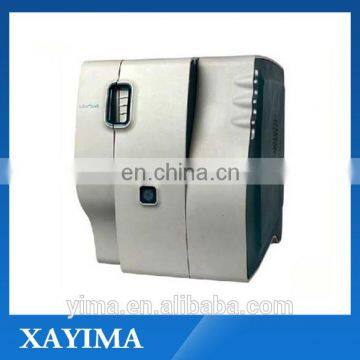

LuxScan HT24 Microarray Scanner
Introduction
The LuxScan HT24 is our new generation fully automated microarray scanner providing higher throughput (1 – 24 slides) as well as greatly improved spot detection performance. With a new compact optical system and high-speed signal processing. The LuxScan HT24 is highly sensitive and accurate, with a linear signal detection response over a wide dynamic range. The LuxScan HT24 also integrates a barcode reader with optional uses. The chip cartridge is newly designed to provide much more reliable mechanical protection for the chip surface.
The LuxScan HT24 also comes with powerful fully integrated imaging options and applications. The integrated SpotPro application software also has a simpler configuration, and can provide an interface for user-based development. Users can design their own tools for image analysis and data processing, and embed it in standard formats like .dll, .com into the application software.
Key Features
1.Proprietary loading design which reduces the frequency of slide jamming
2.24-slide batch scanning
3.Sequential scanning, without cross-talk between the channels
4.Auto channel balancing reduces the trouble and bias of manual intervention
5.In built universal barcode reader automatically acquires chip information or assay specifications
Specifications
Features | Parameters |
Chip Formats | (75.5±0.5) × (25.5±0.5) × (1.0±0.1)mm |
Maximum Scan Area | 72mm × 22mm |
Excitation Wavelength | 532nm and 635nm and/or 473nm |
Emission Wavelength | 570±10nm,675±10nm,530±10nm(optional);up to 6 types |
Applicable Fluorescence Dyes | Cy3, Alexa 555, Cy5, Alexa 647, FITC, etc. |
Scan Resolution | User selectable: 5, 10, 20, 40μm |
Sensitivity | 0.1 chromophores/μm2 (cpsm) (Cy3) |
Scan Speed | 25s per cm2 at 10 micron pixel resolution |
Dynamic Range | 4 orders of magnitude (16 bit) |
Repeatability | ≥95%, CV≤10% |
Uniformity | ≥90% |
Laser Power Settings | 1 ~ 100% continuously adjustable |
PMT Adjustment | 450 ~ 950 continuously adjustable |
Focus Distance | 4.5 ± 0.5mm |
Image File Format | TIFF, BMP, JPG, PNG, RAW |
Voltage | AC 85V ~ 264V/47V~ 63V |
Power | 75 Watts |
Size (W × D × H) | 380mm × 580mm × 500mm |
Weight | 40kg (88lb) |
Operating System | PC with MS Windows? 2000, XP, Vista, 7 (32 bit) |
Connection | USB 2.0 |
Autoloader | 24-slide carousel |
Barcode Reader | In-built |
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance!
