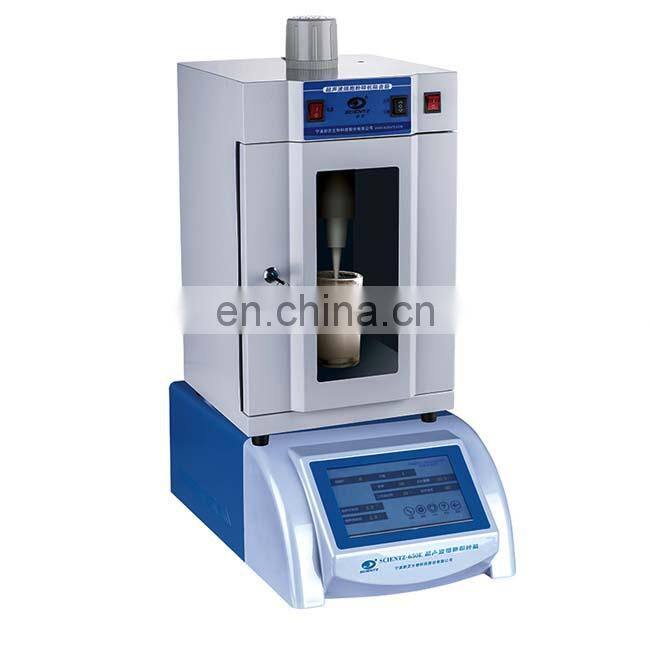

Scientz-1200E Ultrasonic Cell Crusher

scientz-1200E ultrasonic cell crusher

Introduction:

Ultrasonic cell pulverizer (also called ultrasonic breaker, ultrasonic emulsifier) is a versatile and versatile instrument that uses ultrasonic waves to generate cavitation effects in liquids; it can be used in a variety of cells, bacteria, viruses, and animal and plant tissues. It can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, preparation of nanomaterials, dispersion and accelerated chemical reaction. It is widely used in teaching, research and production in the fields of biology, medicine, agronomy, chemistry, materials science and pharmaceuticals.

Application areas:

Life sciences: lysis, fragmentation, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation for bacteria, viruses, spores and other cellular structures.

Material Chemistry: Dispersion, cracking, homogenization of soil, rock samples, non-ferrous metals, rare earths and other particles of nanomaterials such as carbon nanotubes and graphene, cracking, emulsification, homogenization and fragmentation.

It can also be used for dispersion and extraction of Chinese herbal medicine. It can be used for dispersion, emulsification, homogenization and accelerated reaction of other samples. It is also suitable for sample preparation in chemical, medical, archaeological, geological, marine and other fields.

Features:

1. Combined with microcomputer control, using DSP plus ARM technology, the performance is more stable and the data is more accurate;

2. With frequency selection, temperature measurement, automatic frequency tracking, impedance adaptation, protection and other functions;

3. With wireless or RJ-45 interface, it can communicate with the host computer, network control, remote printing;

4. Gap/continuous working mode, pulse 0.1-99.9s adjustable;

5. Data storage 20 groups, with user password login protection;

6.7-inch TFT large screen displays temperature, power, amplitude and pulse mode and work/gap time, etc., touch control;

7. With self-diagnosis function, program automatic error correction, overload protection, over-temperature protection display;

8. The soundproof box adds functions such as illumination, sterilization, automatic lifting, door lock, etc. The soundproof box can be placed on the main unit to save space.

Technical Parameters:

Output power: 50-1200W adjustable

Working frequency: 20-25KHz automatic tracking, adaptive

Processing volume: 50-1200ml (requires matching probe)

Timing: 0-999min can be set (up to 999h)

Temperature control: equipped with temperature sensor to control sample temperature (0°C-100°C)

Alarm: Temperature, time, failure

Sound box: Automatic soundproof box outer size width * depth * height: 350 * 345 * 545mm one, with electric lifting device inside

Standard configuration: one generator (host)

Sealed transducer

Φ20mm standard probe (breaking amount 200ml-800ml)

Software set

Optional horn: Φ15, Φ25

Optional cooling cup: 100ml, 400ml
