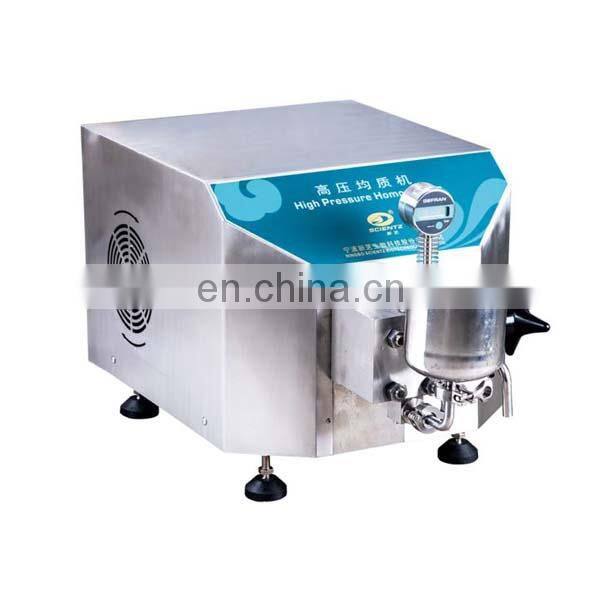

Scientz-150 experimental high pressure homogenizer

Scientz-150 experimental high pressure homogenizer

Introduction:

The high-pressure homogenizer uses the material to enter the valve group with adjustable pressure under the special plunger. After a certain width of the current-limiting slit (working area), the material with instantaneous loss of pressure has a very high flow rate (1000-1500m). /s) Squirting, colliding on the impact ring of one of the crash valve assemblies, producing three effects: cavitation, impact, shear. After these three effects have been treated, the particle size of the material can be uniformly refined to below 100 nm. The breaking rate is greater than 95%. It can be used for the treatment of fermenter samples. It is mainly used for the treatment of Escherichia coli and yeast in bioengineering laboratories and pharmaceutical factories. Samples such as bacteria are standard equipment for research and development and production in bioengineering and biopharmaceutical industries. They can be used for emulsification, homogenization and homogenization in dairy, food and beverage, juice, pharmaceutical, biological and other industries. This machine has a built-in cooling circulation system, which directly cools the homogenizing head. All the contact material pipes are evenly made of 316L stainless steel. Optional secondary homogenization module and optional homogenizing valve for different applications.

The key components imported are selected, which have the characteristics of high pressure, small volume, convenient operation, high processing efficiency and large sample output.

Technical Parameters:

Maximum working pressure: 1200bar/120Mpa/17400PSi

Maximum design pressure: 1500bar/150Mpa/21750PSi

Maximum processing capacity: 12L/h, 25L/h

Minimum throughput: 30 ml

Cooling: Built-in cooler

Motor power: 1.5KW/380V/50Hz

Dimensions: L800*W460*H450 mm

Weight: 120 Kg
