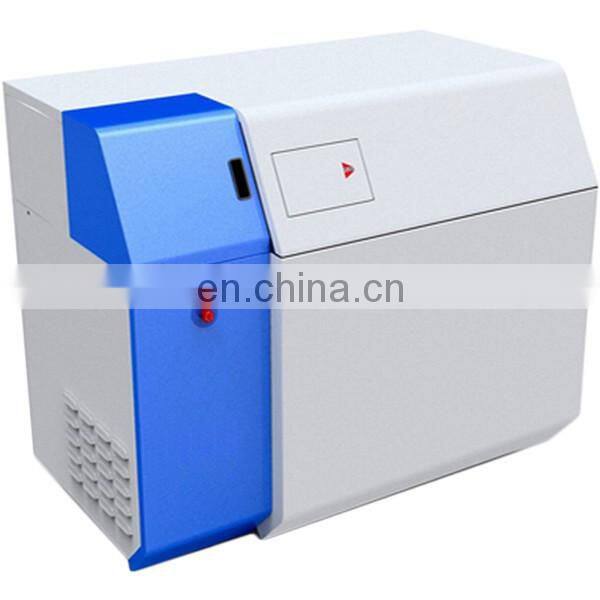

Labspark 1000(A) spark direct reading spectrometer

Labspark 1000(A) spark direct reading spectrometer

Brief introduction

Widely used in metallurgy, casting, machinery, metal processing and other manufacturing process control, Front laboratory , central laboratory product testing, can be used for Fe, Al, Cu, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag , and other metals and their alloys sample analysis , good stability , low detection limits , rapid analysis , low running costs , easy maintenance, strong anti-jamming capability.

Features

1 excitation energy , the frequency is continuously adjustable digital solid-state light source , adapt to a variety of different materials
2 -one lens isolation valves to prevent light room for routine maintenance caused by pollution intensity decreased , the lens is easy to replace
3 Cast -ray room , a low coefficient of thermal expansion , assurance requirements vacuum
4 using the original metal -situ analyzers key technologies - single discharge acquisition analysis technology

5 of the world 's first multi-channel automatic synchronization tracing instrument stability
6. delay integration technology , the gaps, the world's leading , different channels with different integration start time
7 copper spark Taiwan base, increase heat resistance and ruggedness
8 Pine detection Li, Na, K and other elements, and short-wavelength long wave element or serious interference elements, such as N, P, S, B, Sb , etc.
9 solid adsorption trap to prevent light pollution and gas chambers to improve the long-term operation stability

10. weight about 400Kg

Technical parameters

1. Ba Xing - Long framework law , a focal length of 750 mm grating
2. high luminous holographic grating, engraved lines for 2400 / mm
3. spectral range : 120 ~ 800 nm
4. dispersion rate
A dispersion rate : 0.55 nm / mm
Two dispersion rate : 0.275 nm / mm

5 Resolution : better than 0.01 nm
6 The maximum number of detection channels : 48
7.16 A / D conversion microprocessor
8. 220V single phase 16A 2.5KVA
9 width × depth × height (139cm × 80cm × 117cm)
10. weight about 400Kg
